X12DPT-PT6, CSV-827HQ+-R2K20BP2, BPN-ADP-6SATA3P

SKU:	SYS-620TP-HTTR
Brand:	Supermicro
Produktnotat:	For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 74 715,00 74715.0 NOK kr 74 715,00 Ekskl. mva

kr 74 715,00 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

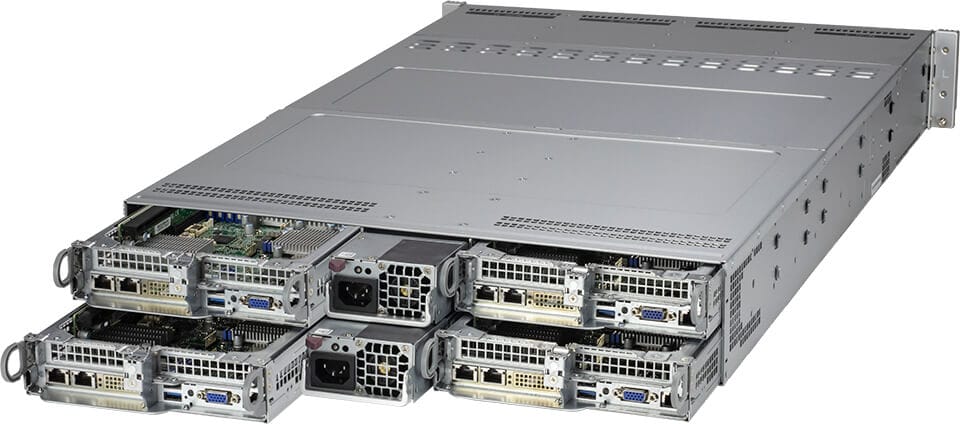

The Supermicro SYS-620TP-HTTR is a high-performance 2U rackmount server designed for intensive computational tasks. It features dual socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors, Intel® C621A Chipset, and up to 4TB ECC DDR4 memory, making it an ideal choice for demanding applications like High Performance Computing and Big Data.

Nøkkelfunksjoner

Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
Intel® C621A Chipset
16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
2 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
Intel® X710 Dual port 10GBase-T LAN onboard
3x 3.5" hot-swap SATA drive bays
4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
Two 2200W redundant power supplies with PMBus
SATA (6Gbps); 3 slots per node; RAID 0, 1, 5 support.ASPEED AST2600 BMC, 2 USB, VGA. RoT

Viktige bruksområder

High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

Beskrivelse

The Supermicro SYS-620TP-HTTR is engineered for maximum efficiency and performance in a 2U rackmount form factor. Key highlights include dual socket P+ 3rd Generation Intel® Xeon® Scalable Processors, Intel® C621A Chipset, support for 16 DIMMs up to 4TB ECC DDR4 memory, and a variety of high-speed network and storage options. This server is tailored for high-performance computing, hyper-converged infrastructure, and big science applications, ensuring robust and reliable operation under demanding conditions.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-620TP-HTTR
Motherboard
Installed Motherboard	Super X12DPT-PT6
Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache per CPU
Note	Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Memory Voltage	1.2V
On-Board Devices (per Node)
SATA	SATA (6Gbps)
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X710-AT2
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 Super DOM (Disk on Module) port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 5 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSV-827HQ+-R2K20BP4
Dimensions and Weight
Height	3.47" (88 mm)
Width	17.25" (438 mm)
Depth	30.5" (774 mm)
Package	10" (H) x 24.5" (W) x 45" (D)
Weight	Gross Weight: 90 lbs (40.9 kg) Net Weight: 72 lbs (32.7 kg)
Available Color	Black front & silver body
Front Panel
LED	Network activity LED Power status LED System information (overheat/UID) LED
Buttons	Power On/Off button UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default: 2 PCIe 4.0 x16 LP slots
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 3 bays: 3 front hot-swap 3.5" SATA drive bays
M.2
System Cooling
Fans	4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	4 Air Shrouds
Power Supply
1x 2200W Redundant Titanium Level (96%) power supply	Dimension (WxHxL): 76 x 40 x 336 mm AC Input: 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) +12V: Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) 5V SB: Max: 1A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
General
Standard Parts (Parts Included)

Standard Delliste

Part Number	Quantity	Description
Motherboard / Chassis
MBD-X12DPT-PT6	4	Super X12DPT-PT6 Motherboard
CSV-827HQ+-R2K20BP4	1	2U Chassis
Backplane
BPN-ADP-6SATA3P	4	Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
BPN-SAS3-827HQ3	1	2U 12-Slot 4-Node TwinPro Backplane Supports up to 3x3.5" SA
Cable
CBL-PWCD-0900	2	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Air Shroud
MCP-310-21732-0B	4	TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
Riser Card
RSC-P-6G4	4	1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
RSC-PR-6-X2	4	1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
Storage Controller Card
SCC-P2N2M2-P2	4	2x NVMe M.2 carrier up to 2280 for X12 Twinpro
Software
SFT-OOB-LIC	4	License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0077PM	4	X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
SNK-P0077V	4	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply
PWS-2K20A-1R	2	1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor
PDB-PT217-H2412	1	2U support redundancy input powers up to 2.6KW for Twin seri
*Fan
FAN-0162L4	4	80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
*Drive Tray(s)
MCP-220-00075-0B	12	Black gen 5.5 hot-swap 3.5" HDD tray
*Rail Set
MCP-290-00053-0N	1	Rail set, quick/quick, default for 2,3U 17.2"W
*Fan Holder
MCP-320-21701-0N	2	Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH

Valgfrie Opsjoner

Part Number	Quantity	Description
TPM security module (optional, not included)
AOM-TPM-9670H-O	1	SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
AOM-TPM-9671H-O	1	SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
VROC Premium
AOC-VROCPREMOD	1	Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard
AOC-VROCSTNMOD	1	Intel VROC Standard, RAID 0, 1, 10
