BigTwin 2U 2-Node, 6x3.5" SATA+NVMe, X13DET-B, 827BD2

SKU: SYS-621BT-DNTR
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10309/image_1920?unique=80bb10d

kr 66 037,66 66037.66 NOK kr 66 037,66 Ekskl. mva

kr 66 037,66 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-621BT-DNTR is a high-performance 2U Rackmount server designed for hyperconverged infrastructure, scale-out object storage, and back-up & recovery. It supports dual 5th/4th Gen Intel® Xeon® Scalable processors with up to 64 cores per node and up to 4TB of DDR5 ECC memory.

    Nøkkelfunksjoner

    • Socket E (LGA 4677) support 5th/4th Gen Intel® Xeon® Scalable processors
    • Intel® C741
    • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
    • Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard1 PCIe 5.0 x16 (LP) slot;2 PCIe 5.0 x8 (LP) slot;Tool-less supportOptional M.2 (22x80) HW RAID1 NVMe Boot Controller via SCC-A2NM2241G3-B1
    • Network connectivity via AIOM (OCP 3.0 compliant)

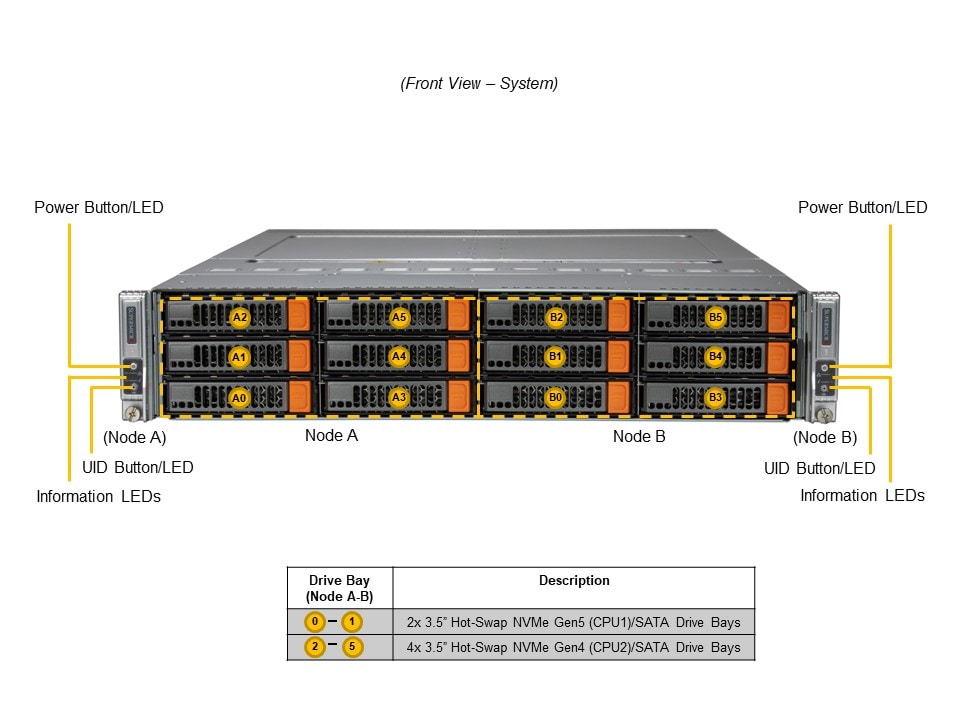

    • 6 Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVMe/SATA and 4x PCIe 4.0 NVMe/SATA)
    • Liquid Cooling Support4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
    • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

    Viktige bruksområder

    • Hyperconverged Infrastructure
    • Scale-Out Object Storage
    • Back-up & Recovery

    Beskrivelse

    The Supermicro SYS-621BT-DNTR is engineered to meet the demands of modern data centers and enterprise applications. Equipped with Intel® C741 chipset, it supports dual-socket E (LGA 4677) 5th and 4th Gen Intel® Xeon® Scalable processors with up to 64 cores and 320MB cache per CPU. This server offers 16 DIMM slots supporting up to 4TB DDR5-5600 ECC RDIMM, multiple PCIe expansion slots, and 6 hot-swap 3.5" drive bays with NVMe/SATA support. Advanced features include liquid cooling support, redundant 2200W Titanium level power supplies, comprehensive security features such as TPM 2.0 and secure boot, and extensive system management tools including SuperCloud Composer and Supermicro SuperDoctor® 5.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-621BT-DNTR
    Motherboard
    Installed Motherboard
    • Super X13DET-B
    Processor (per Node)
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
    Core Count
    • Up to 64C/128T; Up to 320MB Cache per CPU
    Note
    • Supports up to 300W TDP CPUs (Air Cooled)
    • Supports up to 350W TDP CPUs (Liquid Cooled)​
    GPU (per Node)
    Max GPU Count
    • Up to 1 double-width or 1 single-width GPU
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    On-Board Devices (per Node)
    Chipset
    • Intel® C741
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Gen2 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 8+4 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827BD2-R2K22P
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 30.5" (774 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 80.7 lbs (36.6 kg)
    • Net Weight: 55.1 lbs (25 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 LP slots
    • 1 PCIe 5.0 x16 LP slot

    M.2
    • 2 M.2 NVMe slots (M-key)
    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 2 front hot-swap 3.5" PCIe 5.0 NVMe/SATA drive bays
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe/SATA drive bays

    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
    Liquid Cooling
    • Direct to Chip (D2C) Cold Plate (optional)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
    • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
    • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
    • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
    • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
    • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
    • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
    Environmental / Recycling
    Recycle
    • Return Server-End of Life Product

    Valgfrie Opsjoner

    Part Number Quantity Description
    3.5-to-2.5" HDD Conversion Tray
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
    Cold Plate Module
    SNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    SNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution Manifolds
    SRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    SRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    LCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution Unit
    SRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    LCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    M.2 NVMe RAID Controller
    SCC-A2NM2241G3-B112x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x80mm M.2 (Qty per Node)
    SPI Capable TPM Options
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
