SKU: SYS-622BT-DNC8R
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 8 DIMMs are recommended per CPU). Minimum requirement is 1 CPU, 1 DIMM, 1 NIC, and 1 storage device per node

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10484/image_1920?unique=80bb10d

kr 71 079,81 71079.81 NOK kr 71 079,81 Ekskl. mva

kr 71 079,81 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-622BT-DNC8R offers a dual socket solution utilizing Intel® Xeon® 6 6700 series processors, with up to 16 DIMMs for 4TB DDR5-6400 memory, and flexible networking options. This 2U rackmount server is optimized for hyperconverged infrastructure, scale-out object storage, and back-up & recovery.

    Nøkkelfunksjoner

    • Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 250W with air cooling or 330W with liquid cooling
    • Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
    • Flexible networking with OCP 3.0 AIOM slot
    • Up to 2 PCIe 5.0 x8 LP + 1 PCIe 5.0 x16 LP slotsInternal PCIe 5.0 for 2x NVMe M.2 support onboardOptional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
    • Up to 6 front hot-swap 3.5" NVMe/SAS drive bays

    Viktige bruksområder

    • Hyperconverged Infrastructure
    • Scale-Out Object Storage
    • Back-up & Recovery

    Beskrivelse

    The Supermicro SYS-622BT-DNC8R is a high-performance 2U rackmount server featuring dual socket E2 Intel® Xeon® 6 6700 series processors with E-cores supporting up to 250W TDP with air cooling or 330W with liquid cooling. It supports up to 16 DIMMs for a maximum of 4TB DDR5-6400 memory. The server offers flexible networking with an OCP 3.0 AIOM slot, up to 6 front hot-swap NVMe/SAS drive bays, and multiple PCIe 5.0 slots. With advanced management tools, robust security features, and redundant power supplies, it is ideal for hyperconverged infrastructure, scale-out object storage, and back-up & recovery applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-622BT-DNC8R
    Motherboard
    Installed Motherboard
    • Super X14DBT-B
    Processor (per Node)
    CPU
    • Dual Socket E2 (LGA-4710)
    • Intel® Xeon® 6 6700 series processors with E-cores
    Core Count
    • Up to 144C/144T; Up to 108MB Cache per CPU
    Note
    • Supports up to 250W TDP CPUs (Air Cooled)*
    • Supports up to 330W TDP CPUs (Liquid Cooled)​
    • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
    On-Board Devices (per Node)
    SAS
    • SAS (12Gbps) via Broadcom® 3808; (IT mode)
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Gen2 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 8+4 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827BD2-R2K22P
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 30.5" (774 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 80.7 lbs (36.6 kg)
    • Net Weight: 55.1 lbs (25 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 LP slots
    • 1 PCIe 5.0 x16 LP slot
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

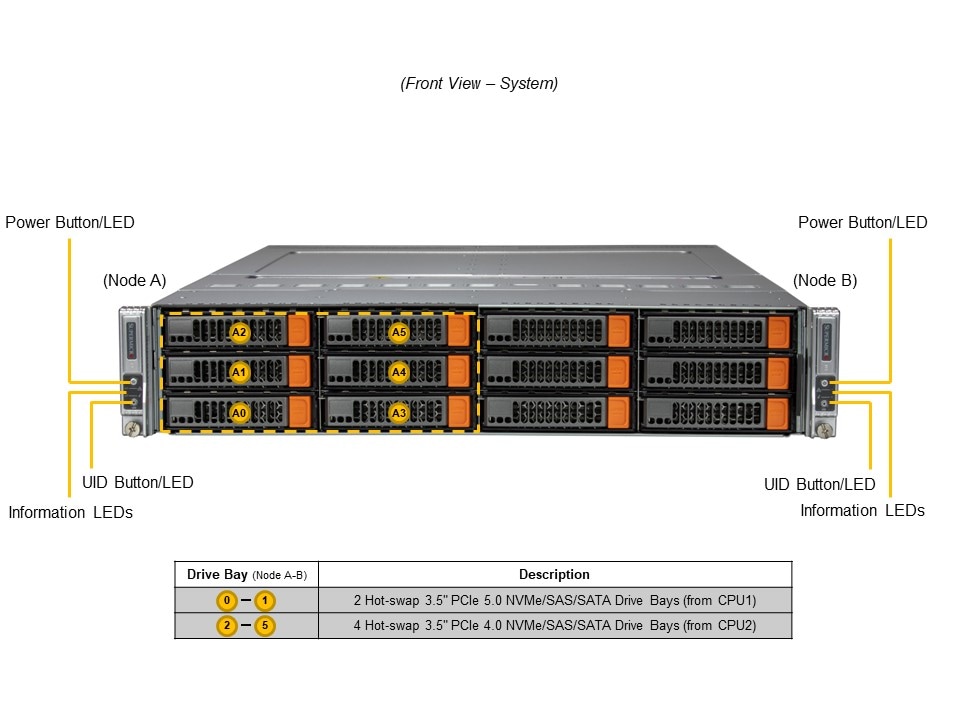

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 2 front hot-swap 3.5" PCIe 5.0 NVMe/SAS drive bays
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe/SAS drive bays

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 14.9K RPM Heavy Duty 80x80x38mm Fan(s)
    Liquid Cooling
    • Direct to Chip (D2C) Cold Plate (optional)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
    • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
    • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
    • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
    • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
    • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
    • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    3.5-to-2.5" HDD Conversion Tray
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
    Cold Plate Module
    SNK-P3050-ABT12x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
    SNK-P304212x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
    Coolant Distribution Manifolds
    SRK-00AS-CLIT-MF84SV-021CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
    SRK-00AS-CLIT-MF42SV-021CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
    LCS-SCDM-076V42001-ABT1Supermicro Coolant Manifolds (Qty per Rack)
    Coolant Distribution Unit
    SRK-00AS-CLIT-CH80V2-011CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
    LCS-SCDU-080L4001-ABT1Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
    M.2 NVMe RAID Controller
    SCC-A2NM2241G3-B1E12x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x100mm M.2 (Qty per Node)
    SCC-A2NM2241GH-B112x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)
    SPI Capable TPM Options
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
