  2. X11DPI-N-P, CSE-745BTS-R1K28BP2, 4U Tower Mainstream Server

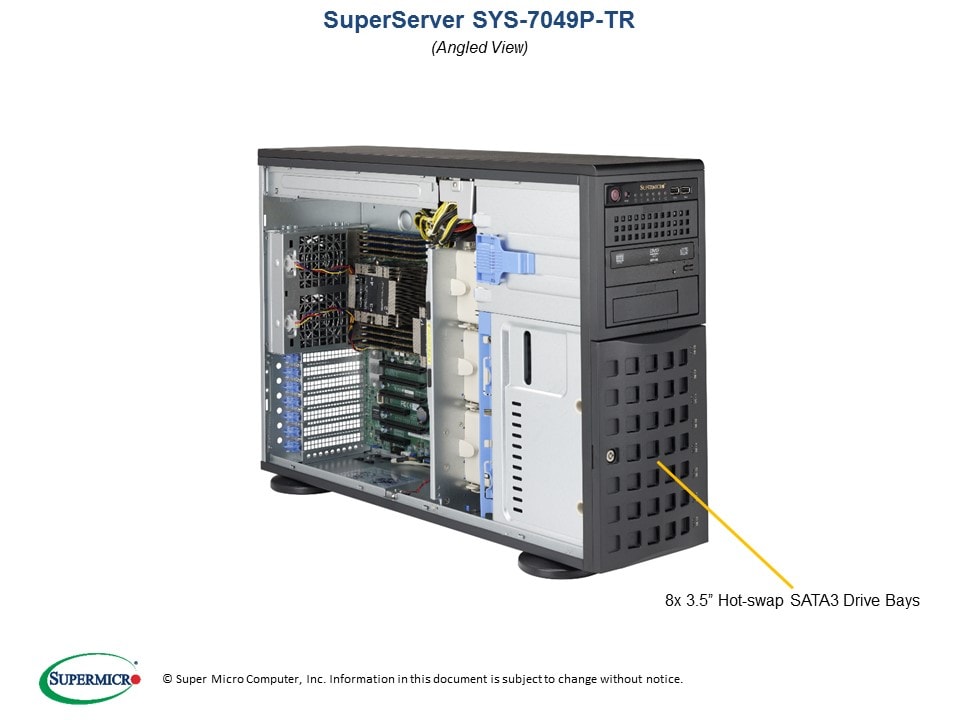

X11DPI-N-P, CSE-745BTS-R1K28BP2, 4U Tower Mainstream Server

SYS-7049P-TR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10618/image_1920?unique=f7d9088

kr 20 611,57 20611.57 NOK kr 20 611,57

kr 20 611,57

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-7049P-TR is a versatile 4U rackmount server designed for demanding data center and enterprise environments. It supports dual Intel Xeon Scalable processors, up to 4TB of high-speed DDR4 memory, and features advanced storage and networking capabilities.

    Key Features

    • • Cost Effective
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
    • 8 Hot-swap 2.5"/3.5" SATA3 (6Gbps) drive bays; RAID 0, 1, 5, 10
    • Optional DVD-ROM drive, optional support: 2 fixed 2.5" NVMe/SSD/HDD, 1 M.2 support
    • M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
    • 3 Peripheral 5.25" bays
    • 2x 1GbE LAN ports with Intel® X722
    • 1200W Redundant Power Supplies Titanium Level (Updated for 2021 Version)

    Key Applications

    • Data center operations
    • Enterprise applications
    • Virtualization
    • Cloud computing
    • Database management

    Description

    The Supermicro SYS-7049P-TR is engineered to deliver exceptional performance and reliability for intensive applications. With support for dual Intel Xeon Scalable processors and up to 4TB of DDR4 memory, this server is ideal for data-intensive tasks. The system offers extensive storage options with 8 hot-swap drive bays, including support for NVMe drives, and flexible PCI-E expansion slots. Robust network connectivity is ensured with dual 1GbE LAN ports powered by Intel X722. Additionally, the chassis features 3 peripheral bays and 1200W titanium level redundant power supplies, ensuring uninterrupted performance and optimal power efficiency.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-7049P-TR
    • SuperServer 7049P-TR ( Black )
    Motherboard
    Installed Motherboard
    • Super X11DPi-No
    Processor
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)*CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Dual 1GbE LAN with Intel® X722
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • Rear USB: 2 USB 3.0 + 2 USB 2.0
    • Front USB: 2 USB 3.0
    • USB Header: 1 Type A
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 Fast UART 16550 serial
    • 2 COM Ports (1 rear, 1 header)
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmountable / Tower
    • Optional Rackmount Kit
    Model
    • CSE-745BTS-R1K23B
    Dimensions and Weight
    Height
    • 17.8" (452mm)
    Width
    • 7.0" (178mm)
    Depth
    • 25.5" (648mm)
    Package
    • 24" (H) x 14" (W) x 26.5" (D)
    Weight
    • Net Weight: 56 lbs (25.6 kg)
    • Gross Weight: 73.5 lbs (33.6 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power Fail LED
    Ports
    • 2 USB Ports
    Expansion Slots
    PCI-Express
    • 4 PCI-E 3.0 x16 slots
    • 2 PCI-E 3.0 x8 slots
    • Support total of 6 Full-height AOC
    Drive Bays
    Hot-swap
    • 8 Hot-swap 2.5"/3.5" SATA3 (6Gbps) drive bays
    Peripheral Bays
    • 3 Peripheral 5.25" drive bays
    System Cooling
    Fans
    • 3x 80mm high-performance fans
    • 2x 80mm PWM Rear Chassis fans
    Power Supply
    • 1200W Redundant High-efficiency Power Supplies
    Total Output Power
    • 1000W with Input 100 - 127Vac
    • 1200W with Input 200 - 240Vac
    • 1200W with Input 200 - 240Vdc (for CCC only)
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 50-60Hz
    +12V
    • Max: 83A & Min: 0A (100Vac-127Vac)
    • Max: 100A & Min: 0A (200Vac-240Vac)
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    SAS / SATA Backplane
    • SAS / SATA Hard Drive Backplane w/AMI MG9072

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPi-N1Super X11DPi-N Motherboard
    CSE-745BTS-R1K23B14U Chassis
    Backplane
    BPN-SAS3-743A18-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
    Cable 1
    CBL-SAST-0508-012MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
    Cable 2
    CBL-SAST-0508-022MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Manual
    MNL-1940-QRG1SYS-7049P-TR/SYS-7049P-TRT, QRG
    Heatsink / Retention
    SNK-P0068PS22U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    *Power Supply
    PWS-1K23A-SQ21U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
    *Power Distributor
    PDB-PT747-46481POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
    *Cable 3
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    *Cable 4
    CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    *Cable 5
    CBL-0216L34 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
    *Cable 6
    CBL-0471L1USB 3.0,INT,19 PIN/F TO 19PIN/F,2 CH,80CM,30/28/26AWG
    *FAN 1
    FAN-0180L4280x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
    *FAN 2
    FAN-0182L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
    *Drive Tray(s)
    MCP-220-00092-0B8Black Hot-swap 3.5inch HDD Tray (w/o logo)
    *Parts
    MCP-290-74502-0B1Plastic feet (4 pcs set) for 4U tower chassis, black color
    *Air Shroud
    MCP-310-49001-0N1SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB

    Optional Part List

    Part Number Quantity Description
    Mounting Rails
    CSE-PT26L-B14U Chassis Rail Kits SC743,745 (w/ 2pcs Black Chassis Ears)
    5.25" SATA DVD drive
    5.25" DVD reader or writer1Any third party 5.25 inch SATA DVD reader or writer
    SATA cable for DVD drive
    CBL-0178L1SATA CABLE 48CM FLAT S-S PBF. 26AWG
    SATA Power cable for DVD drive
    CBL-0080L1Big 4 pin to SATA POWER ADAPTER CABLE 6", 18AWG
    2.5" NVMe fixed drive support
    MCP-220-00160-0N1Dual 2.5" NVMe Drive BKT: 743, 745, 502, 503, 510, 512, 515
    CBL-SAST-09561Oculink to 1 NVMe drive w/ power, each NVMe drive needs 1 cable, system can support total 2 NVMe fixed drives
    3.5" to 2.5" HDD tray Converter
    MCP-220-00080-0B1Black hot-swap gen2 3.5" to 2.5" HDD tray converter. Each 2.5" drive needs one converter, total 8x 2.5" Hot-swap drives can be supported
    HDD Bracket
    MCP-220-00044-0N1Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
