Summary Description

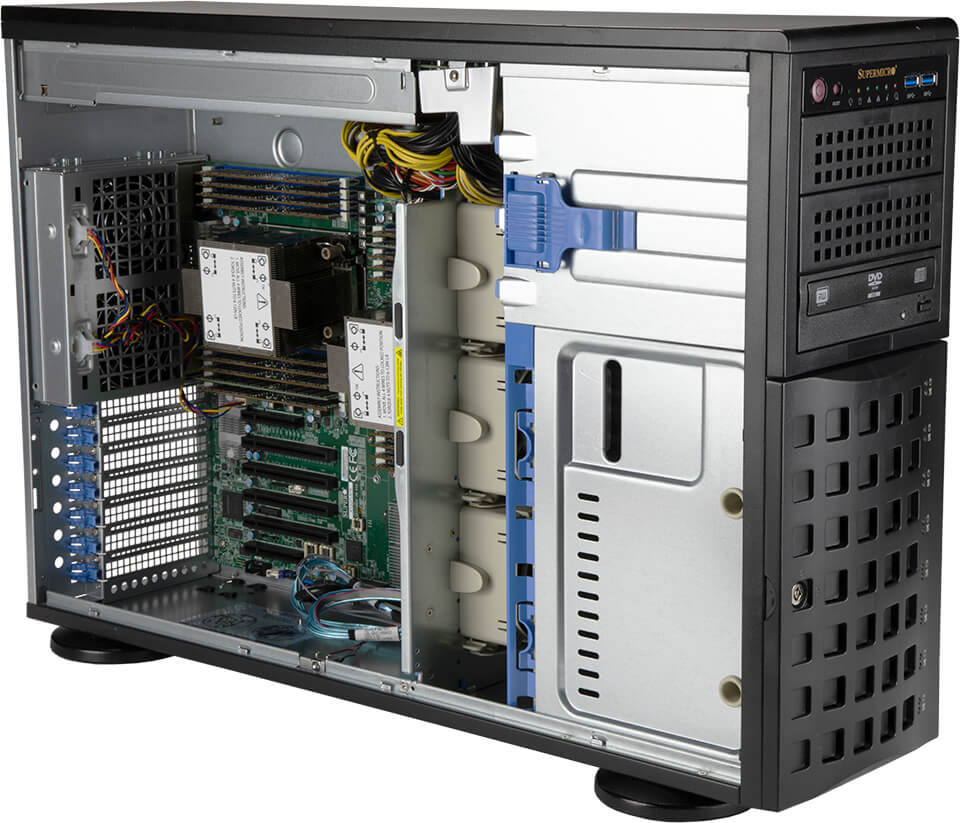

Supermicro SYS-740P-TRT is designed for enterprise applications, providing dual sockets P+ with 3rd Gen Intel Xeon Scalable processors supporting up to 270W TDP. It features up to 4TB memory support across 18 DIMM slots and Intel Optane Persistent Memory, along with multiple PCIe 4.0 slots and comprehensive network connectivity options. The tower/4U form factor server also includes high-performance hot-swappable fans and redundant power supplies.
Key Features
- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
- 4 PCIe 4.0 x16 Full Height (FH);2 PCIe 4.0 x8 Full Height (FH)
- Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
- Three 80mm high-performance 9.4K RPM Hot-swappable Middle Cooling Fans;Two 80mm 9.4K RPM Rear Exhaust Fans;1 air shroud
- 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc, Whisper-Quiet
- 1 rear VGA, 1 Type A port, 1 COM Port (rear) and 6 USB ports (2 front USB 3.0 and 4 rear USB 3.0)
Key Applications
- Enterprise Server
- Application and data serving
- Model analysis
- Compute Intensive Applications
- Office environment
Description
The Supermicro SYS-740P-TRT server is built to meet the demands of enterprise environments, offering powerful performance with dual sockets P+ and 3rd Gen Intel Xeon Scalable processors. The system supports up to 4TB 3DS ECC RDIMM or LRDIMM DDR4-3200MHz memory and Intel Optane Persistent Memory 200 Series across 18 DIMM slots. It includes 4 PCIe 4.0 x16 FH and 2 PCIe 4.0 x8 FH slots for versatile expansion, dual 10GBase-T LAN ports with Intel X550 Ethernet Controller, and comprehensive I/O options. The server's cooling system features three 80mm hot-swappable middle fans and two rear fans, ensuring optimal thermal management. Power redundancy is provided by the 1200W Titanium-level power supplies, and integrated security features like TPM 2.0 and Silicon Root of Trust ensure data integrity and protection.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory | |
| Memory |
|
| On-Board Devices | |
| Chipset |
|
| Network Connectivity |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 8 bays:
Option A: Total 10 bays:
|
| M.2 |
|
| Peripheral Bays |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| 1x 1200W Redundant Titanium Level (96%) power supply | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
|
| Operating Environment | |
| ROHS |
|
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12DPi-NT6 | 1 | Super X12DPi-NT6 Motherboard |
| CSE-745BTS-R1K23BP | 1 | Tower/4U Chassis |
| Backplane | ||
| BPN-SAS3-743A | 1 | 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane fo |
| Parts | ||
| MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
| MCP-290-74502-0B | 1 | Plastic feet (4 pcs set) for 4U tower chassis, black color |
| Manual | ||
| MNL-2242-QRG | 1 | SYS-740P-TR(T) Quick Reference Guide |
| Software | ||
| SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | ||
| SNK-P0078P | 2 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
| Cable | ||
| CBL-SAST-0508-01OR | 2 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG |
| CBL-SAST-0508-02 | - | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG |
| CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM |
| CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| CBL-0216L | 3 | 4 TO 4 PIN FAN POWER CABLE, 210MM |
| CBL-0471L | 1 | USB3.0 Internal Cable-80cm (19pin Female to 19pin Female) |
| *Power Supply | ||
| PWS-1K23A-SQ | 2 | 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac |
| *Power Distributor | ||
| PDB-PT747-4648 | 1 | POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE |
| *Fan | ||
| FAN-0180L4 | 2 | 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis |
| FAN-0182L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis |
| *Drive Tray(s) | ||
| MCP-220-00193-0N | 8 | SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray |
| *Air Shroud | ||
| MCP-310-49001-0N | 1 | SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| BTR kit for AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR with SYS-740P-TRT | ||
| use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05 with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR | 1 | SuperCap and mounting bracket used for SAS raid controllers AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR |
| BTR kit forAOC-S3908L-H8IR-16DD-P orAOC-S3916L-H16IR-32DD with SYS-740P-TRT | ||
| use BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD | 1 | SuperCap and mounting bracket used for SAS raid controllers AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD |
| Optional Gen3 8-ports SAS Raid controller kit for SYS-740P-TRT | ||
| add 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01 | 1 | Convert 8x hotswap SATA drives to SAS drives |
| Optional Gen4 8-ports SAS Raid AOC kit for SYS-740P-TRT (backplane is Gen3) | ||
| add 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100 | 1 | Convert 8x hotswap SATA drives to SAS drives |
| Optional Mounting Rails | ||
| CSE-PT26L-B | 1 | 4U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears |
| Optional parts needed to support 2x fixed NVMe drives | ||
| 1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) | 1 | 1x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives |
| Optional parts needed to support 2x fixed SATA drives | ||
| 1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) | 1 | 1x MCP-220-00160-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives |
