X13 4U 4GPU,X13DEG-QT-P,749TS-R2K05B,RoHS

X13 4U 4GPU,X13DEG-QT-P,749TS-R2K05B,RoHS

SKU:	SYS-741GE-TNRT
Brand:	Supermicro
Produktnotat:	For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 38 955,17 38955.17 NOK kr 38 955,17 Ekskl. mva

kr 38 955,17 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

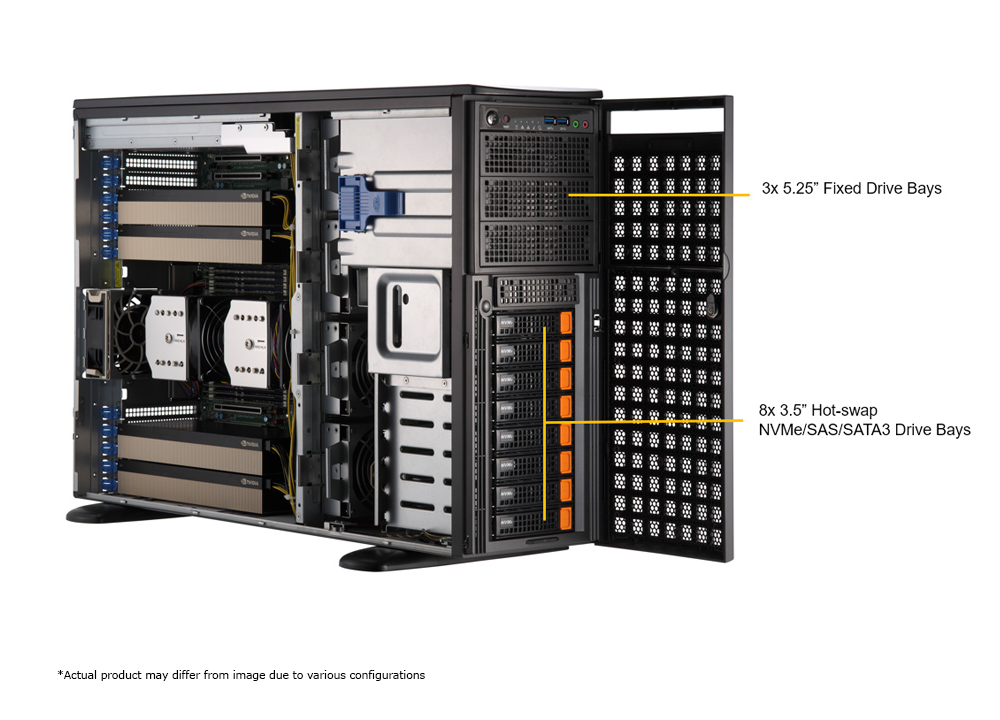

The Supermicro SYS-741GE-TNRT SuperWorkstation offers unparalleled performance for high-performance computing, AI/Deep Learning training, and advanced graphics rendering. Featuring dual 5th/4th Gen Intel® Xeon® Scalable processors, up to 4TB DDR5 RAM, and support for up to 4 double-width GPUs, this system is designed to meet the most demanding performance requirements.

Nøkkelfunksjoner

5th/4th Gen Intel® Xeon® Scalable processor support
16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
Up to 4x double width, full length GPUs4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays2x M.2 NVMe for boot drive onlyUp to 8x NVMe drives (8 NVMe drives supported by default)
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2000W (1+1) Redundant Power Supplies, Titanium Level

Viktige bruksområder

High Performance Computing
VDI
AI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging
AI Training

Beskrivelse

Accelerate your AI and deep learning training with the Supermicro SYS-741GE-TNRT SuperWorkstation. It's optimized for HPC, action-oriented AI, 3D simulation, and advanced graphic design. Powered by dual 5th/4th Gen Intel® Xeon® Scalable processors, ultra-fast M.2 NVMe PCIe 5.0 storage, and up to 4TB of DDR5 RAM, it offers flexibility to tackle complex high-performance computing demands. This workstation is ideal for design and visualization, diagnostic imaging, VDI, 3D rendering, animation, and modeling, supporting up to 4 double-width GPUs.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-741GE-TNRT
Motherboard
Installed Motherboard	Super X13DEG-QT
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100 AMD PCIe: Instinct MI210
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2
Input / Output
Video	1 VGA port(s) (Rear)
Serial	1 COM port(s) (Rear)
Audio	Front Audio
TPM	1 TPM Onboard/port 80
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	Tower Rackmount
Model	CSE-749TS-R2K05BP
Dimensions and Weight
Height	7" (178 mm)
Width	17.2" (437 mm)
Depth	29" (737 mm)
Package	27" (H) x 13" (W) x 38" (D)
Weight	Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg)
Available Color	Black Front & Silver Body
Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 7 PCIe 5.0 x16 FHFL slots
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays: 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 8 bays: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays
M.2	2 M.2 NVMe slots (M-key)
System Cooling
Fans	4 heavy duty fans with optimal fan speed control
Power Supply
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies	Dimension (WxHxL): 73.5 x 40 x 265 mm AC Input: 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz +12V: Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SB: Max: 2.1A / Min: 0A Output Type: Backplanes (gold finger) Certification: Titanium Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
General
Standard Parts (Parts Included)

Standard Delliste

Part Number	Quantity	Description
Motherboard / Chassis
MBD-X13DEG-QT	1	Super X13DEG-QT Motherboard
CSE-749TS-R2K05BP	1	Tower Chassis
Backplane
BPN-NVME5-749N-S8	1	8-port 3.5" LFF direct-attached HDD SAS4/NVMe Gen5 backp
Cable
CBL-MCIO-1240M5L	4	MCIOx8 (STR_pTab to LE), 40cm,30AWG,RoHS
CBL-PWEX-1142B-40	1	MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
CBL-SAST-1230-100	2	Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0160L	2	US POWER CORD 16AWG, PB FREE
CBL-PWEX-1078	5	PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Parts
MCP-260-00180-0B	1	STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar
MCP-290-74701-0B	1	Black plastic top cover for SC747
MCP-290-74703-0B	1	fixed 3.5" dummy cover for SC747
MCP-290-74709-0B	1	Plastic feet (2 pcs/set) for 4U tower chassis, black color
Software
SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0090AP4	2	4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
*Power Supply
PWS-2K05A-1R	2	1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
*Power Distributor
PDB-PT747-DSG	1	4U 4GPU support redundancy 2PWS up to 3KW output pass thr
*Fan
FAN-0199L4-1	1	92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
FAN-0199L4-2	4	92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
*Front Bezel
MCP-210-74701-0B	1	SC747 plastic front bezel
*Drive Tray(s)
MCP-220-00073-0B	3	Black 5.25 drive tray w/o rail (SC747)
MCP-220-00150-0B	8	NVMe Panetone 159C on Latch
*Front Panel
MCP-280-74702-0N	1	SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)

Valgfrie Opsjoner

Part Number	Quantity	Description
DVD Kit
CBL-0082L	1	Y SPLIT SATA POWER ADAPTER, PB FREE
CBL-PWEX-0947Y-30	1	MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/pin,16AWG,RoHS
DVM-TEAC-DVDRW24-HBT	1	BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
CBL-0044L	1	SATA CABLE 57.5CM FLAT SS PBF.26AWG flat
Front Bezel
MCP-210-74703-0B	1	Front bezel cover (for 5.25" bay) for rackmount
GPU Kit
MCP-320-74901-NN	1	SC749 chassis rear external fan for passive GPU cooling kit
Mounting Rails
MCP-290-00059-0B	1	Rail set+handles, quick/quick, optional for 4U 17.2"W tower
Optional Storage Controller Card + Cable(s)
AOC-S3908L-H8IR-16DD-O	1	8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
CBL-SAST-1261-100	1	Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM
Trusted Platform Module Options
AOM-TPM-9670V-O	1	SPI capable vertical TPM 2.0 provisioned for server,RoHS
