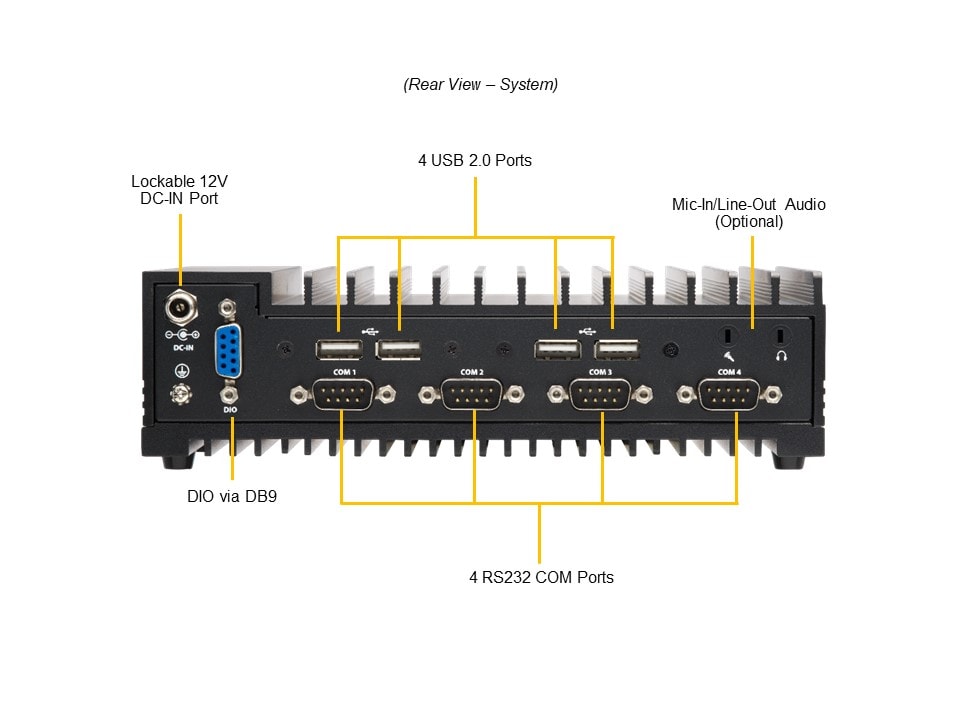

Fanless CSE-E101-04 + X13SAN-C-WOHS
SYS-E100-13AD-C
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-E100-13AD-C is a versatile, fanless embedded system powered by Alder Lake-U 12th Gen Intel Celeron 7305E processor. It supports advanced features and connectivity options making it perfect for industrial automation, retail, smart buildings, and more.
Key Features
- Alder Lake-U 12th Generation Intel® Celeron® 7305E
- 2x DDR5-4800MT/s Non-ECC SO-DIMM max 64GB
- M.2 M/B/E-Key with Nano SIM Card Slot
- 2x LAN 2.5GbE
- Fanless (Op. Temperature 0C ~ +50C)
- 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)
Key Applications
- Industrial Automation, Retail
- Smart Medical Expert Systems
- Digital Signage Kiosk, Interactive info system
- IoT Gateway for Smart Factory
- Smart Building, Security and Surveillance
Description
Supermicro SYS-E100-13AD-C is designed for demanding industrial and smart applications. It features a powerful Alder Lake-U 12th Gen Intel Celeron 7305E processor, and supports up to 64GB DDR5 memory, providing seamless performance. The system includes various I/O ports, multiple display interfaces, and supports 2.5GbE LAN for high-speed connectivity. It's an ideal choice for digital signage, IoT gateways, and security systems.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| Network Connectivity |
|
| Input / Output | |
| LAN |
|
| USB |
|
| Video |
|
| Serial |
|
| TPM |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Palletized Packing (W x H x L) |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots | |
| M.2 |
|
| PCI-Express (PCIe) Configuration | |
| Drive Bays / Storage | |
| M.2 |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| 1x 84W power supply | Dimension (WxHxL): AC Input:
|
| Operating Environment | |
| ROHS |
|
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X13SAN-C-WOHS | 1 | Super X13SAN-C-WOHS Motherboard |
| CSE-E101-04 | 1 | Fanless Embedded Chassis |
| Cable | ||
| CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH |
| CBL-CUSB-0985 | 2 | USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM |
| CBL-CUSB-1047 | 1 | SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG |
| CBL-OTHR-1046 | 1 | 2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG |
| Power Supply | ||
| MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter w/o power cord - EN62368 |
| Heatsink / Retention | ||
| MCP-350-10103-0N | 1 | for X13SAN in system |
| Manual | ||
| MNL-2622-QRG | 1 | E100-13AD-H/E/L/C Quick Reference Guide |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Audio Kit | ||
| MCP-280-10001-0B | 1 | Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS |
| Thermal Solution | ||
| MCP-270-10105-0B | 1 | FIN base bottom cover for M.2 NMVe |
| MCP-270-10105-1B | 1 | FIN base bottom cover for HAILO-8 M.2 Module |
