[NR] Fanless PC CSE-E101-05 + A4SAN-H,RoHS

SYS-E100-14AM-H

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/12617/image_1920?unique=953614e

kr 6 623,79 6623.79 NOK kr 6 623,79

kr 6 623,79

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro Fanless PC CSE-E101-05 with A4SAN-H offers reliable performance with Intel® Atom® x7835RE, support for up to 16GB DDR5 memory, and a rugged design suitable for harsh environments. Ideal for industrial, healthcare, and digital signage applications.

    Nøkkelfunksjoner

    • Intel® Atom® x7835RE (TDP 12W / 8C)
    • DDR5-4800MT/s 1 DIMM max 16GB
    • M.2:1x M-Key 2242 / 2280 ,1x B-Key 2242 / 2280 (NANO SIM slot),1x E-Key 2230
    • 2x RJ45 2.5GbE (Intel i226-IT)
    • Fanless supporting max 60°C with Fin Bottom Cover (Optional accessory)
    • DC Jack lockable 9V~36V
    • 2x HDMI 1.4 ports,4x USB3.2 ports and 2x USB2.0 ports,4x COM ports (COM1/2 RS232/422/485 + COM3/4 RS232)

    Viktige bruksområder

    • Industrial / Automation
    • Healthcare
    • Digital Signage Kiosk, Interactive info system
    • Retail

    Beskrivelse

    The Supermicro Fanless PC CSE-E101-05 with A4SAN-H is designed for applications requiring robust performance and reliability in harsh environments. Powered by Intel® Atom® x7835RE, it supports up to 16GB DDR5 memory and features multiple I/O interfaces including HDMI, USB, and RJ45 ports. With fanless design, it operates in temperatures up to 60°C, making it suitable for industrial and healthcare settings.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SYS-E100-14AM-H
    Motherboard
    Installed Motherboard
    • Super A4SAN-H-WOHS
    Processor
    CPU
    • Intel® Atom® x7835RE
    Core Count
    • Up to 8C/8T; Up to 6MB Cache
    Note
    • Supports up to 12W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 1 DIMM slots/1 Channels
    • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 2.5GbE with Intel® I226-IT

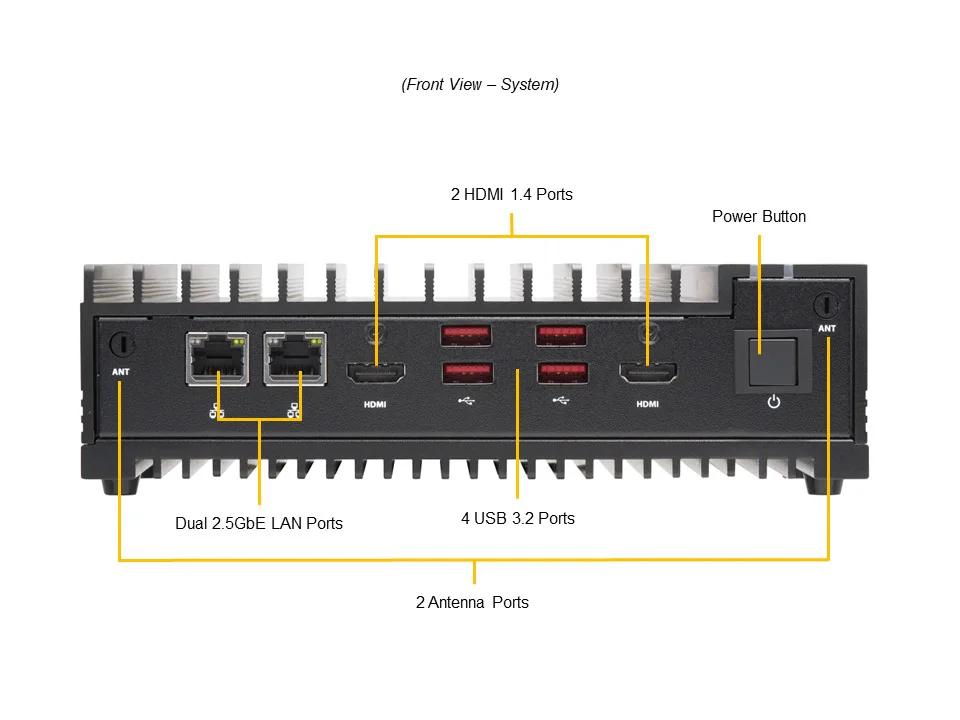

    Input / Output
    LAN
    • 2 RJ45 2.5 GbE LAN ports (Intel® I226)
    USB
    • 2 USB 2.0 Type-A ports(rear)
    • 4 USB 3.2 PCIe Gen. 2 Type-A ports(Front)
    Video
    • 2 HDMI 1.4 ports(Front)
    Serial
    • 4 COM ports(Rear)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • Supermicro SuperDoctor® 5 (SD5)
    Power configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    • Force power-on by jumper
    • +9~36V DC Power Input
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Secure Boot
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E101-05
    Dimensions and Weight
    Height
    • 1.73" (44 mm)
    Width
    • 7.68" (195 mm)
    Depth
    • 5.94" (150 mm)
    Package
    • 5.12" (H) x 11.81" (W) x 11" (D)
    Weight
    • Gross Weight: 4.3 lbs (1.95 kg)
    • Net Weight: 2.16 lbs (0.98 kg)
    Palletized Packing (W x H x L)
    • 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available Color
    • Black
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280)
    • 1 M.2 slot (E-key 2230(default))
    • 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242/2280)
    Drive Bays / Storage
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280; USB 3.0)
    • 1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280)
    System Cooling
    Fans
    • No/A
    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
    General
    Power Supply

    Optional Part List

    Part Number Quantity Description
    Audio Kit
    MCP-280-10001-0B1Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
    Din Rail Kit
    MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
    Power Adapter
    MCP-250-10134-0N1FSP 60W Lockable Power Adapter w/o power cord - EN62368
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Thermal Solution
    MCP-270-10105-0B1FIN base bottom cover for M.2 NMVe
    MCP-270-10105-1B1FIN base bottom cover for HAILO-8 M.2 Module
