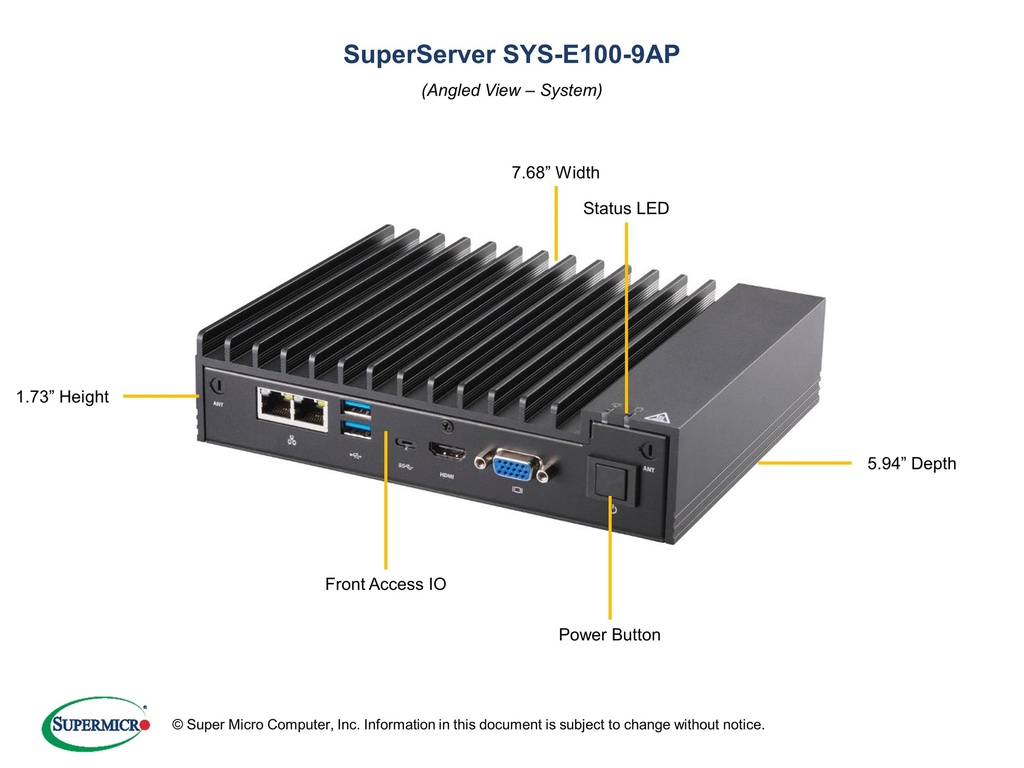

Fanless PC E101 + A2SAN-E, Atom E3940

SYS-E100-9AP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10395/image_1920?unique=a1dbe1e

kr 4 663,65 4663.650000000001 NOK kr 4 663,65

kr 4 663,65

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro SYS-E100-9AP features Intel Atom Processor E3940, dual GbE LAN ports, and a fanless design, making it ideal for kiosks, environmental monitors, and interactive information systems.

    Key Features

    • IoT Gateway for Smart Factory/Building/Home - Kiosk, Interactive info system - Environmental Monitor
    • Intel® Atom® Processor E3940, Single Socket FCBGA 1296
    • System-on-Chip
    • 1 Full size Mini-PCIe, 1 M.2 2280 B-Key for SATA or PCIe SSD
    • 1 non-ECC DDR3L SODIMM; up to 8GB
    • Dual GbE LAN ports via Intel I210-IT
    • 4 COM, 2 USB 3.0, 4 USB 2.0
    • 1 VGA, 1 HDMI
    • Fanless design
    • Lockable 12V DC 40W power adapter

    Key Applications

    • Smart Factory
    • Building Automation
    • Home Automation
    • Kiosk Systems
    • Environmental Monitoring
    • Interactive Information Systems

    Description

    The Supermicro SYS-E100-9AP is a compact and reliable IoT gateway, powered by the Intel Atom Processor E3940. It supports non-ECC DDR3L SODIMM memory up to 8GB and offers extensive connectivity with dual GbE LAN ports, multiple USB and COM ports, and video outputs via VGA and HDMI. The fanless design ensures silent operation and the lockable 12V DC 40W power adapter enhances security. This system is suitable for smart factory, building, and home automation, environmental monitoring, and interactive kiosk applications.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E100-9AP
    • SuperServer E100-9AP ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAN-E
    Processor/Cache
    CPU
    • Intel® Atom® Processor E3940
    • FCBGA 1296
    • System-on-Chip
    • CPU TDP support 9W
    System Memory
    Memory Capacity
    • 1x 204-pin DDR3L SO-DIMM socket
    Memory Type
    • 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
    DIMM Sizes
    • 8GB, 4GB, 2GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Network Controllers
    • Dual GbE LAN with Intel i210-IT controller
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 (front)
    • 4 USB 2.0 (rear)
    COM Port
    • 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Video
    • 1 VGA, 1 HDMI
    Others
    • 8-bit configurable GPIO via DB9
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E101
    Dimensions
    Width
    • 7.68" (195mm) / 11.81" (300mm) - pkg.
    Height
    • 1.73" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 5.94" (151mm) / 11" (279mm) - pkg.
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)
    Drive Bays
    Internal
    • 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
    System Cooling
    Fans
    • Fan-less design
    System BIOS
    BIOS Type
    • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • ACPI 5.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    • ATX Power connector
    • Control of power-on for recovery from AC power loss
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:-20°C to 60°C (-4°F to 140°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
    • Operational Shock, IEC 60068-2-27, 30G, half sine, 11msThe use of industrial grade wide-temperature peripherals is required to meet 60°C operating temperature.
    General
    Power Supply
    • Lockable 12V DC 40W power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAN-E1Super A2SAN-E Motherboard
    CSE-E1011Chassis for Embedded 3.5" SBC
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
