  2. FanlessIndustrialSystem X11SWN-C-WOHS+CSE-E101-IA2,RoHS

FanlessIndustrialSystem X11SWN-C-WOHS+CSE-E101-IA2,RoHS

SYS-E100-9W-IA-C

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10377/image_1920?unique=a1dbe1e

kr 6 480,83 6480.83 NOK kr 6 480,83

kr 6 480,83

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E100-9W-IA-C is a powerful and efficient industrial PC, perfectly suited for industrial automation and machine automation applications. It features an Intel® Celeron® Processor 4305UE with robust connectivity options and a fanless design.

    Key Features

    • Intel® Celeron® Processor 4305UE; Single Socket FCBGA-1528
    • System-on-Chip
    • M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
    • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
    • Dual GbE LAN w/ Intel i219LM + i210IT
    • 4 COM (RS-232/422/485), 4 USB 3.1, 4 USB 2.0, 1 DIO via DB9
    • 1 HDMI and 1 Display Port
    • Fanless design

    Key Applications

    • Industrial Automation & Control
    • Machine Automation

    Description

    The Supermicro SYS-E100-9W-IA-C is engineered to provide robust performance in industrial settings. Featuring an Intel® Celeron® Processor 4305UE in a single socket FCBGA-1528, this system operates with up to 64GB of unbuffered non-ECC SO-DIMM DDR4 2133MHz memory, ensuring seamless and efficient operation. Dual GbE LAN, multiple COM ports, and various USB ports enhance connectivity, while the fanless design ensures a quiet and reliable operation across diverse applications. With its compact form factor, it fits perfectly in space-constrained environments, making it ideal for industrial automation and control as well as machine automation tasks.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E100-9W-IA-C
    • SuperServer E100-9W-IA-C ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SWN-C-WOHS
    Processor/Cache
    CPU
    • Intel® Celeron® Processor 4305UE
    • Single Socket FCBGA-1528
    • System-on-Chip
    • CPU TDP support 15W
    Note
    • BIOS version 2.0 or above is required
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4 2133MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2133MHz
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Audio
    • ALC 888S HD Audio
    Video
    • Intel® UHD Graphics 620
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
    Video Output
    • 1 HDMI and 1 Display Port
    COM Port
    • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Audio
    • 1 HD Audio header(Mic-in/Line-Out) (option)
    Others
    • 8-bit configurable GPIO via DB9
    • 1 TPM Chip
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E101-IA2

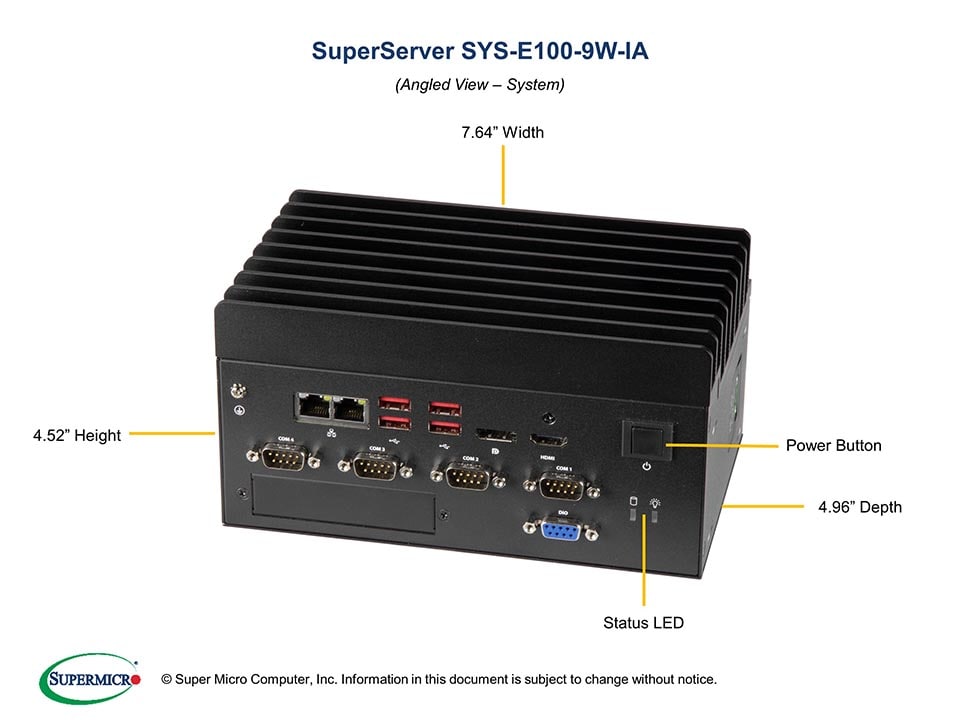

    Dimensions
    Width
    • 7.64" (194mm) / 11.81" (300mm) - pkg.
    Height
    • 4.52" (115mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.96" (126mm) / 11" (279mm) - pkg.
    Weight
    • Gross Weight: 4.3 lbs (1.95 kg)
    • Net Weight: 3.7 lbs (1.68 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (USB 3.0/2.0 x1, SATA Gen3 x1) with nano SIM holder
    • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen 3 x1), NVMe support
    System Cooling
    Fans
    • Fan-less design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V ~ +24V DC Wide power range input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
    • Operational Shock, IEC 60068-2-27, 30G, half sine, 11msThe use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 12V DC 60W power adapter with Terminal Block

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SWN-C-WOHS1Super X11SWN-C-WOHS Motherboard
    CSE-E101-IA21Fanless Industrial Enclosure for 3.5" motherboard
    Power Adapter
    MCP-250-10134-0N160W 12V 3.33A, AC to DC power adapter w/ terminal block,HF,R
