  2. CSE-E102TF2 + X13SRN-H, cost effective Box PC.

CSE-E102TF2 + X13SRN-H, cost effective Box PC.

SKU: SYS-E102-13R-H
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10404/image_1920?unique=829ca0b

kr 10 880,32 10880.32 NOK kr 10 880,32 Ekskl. mva

kr 10 880,32 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-E102-13R-H is a versatile embedded system designed for IoT applications. It features the Intel Raptor Lake-P I7-1370PE Processor, dual channel DDR5 memory, multiple network connectivity options, and flexible storage solutions. Ideal for IoT Gateway, Smart Retail, Inference AI edge compute, and Medical/Education Signage.

    Nøkkelfunksjoner

    • Intel® Intel® Raptor Lake-P I7-1370PE 14C/20T Processor
    • Dual Channel DDR5 4800MHz SO-DIMM, up to 64GB
    • 2x 2.5GbE LAN Ports
    • 1x 2.5” 7mm Storage Drive
    • 1x M.2 M-Key 2242/2280 (PCIe x4), 1x M.2 E Key 2230, 1x M.2 B-key 2242/3042/2280
    • 4x USB 3.2 Ports Gen2, 2x HDMI Port, 2x DisplayPort (2x USB type-C for USB & DP)

    Viktige bruksområder

    • IoT Gateway
    • Smart Retail
    • Inference AI edge compute
    • Medical/Education Signage

    Beskrivelse

    The Supermicro SYS-E102-13R-H is engineered for high performance in a compact form factor. It features an Intel Raptor Lake-P I7-1370PE processor with 14 cores and 20 threads, and supports up to 64GB of DDR5 memory. Multiple connectivity options, including two 2.5GbE LAN ports, make it ideal for IoT and edge computing applications. With a robust set of features including various USB and HDMI ports, this system is perfect for demanding environments such as smart retail and medical signage.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E102-13R-H
    Motherboard
    Installed Motherboard
    • Super X13SRN-H-WOHS
    Processor
    CPU
    • Single processor(s)
    Core Count
    • 14C/28T; 24MB Cache
    Note
    • Supports up to 28W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (2DPC): 64GB 4800MT/s non-ECC DDR5 SO-DIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® System on Chip
    Network Connectivity
    • 2 RJ45 2.5GbE with Intel® I226-IT
    Input / Output
    LAN
    • 2 RJ45 2.5 GbE LAN port(s)
    USB
    • 2 USB 3.2 Gen2 Type-A port(s) (Rear)
    • 2 USB 3.2 Gen2 Type-C port(s) (Rear)
    Video
    • 1 HDMI 2.0b port(s) (Rear)
    • 1 HDMI 1.4b port(s) (Rear)
    • 2 DisplayPort over USB Type-C 1.4 port(s) (Rear)
    System BIOS
    BIOS Type
    • AMIUEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5 or later
    • UEFI 2.8B
    • PCI F/W 3.3
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • +12-24V DC Power Input
    • Control of power-on for recovery from AC power loss
    • Wake-on-LAN
    • Force power-on by jumper
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E102TF2
    Dimensions and Weight
    Height
    • 1.72" (44 mm)
    Width
    • 7.48" (190 mm)
    Depth
    • 4.72" (120 mm)
    Package
    • 5.12" (H) x 11.81" (W) x 11.02" (D)
    Weight
    • Gross Weight: 4.5 lbs (2 kg)
    • Net Weight: 2.65 lbs (1.2 kg)
    Palletized Packing (W x H x L)
    • 46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm)
    Available Color
    • Black

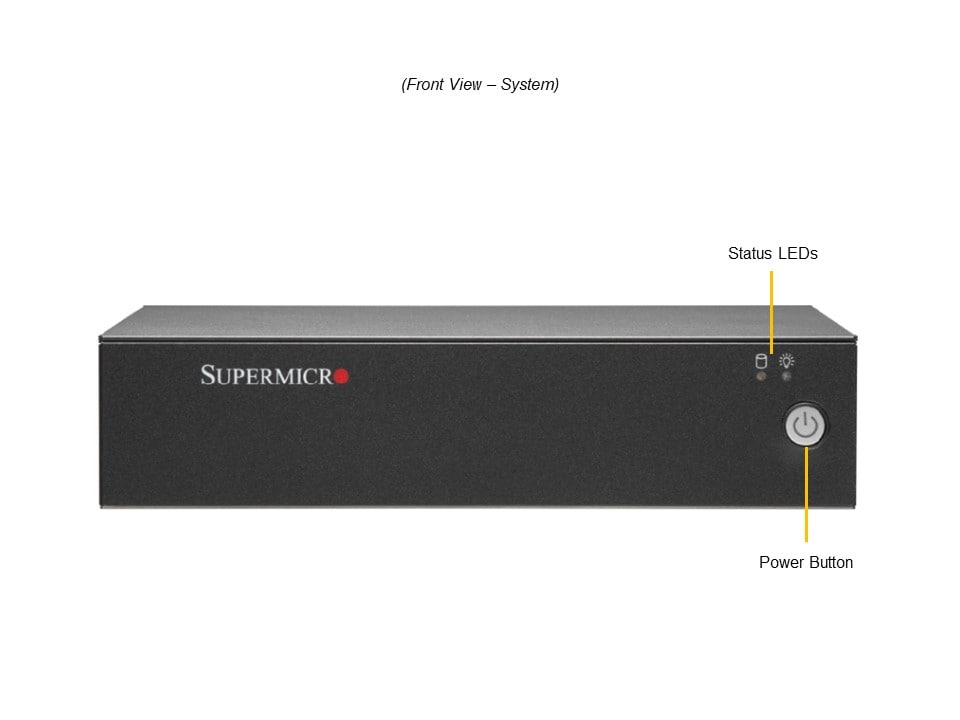

    Front Panel
    LED
    • HDD Status
    • Power status
    Buttons
    • Power On/Off
    Expansion Slots
    M.2
    • 1 M.2 NVMe slot (E-key 2230)
    • 1 M.2 NVMe slot (B-key 2242/2280/3042)
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA drive bay

    M.2
    • 1 M.2 NVMe slot (M-key 2280)
    System Cooling
    Fans
    • 1x 4-PIN PWM 40x40x15mm Fan(s)
    Power Supply
    1x 84W power supply
    Dimension (WxHxL):
    AC Input:
    • 84W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SRN-H-WOHS1Super X13SRN-H-WOHS Motherboard
    CSE-E102TF21Fan-based Embedded Chassis
    Cable
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Fan
    FAN-0131L4140x40x15 mm, 12K RPM, Cooling Fan for SYS-E102-13R,RoHS
    Power Supply
    MCP-250-10137-0N184W Lockable AC to DC power adapter w/o power cord - EN62368
    Heatsink / Retention
    SNK-C0126PL-1168W x 128L x 18.7H mm, Al+Cu+HP, Screws, Grease, Nickel

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable
    CBL-PWEX-1030-SATA power
    CBL-SAST-0881-SATA signal
    Dual System Tray & Sliding Rail Kit
    MCP-290-10119-0B-MCP-290-10119-0B：Dual System Tray
    MCP-120-10202-0B-MCP-120-10202-0B：Sliding Rail Kit
    M.2 heatsink
    SNK-C0160L1M.2 heatsink interferes with the 2.5" SSD, you can only choose one between M.2 heatsink and 2.5" SSD.
    Mounting Clip for DIN Rail
    MCP-290-10201-0N-Mounting Clip for DIN Rail
    Wall mount/VESA mount
    MCP-290-10113-0B-Wall mount/VESA mount
