CSE-E102 + A2SAN-L

SKU: SYS-E102-9AP-L
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10405/image_1920?unique=8288b69

kr 3 049,60 3049.6 NOK kr 3 049,60 Ekskl. mva

kr 3 049,60 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-E102-9AP-L is a compact, versatile server designed for embedded applications, featuring the Intel® Atom® processor E3930. It provides robust performance and rich connectivity options, ideal for a wide range of industrial uses.

    Nøkkelfunksjoner

    • Embedded Applications
    • Intel® Atom® processor E3930 (6.5W, 2C) Single socket FCBGA 1296
    • System on Chip
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
    • Up to 8GB unbuffered non-ECC SO- DIMM, DDR3L-1866MHz, in 1 socket
    • Dual GbE LAN w/ Intel i210IT
    • 4 COM (RS-232/422/485), 2 USB 3.0
    • 1 VGA port, 1 HDMI port
    • Passive CPU heat sink and 1x 40mm chassis fans
    • Lockable 12V DC 40W power adapter

    Viktige bruksområder

    • Industrial automation
    • Digital signage
    • IoT gateways
    • Networking appliances
    • Medical devices

    Beskrivelse

    Supermicro's SYS-E102-9AP-L, featuring the Intel® Atom® processor E3930, is engineered for embedded applications that demand high reliability and performance. It supports up to 8GB DDR3L memory, dual GbE LAN, four COM ports, and two USB 3.0 ports for excellent connectivity. The system also includes a VGA port, HDMI port, and lockable 12V DC 40W power adapter for enhanced usability in diverse environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SYS-E102-9AP-L
    • SuperServer E102-9AP-L ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAN-L
    Processor/Cache
    CPU
    • Intel® Atom® Processor E3930
    • Single Socket FCBGA 1296 supported
    • CPU TDP support 6.5W
    Cores / Cache
    • 2 cores, 2 threads
    System Memory
    Memory Capacity
    • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM slot
    Memory Type
    • DDR3L up to 1866MHz (8GB)
    DIMM Sizes
    • 8GB, 4GB, 2GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Dual LAN with Intel® I210IT
    Audio
    • ALC 888S HD Audio
    Video
    • Intel® HD Graphics 620
    Input / Output
    USB
    • 2 USB 3.0
    Video Output
    • 1 VGA port
    • 1 HDMI port
    COM Port
    • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (optional)
    Audio
    • 1 HD Audio header (Mic-in/Line-Out)
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E102
    Dimensions
    Width
    • 7.48" (190mm) / 11.81" (300mm) - pkg.
    Height
    • 1.72" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.72" (120mm) / 11" (279mm) - pkg.
    Weight
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black

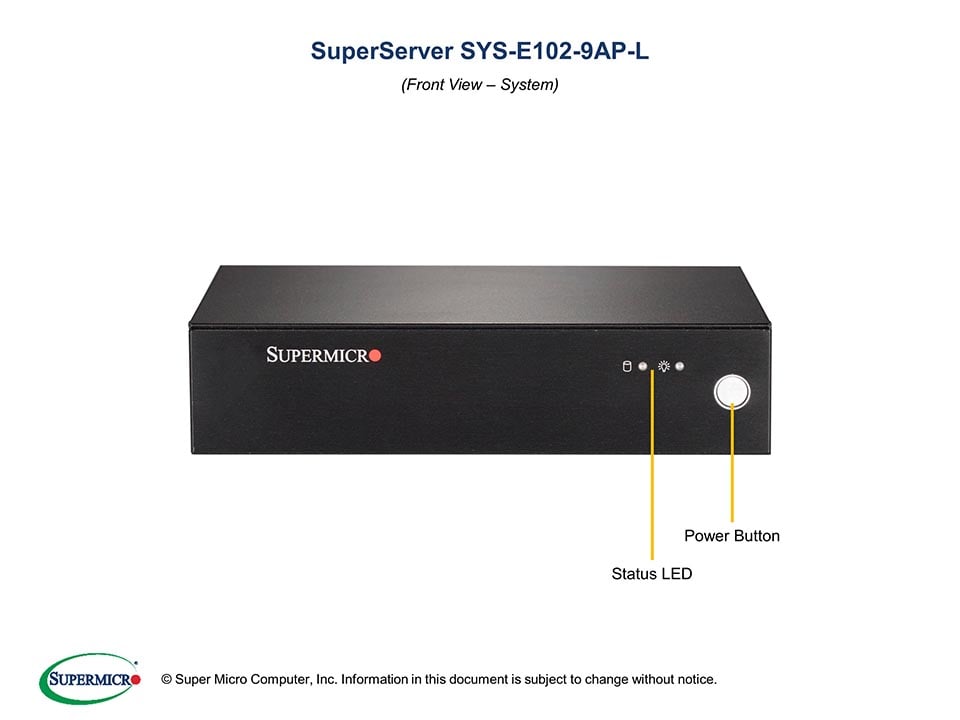

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)
    M.2
    • Interface: SATA, PCIe 2.0 x1 and USB 2.0
    • Form Factor: B-Key 2280
    Drive Bays
    Internal
    • 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
    • 1 SATA 3.0 for 2.5" 7mm SATA HDD/SSD
    System Cooling
    Fans
    • 1x 40mm chassis fan
    Heat Sink
    • Passive CPU heat sink
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • Lockable 12V DC 40W power adapter

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAN-L1Super A2SAN-L Motherboard
    CSE-E1021Chassis for Embedded 3.5" SBC
    Power Adapter
    MCP-250-10135-0N1FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable
    CBL-CUSB-1045-SERIAL, 2x DB9M TO 2X10F/P2.00,INT TO EXT,FLAT, 12CM, 28AWG
    CBL-PWEX-0982-PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    CBL-SAST-0881-SATA,INT,6G,FLAT,ST-RA,25CM,30AWG,BLK,No Latch,RoHS
    Chassis parts
    MCP-160-10202-0B-CSE-E102 Optional FP mylar with 4x Comport opening only
    MCP-160-10203-0B-CSE-E102 Optional FP mylar with 4x comport and Audio port
    MCP-160-10204-0B-CSE-E102 Optional FP mylar with Audio port only
    MCP-290-10113-0B-wall mount/VESA mount
    Power Adapter
    MCP-250-10117-0N-60W DC power adapter with US power cord 18AWG 6ft
    MCP-250-10124-0N-AC to DC 40W lockable power adapter
    IO shield
    MCP-260-10202-0B-CSE-E102 I/O shield for X11SSN
    MCP-260-10201-0B-CSE-E102 I/O shield for A2SAN and X11SAN
