4 LAN Compact SuperServer CSE-E102TF + MBD-A2SAN-LN4-E

SYS-E102-9AP-LN4-E

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10407/image_1920?unique=a1dbe1e

kr 3 570,81 3570.81 NOK kr 3 570,81

kr 3 570,81

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E102-9AP-LN4-E is a versatile IoT Gateway with powerful networking capabilities, designed with an Intel® Atom E3940 processor. It supports up to 8GB of DDR3L memory, includes 4 Gigabit LAN ports, and multiple USB and HDMI ports, making it ideal for network security, SD WAN, and other embedded applications.

    Key Features

    • Intel® Atom E3940 4C/4T Processor with up to 8GB DDR3L 1866MHz SODIMM
    • Intel® HD Graphics
    • 4x Gigabit LAN Ports ( E: Intel® I210 IT)
    • 3x M.2 B Key (USB) 2242/3042 with 3x Nano SIM Slot, 1x M.2 E Key 22301x 2.5” 7mm Storage Drive
    • 2x USB 3.2 Ports Gen1, 1 HDMI Port, 1 COM Port

    Key Applications

    • IoT Gateway
    • Network Security Appliance
    • SD WAN
    • Embedded Networking Applications

    Description

    The Supermicro SYS-E102-9AP-LN4-E is designed for mission-critical applications in the IoT and embedded networking markets. Equipped with an Intel® Atom E3940 processor and up to 8GB DDR3L memory, this system provides robust performance and extensive I/O connectivity. It features 4 Gigabit LAN ports, multiple M.2 slots, and comprehensive expansion capabilities. Ideal uses include IoT Gateway, Network Security Appliance, and SD WAN.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E102-9AP-LN4-E
    Motherboard
    Installed Motherboard
    • Super A2SAN-LN4-E
    Processor
    CPU
    • Single processor(s)
    • Intel® Atom® Processor E3940
    Core Count
    • Up to 4C/4T; Up to 2MB Cache
    Note
    • Supports up to 10W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 1 DIMM slots
    • Max Memory (2DPC): Up to 8GB 1866MT/s non-ECC UDIMM
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • intel System on Chip
    Network Connectivity
    • 4 RJ45 1GbE
    Input / Output
    LAN
    • 4 RJ45 1 GbE LAN port(s)
    Video
    • 1 HDMI 1.4 port(s)
    System BIOS
    BIOS Type
    • AMIUEFI
    BIOS Features
    • UEFI 2.5
    • SMBIOS 3.0
    Management
    Software
    • Supermicro SuperDoctor® 5 (SD5)
    Power configurations
    • DeepSx Power Policies
    • Watch Dog Function
    • Power Button Function
    • Restore on AC Power Loss
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E102TF
    Dimensions and Weight
    Height
    • 1.72" (44 mm)
    Width
    • 7.48" (190 mm)
    Depth
    • 4.72" (120 mm)
    Package
    • 5.12" (H) x 11.81" (W) x 11.02" (D)
    Weight
    • Gross Weight: 4.5 lbs (2 kg)
    • Net Weight: 2.65 lbs (1.2 kg)
    Palletized Packing (W x H x L)
    • 46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm)
    Available Color
    • Black

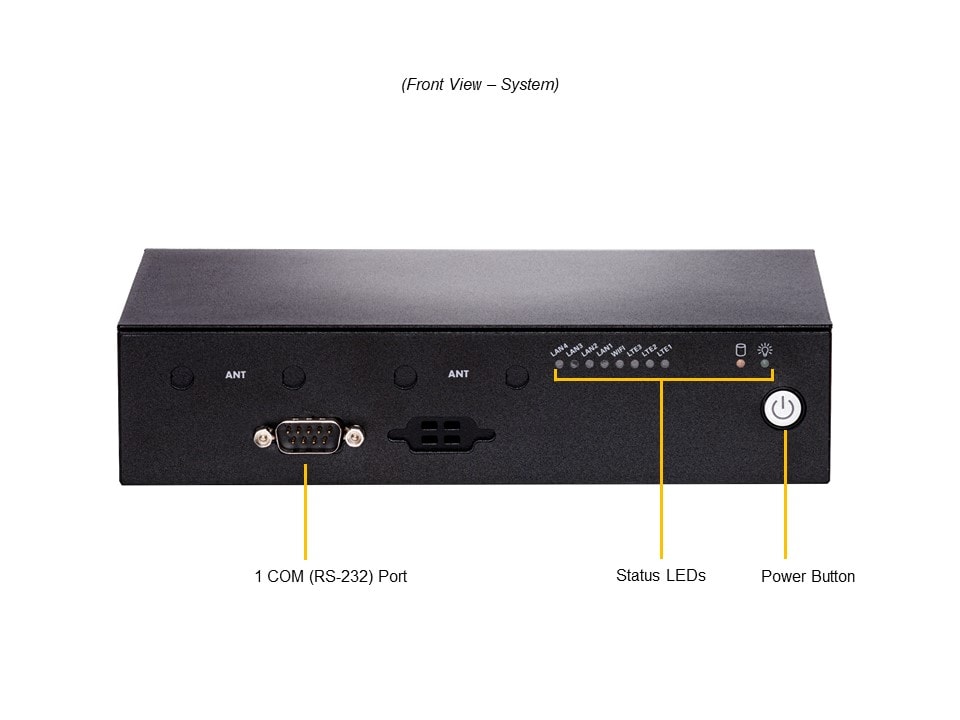

    Front Panel
    LED
    • HDD Status
    • LAN1 activity
    • LAN2 activity
    • LAN3 activity
    • LAN4 activity
    • LTE1 activity
    • LTE2 activity
    • LTE3 activity
    • Power status
    • WIFI activity
    Buttons
    • Power On/Off
    Expansion Slots
    M.2
    • 1 M.2 NVMe slot (E-key 2230)
    • 2 M.2 NVMe slots (B-key 2242/3042)
    • 1 M.2 NVMe/SATA slot (B-key 2242/3042)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA drive bay

    M.2
    • 1 M.2 SATA slot (M-key 2242)
    System Cooling
    Fans
    • 1x 40mmcm heavy duty fans with optimal fan speed control
    Power Supply
    1x 60W power supply
    Dimension (WxHxL):
    • 110 x 31.5 x 62 mm

    AC Input:
    • 60W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: °C ~ °C (°F ~ °F)
    • Non-operating Temperature: °C to °C (°F to °F)
    • Operating Relative Humidity: % to % ()
    • Non-operating Relative Humidity: % to % ()
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAN-LN4-E1Super A2SAN-LN4-E Motherboard
    CSE-E102TF1Fan-based Embedded Chassis
    Cable
    CBL-OTHR-1061-151D-SUB 9/M to PH2.0 2X5P,15CM,28AWG,RoHS
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    CBL-SAST-088117pin SATA (STR to RA),25cm,Flat,PBF
    Power Supply
    MCP-250-10134-0N160W Lockable Power Adapter w/o power cord - EN62368
    Manual
    MNL-2473-QRG1E102-9AP-LN4-E/-C Quick Reference Guide
