CSE-E102 + MBD-X11SWN-L,RoHS

SYS-E102-9W-L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10411/image_1920?unique=a1dbe1e

kr 5 743,79 5743.79 NOK kr 5 743,79

kr 5 743,79

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E102-9W-L is a robust solution for industrial automation, smart medical systems, and digital signage with the 8th Gen Intel Core i3-8145UE processor.

    Key Features

    • Industrial Automation, Retail - Smart Medical Expert Systems - Kiosk, Interactive info system - Digital Signage
    • 8th Gen. Intel® Core™ i3-8145UE Processor; Single Socket FCBGA-1528
    • System-on-Chip
    • M.2: B-Key 2242/3042/2280, E-Key 2230, M-Key 2242/2280
    • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    • 1x 1GbE LAN, Intel PHY i219LM 1x 1GbE LAN, Intel i210IT
    • 4 COM (RS-232/422/485) Opt., 4 USB 3.1, TPM onboard
    • 1 HDMI and 1 Display Port
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    • Lockable 12V DC 60W power adapter

    Key Applications

    • Industrial automation
    • Smart medical systems
    • Digital signage
    • Retail environments
    • Kiosks
    • Interactive info systems

    Description

    The Supermicro SYS-E102-9W-L offers a versatile and high-performance platform designed specifically for industrial automation, retail environments, smart medical systems, kiosks, and digital signage. Equipped with an 8th Gen Intel Core i3-8145UE processor, this compact system is built to handle demanding applications with ease. It features extensive connectivity options, including multiple USB ports, dual LAN ports, COM ports, HDMI, and Display Port, ensuring seamless integration into various industrial setups. With support for up to 64GB of DDR4 memory and multiple M.2 storage options, the SYS-E102-9W-L provides the flexibility and performance needed for a wide array of applications.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E102-9W-L
    • SuperServer E102-9W-L ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SWN-L
    Processor/Cache
    CPU
    • 8th Gen. Intel® Core™ i3-8145UE Processor
    • Single Socket FCBGA-1528
    • System-on-Chip
    • CPU TDP support 15W
    Note
    • BIOS version 2.0 or above is required
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2400MHz
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Video
    • Intel® UHD Graphics 620
    Input / Output
    USB
    • 4 USB 3.1 Gen2 ports (Type A)
    Video Output
    • 1 HDMI and 1 Display Port
    COM Port
    • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (option)
    Others
    • TPM onboard
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E102

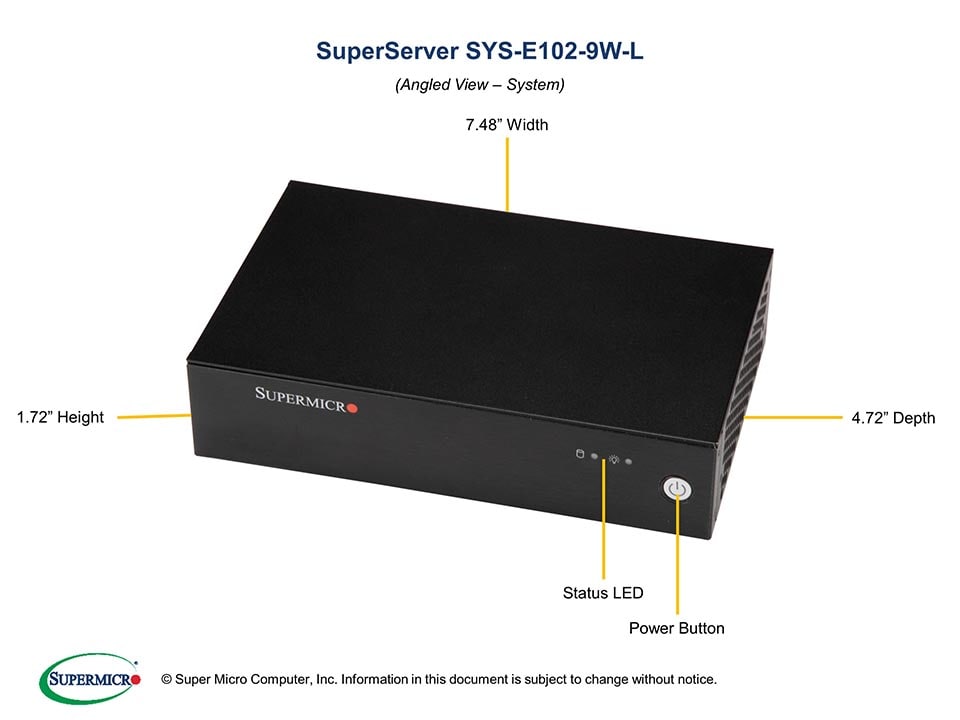

    Dimensions
    Width
    • 7.48" (190mm) / 11.81" (300mm) - pkg.
    Height
    • 1.72" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.72" (120mm) / 11" (279mm) - pkg.
    Weight
    • Gross Weight: 4.5 lbs (2.04 kg)
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
    • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen3 x 1), NVMe support
    Drive Bays
    Internal
    • 1 M.2 2242/2280 B-Key SATA
    • 1 M.2 2242/2280 M-Key (NVMe Support)
    • 1 SATA 2.5” 7mm SSD/HDD
    System Cooling
    Fans
    • Passive CPU Heat Sink and 1x 40mm Chassis Fan
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V ~ +24V DC Wide power range input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • Lockable 12V DC 60W power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SWN-L1Super X11SWN-L Motherboard
    CSE-E1021Embedded Enclosure for 3.5" SBC
    Power Adapter
    MCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft (0-40°C)
    Cooling Fan
    FAN-0170L4140x40x10 mm, 7K RPM, SC101S Chassis Fan, RoHS
    Cable
    CBL-0296L14 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    CBL-PWEX-10291PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
    I/O Shield
    MCP-260-10204-0B1CSE-E102 I/O shield for X11SWN
