  2. Denverton, A2SDV-4C-LN10PF, E300-LED+, 84W power adapter

Denverton, A2SDV-4C-LN10PF, E300-LED+, 84W power adapter

SYS-E300-9A-4CN10P

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10414/image_1920?unique=a1dbe1e

kr 8 209,05 8209.05 NOK kr 8 209,05

kr 8 209,05

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E300-9A-4CN10P is a powerful Mini-1U server designed as a virtual-CPE white box solution, ideal for network security appliances, embedded IoT gateways, and networking edge devices. Equipped with an Intel® Atom® processor C3558, it features a range of I/O options and supports up to 256GB DDR4 memory.

    Key Features

    • Virtual-CPE White Box Solution - Network Security Appliance - Embedded IoT Gateway - Networking Edge Device
    • Intel® Atom® processor C3558, Single socket FCBGA 1310
    • System on Chip
    • 1 Fixed 2.5" drive bay when AOC area is not occupied
    • Up to 256GB registered ECC, up to 64GB unbuf. ECC/non-ECC, DDR4-2133MHz, in 4 DIMM slots
    • 1 PCI-E 3.0 x2 AOC slot (LP)
    • 8 GbE and 2 1G SFP LAN ports
    • 2 USB 3.0, 1 M.2 B Key 3042/2280
    • 1 VGA via BMC
    • 1x 40mm chassis fan, passive CPU heat sink
    • 84W DC power adapter

    Key Applications

    • Virtual-CPE White Box Solution
    • Network Security Appliance
    • Embedded IoT Gateway
    • Networking Edge Device

    Description

    The Supermicro SYS-E300-9A-4CN10P is engineered for versatility and reliability in compact spaces. It includes an Intel® Atom® processor C3558, a single socket FCBGA 1310, capable of supporting up to 256GB registered ECC or up to 64GB unbuffered ECC/non-ECC DDR4 memory across 4 DIMM slots. The system integrates multiple network options with 8 GbE and 2 1G SFP LAN ports. Other features include a PCI-E 3.0 x2 AOC slot, a fixed 2.5" drive bay (if the AOC area is unoccupied), 2 USB 3.0 ports, and 1 VGA port.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E300-9A-4CN10P
    • SuperServer E300-9A-4CN10P ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SDV-4C-LN10PF
    Processor/Cache
    CPU
    • Intel® Atom® processor C3558
    • 4 Cores, 2.2GHz
    • CPU TDP support 16W
    • FCBGA 1310
    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 256GB DDR4 ECC RDIMM
    • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type
    • 2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes
    • 64GB, 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6Gbps) ports
    Network Controllers
    • Quad LAN with Intel® C3000 SoC
    • Quad LAN with Intel® Ethernet Controller I350-AM4
    • Dual LAN with Intel® I210-IS 1G SFP
    Graphics
    • Aspeed AST2400 BMC

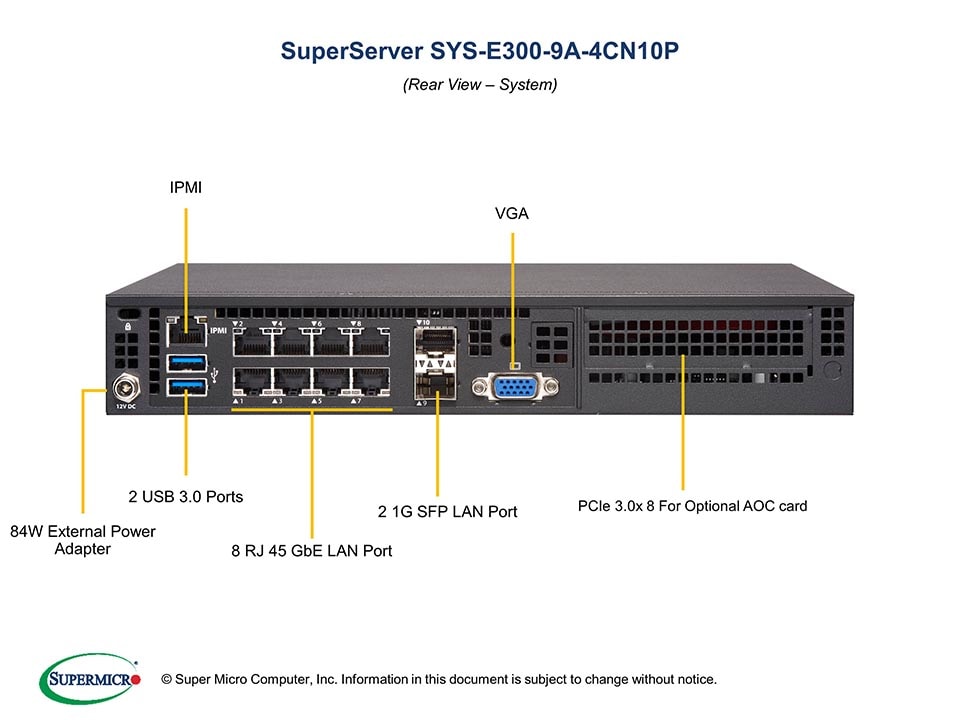

    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 8 RJ45 Gigabit Ethernet LAN ports
    • 2 1G SFP LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Display
    • 1 VGA port
    TPM
    • TPM 2.0 header
    Chassis
    Form Factor
    • Mini-1U
    Model
    • CSE-E300-LED+
    Dimensions
    Width
    • 10.43" (264.8mm) / 15" (381mm) - pkg.
    Height
    • 1.7" (43mm) / 10.87" (276mm) - pkg.
    Depth
    • 8.9" (226mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 6.4 lbs (2.9 kg)
    • Net Weight: 3.8 lbs (1.72 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x2 AOC slot (LP) when SSD is not populated
    Drive Bays / Storage
    Internal
    • 1 Fixed 2.5" drive bay when AOC area is not occupied
    M.2
    • 1 M.2 Key
    • Interface: PCI-E 3.0 x2
    • Form Factor: B Key 3042/2280
    System Cooling
    Fans
    • 1x 40mm chassis fan
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • OOB
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    • CPU thermal trip support for processor protection
    • Power-on mode for AC power recovery
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • 84W DC power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SDV-4C-LN10PF1Super A2SDV-4C-LN10PF Motherboard
    CSE-E300-LED+1Embedded Server BOX for Mini-ITX 1U w/o PWS
    Cooling Fan
    FAN-0065L4140x28mm 13K RPM 4-PIN PWM FAN
    Power Adapter
    MCP-250-10137-0N184W DC Power Adapter
    I/O Shield
    MCP-260-30002-1B1CSE-E300-LED+ I/O shield for A2SDV-4C/8C-LN10PF

    Optional Part List

    Part Number Quantity Description
    Rackmount Kit
    MCP-290-30002-0B-CSE-E300 Rackmount kit (150W/180W adapter supported)
    Riser Card Bracket
    MCP-240-30002-0N-CSE-E300 Riser Card Bracket
