X11SDV-4C-TLN2F, CSE-E300
SYS-E300-9D
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description

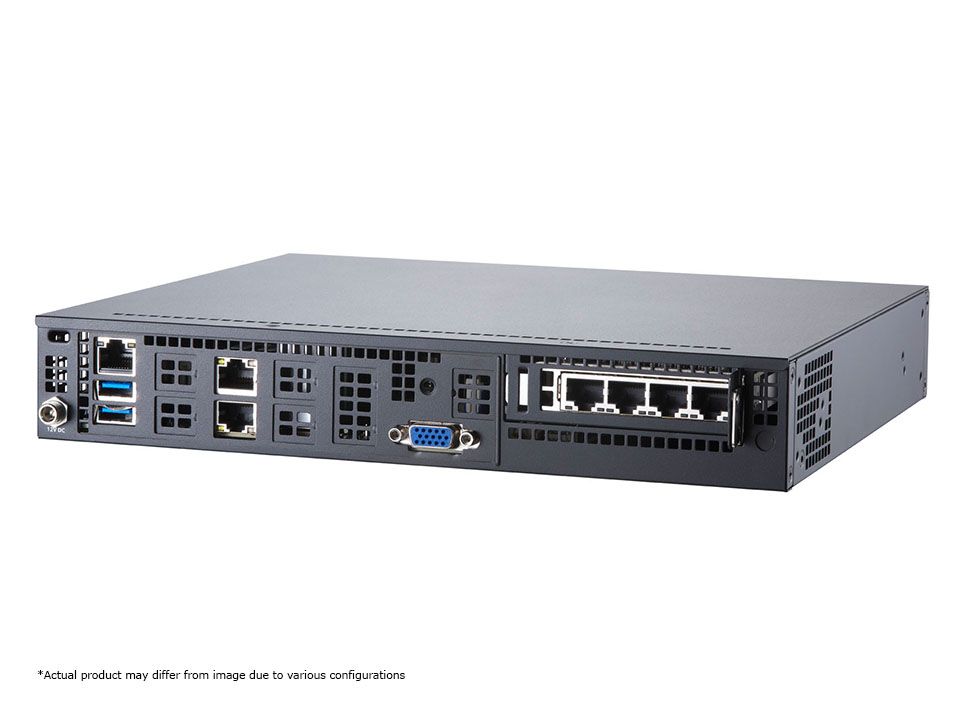

The Supermicro SYS-E300-9D is a compact IoT/embedded system optimized for network security, uCPE, SD-WAN, NFV edge computing, virtualization, and IoT edge/gateway applications. It features an Intel® Xeon® D-2123IT processor, supports up to 512GB of ECC memory, and offers extensive connectivity options.
Key Features
- Network Security Appliance Universal Customer Premise Equipment (uCPE) Software Defined WAN (SD-WAN) NFV Edge Computing Server Virtualization Server IoT Edge Computing / Gateway
- Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W
- System on Chip
- 1 Internal 2.5" drive bay
- Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
- 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe), 1 PCI-E 3.0 x8 (LP) open slot
- 2x 10GBase-T LAN and 1 dedicated LAN for IPMI 2.0
- 1 VGA, 2 USB 3.0, 1 TPM 2.0 header
- 3x 40x28mm 4-PIN PWM Fan
- 150W Lockable DC Power Adapter
Key Applications
- Network security appliance
- uCPE
- SD-WAN
- NFV edge server
- Virtualization server
- IoT edge computing
Description
Despite its compact size, the SYS-E300-9D is designed for extreme in-memory computing and mission-critical applications. It supports up to 512GB DDR4 ECC LRDIMM or 256GB DDR4 ECC RDIMM in 4 DIMM slots, and includes 1 internal 2.5-inch drive bay. The system features dual 10GbE LAN ports, a VGA port, and two USB 3.0 ports. Its numerous applications include network security appliance, uCPE, SD-WAN, NFV edge server, virtualization server, and IoT edge gateway.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-E300-9D |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Cache | |
| CPU |
|
| Cores / Cache |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Display |
|
| TPM |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions | |
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Management | |
| Software |
|
| Power Configurations |
|
| Fan |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Power Supply |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SDV-4C-TLN2F | 1 | Super X11SDV-4C-TLN2F Motherboard |
| CSE-E300 | 1 | Embedded Server BOX for Flex-ATX, Mini-ITX 1U height |
| Power Adapter | ||
| MCP-250-10128-0N | 1 | 150W Lockable Power Adapter with US power cord |
| Cooling Fan | ||
| FAN-0065L4 | 3 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Riser Card | ||
| RSC-RR1U-E8 | - | RSC-RR1U-E8 (Rev 4.00) Riser Card |
| Chassis Parts | ||
| MCP-290-30002-0B | - | CSE-E300 Rackmount kit (150W/180W adapter supported) |
| Cable | ||
| CBL-CUSB-0975 | - | RJ45 SERIAL Cable for Console |
