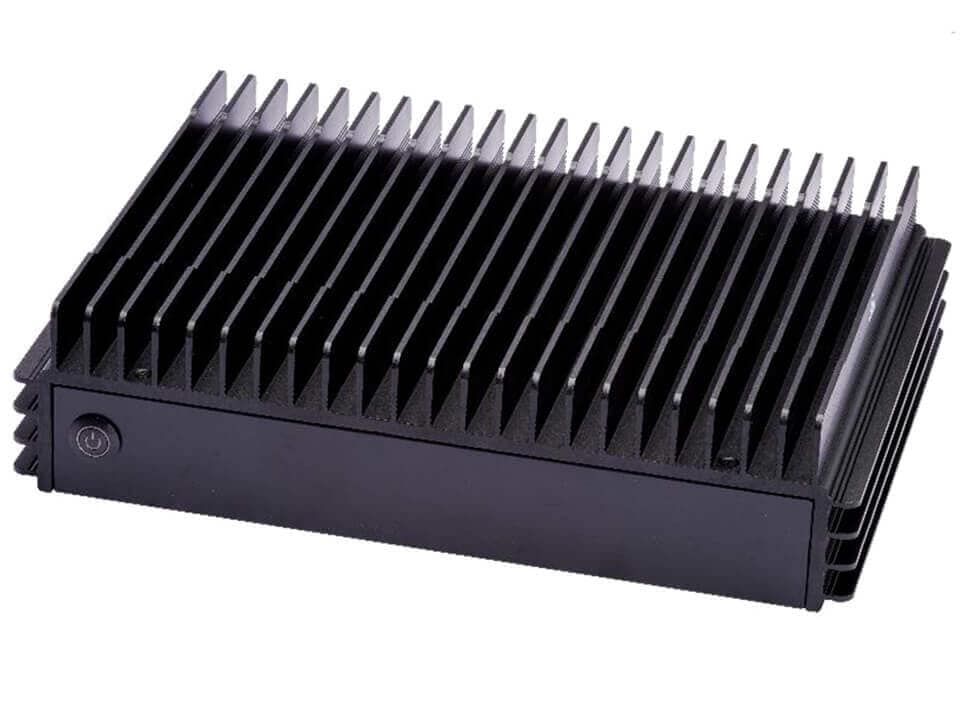

Xeon D Fanless Embedded, CSE-E302iL + MBD X12SDV-4C-SP6

SYS-E302-12D-4C

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 1 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10514/image_1920?unique=f7d9088

kr 13 685,98 13685.98 NOK kr 13 685,98

kr 13 685,98

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E302-12D-4C is a compact, durable embedded system with remarkable performance, versatility, and advanced security features for IoT, network security appliances, SD-WAN, and embedded networking applications.

    Key Features

    • Wall Mount Bracket
    • Intel® Ice Lake Xeon D-1718T 10MB 4 Cores 2.6GHz, 46W
    • Up to DDR4 2933MHz 256GB RDIMM or 128GB RDIMM
    • 6 Networking Interface (2 x25G SFP28, 4 x 1GbE)1 Dedicated IPMI LAN
    • 1x 2.5" SATA drives and 1x M.2 M-Key 2280
    • Fanless CoolingOperating Temperature:  0°C to 45°C (32°F to 113°F)
    • 180W 12V Lockable DC Power Adapter

    Key Applications

    • IoT Gateway
    • Network Security Appliance
    • SD WAN
    • Embedded Networking Applications
    • Retail
    • Industrial Automantion
    • Artificial Intelligence
    • Machine Learning

    Description

    The Supermicro SYS-E302-12D-4C is designed to meet the demanding needs of modern IoT, network security, and embedded networking environments. With its Intel® Xeon® D-1718T processor, support for up to 256GB DDR4 memory, and versatile networking interfaces, it ensures robust performance and scalability. The fanless design and wide operating temperature range make it ideal for industrial and retail applications. Key features include support for 2.5" SATA and M.2 drives, comprehensive management software, and enhanced security with TPM 2.0.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E302-12D-4C
    Motherboard
    Installed Motherboard
    • Super X12SDV-4C-SP6F-01
    Processor
    CPU
    • Single FCBGA-2227
    • Intel® Xeon® Processor D-1718T
    Core Count
    • Up to 4C/8T; Up to 10MB Cache
    Note
    • Supports up to 46W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 4 RJ45 1GBASE-T
    • 2 SFP28 25GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP28 25 GbE LAN port(s)
    • 4 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • ACPI 6.3
    • UEFI 2.7
    • SMBIOS 3.3
    • PCI FW 3.0
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Watch Dog Function
    • Power Button Function
    • Restore on AC Power Loss
    • Front USB Port(s)
    • Rear USB Port(s)
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E302iL
    Dimensions and Weight
    Height
    • 3" (76 mm)
    Width
    • 11.6" (295 mm)
    Depth
    • 8.1" (206 mm)
    Package
    • 12" (H) x 16.45" (W) x 7.6" (D)
    Weight
    • Gross Weight: 12 lbs (5.44 kg)
    • Net Weight: 8 lbs (3.63 kg)
    Palletized Packing (W x H x L)
    • 50.79" (1290 mm) x 87.8" (2230 mm) x 34.25" (870 mm)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off
    LED
    • Power status
    • System information
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 NVMe slot (E-key 2230)
    • 1 M.2 PCIe 3.0 x2 NVMe/SATA slot (B-key 2280/3042/3052)
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" NVMe/SATA drive bay

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
    Wall mount/VESA mount
    MCP-290-30201-0B1WALL / VESA mount kit with adapter holder
