Xeon D Fanless Embedded, CSE-E302iL + MBD X12SDV-8C-SP6

SKU: SYS-E302-12D-8C
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 1 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10515/image_1920?unique=2495218

kr 21 470,90 21470.9 NOK kr 21 470,90 Ekskl. mva

kr 21 470,90 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-E302-12D-8C is a powerful, compact edge server designed for IoT, network security, and embedded applications. With an Intel Xeon 8-Core processor, support for up to 256GB DDR4 memory, and numerous connectivity options, it is ideal for space-constrained environments.

    Nøkkelfunksjoner

    • Wall Mount Bracket
    • Intel® Ice Lake Xeon D-1736NT 15MB 8 Cores 2.7GHz QAT 20G, 67W
    • Up to DDR4 2933MHz 256GB RDIMM or 128GB RDIMM
    • 6 Networking Interface (2 x25G SFP28, 4 x 1GbE)1 Dedicated IPMI LAN
    • 1x 2.5" SATA drives and 1x M.2 M-Key 2280
    • Fanless CoolingOperating Temperature:  0°C to 35°C (32°F to 95°F)
    • 180W 12V Lockable DC Power Adapter

    Viktige bruksområder

    • IoT Gateway
    • Network Security Appliance
    • SD WAN
    • Embedded Networking Applications
    • Retail
    • Industrial Automantion
    • Artificial Intelligence
    • Machine Learning

    Beskrivelse

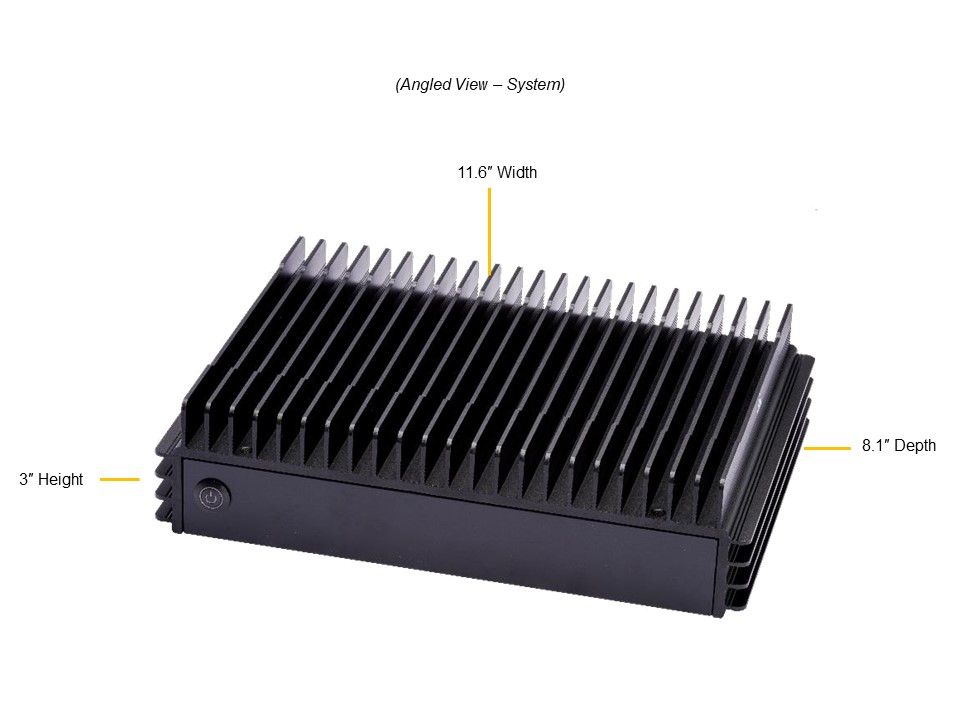

    Despite its compact size, SYS-E302-12D is designed to handle edge server computing and mission-critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 11.6" x 3" x 8.1 inches and weighing slightly over 8 lbs. This particular IoT/embedded system is optimized for network security appliance, software defined WAN (SD-WAN), Edge computing server, Artificial Intelligence, and IoT edge computing / gateway.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E302-12D-8C
    Motherboard
    Installed Motherboard
    • Super X12SDV-8C-SP6F-01
    Processor
    CPU
    • Single FCBGA-2227
    • Intel® Xeon® Processor D-1736NT
    Core Count
    • Up to 8C/16T; Up to 15MB Cache
    Note
    • Supports up to 67W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 4 RJ45 1GBASE-T
    • 2 SFP28 25GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP28 25 GbE LAN port(s)
    • 4 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • ACPI 6.3
    • UEFI 2.7
    • SMBIOS 3.3
    • PCI FW 3.0
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Watch Dog Function
    • Power Button Function
    • Restore on AC Power Loss
    • Front USB Port(s)
    • Rear USB Port(s)
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E302iL
    Dimensions and Weight
    Height
    • 3" (76 mm)
    Width
    • 11.6" (295 mm)
    Depth
    • 8.1" (206 mm)
    Package
    • 12" (H) x 16.45" (W) x 7.6" (D)
    Weight
    • Gross Weight: 12 lbs (5.44 kg)
    • Net Weight: 8 lbs (3.63 kg)
    Palletized Packing (W x H x L)
    • 50.79" (1290 mm) x 87.8" (2230 mm) x 34.25" (870 mm)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off
    LED
    • Power status
    • System information
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 NVMe slot (E-key 2230)
    • 1 M.2 PCIe 3.0 x2 NVMe/SATA slot (B-key 2280/3042/3052)
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" NVMe/SATA drive bay

    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
    Wall mount/VESA mount
    MCP-290-30201-0B1WALL / VESA mount kit with adapter holder
