  2. [NR]CSE-E403BiF-000NDBP2 + X14SBW-TF,HF,RoHS

[NR]CSE-E403BiF-000NDBP2 + X14SBW-TF,HF,RoHS

SKU: SYS-E403-14B-FRN2T
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

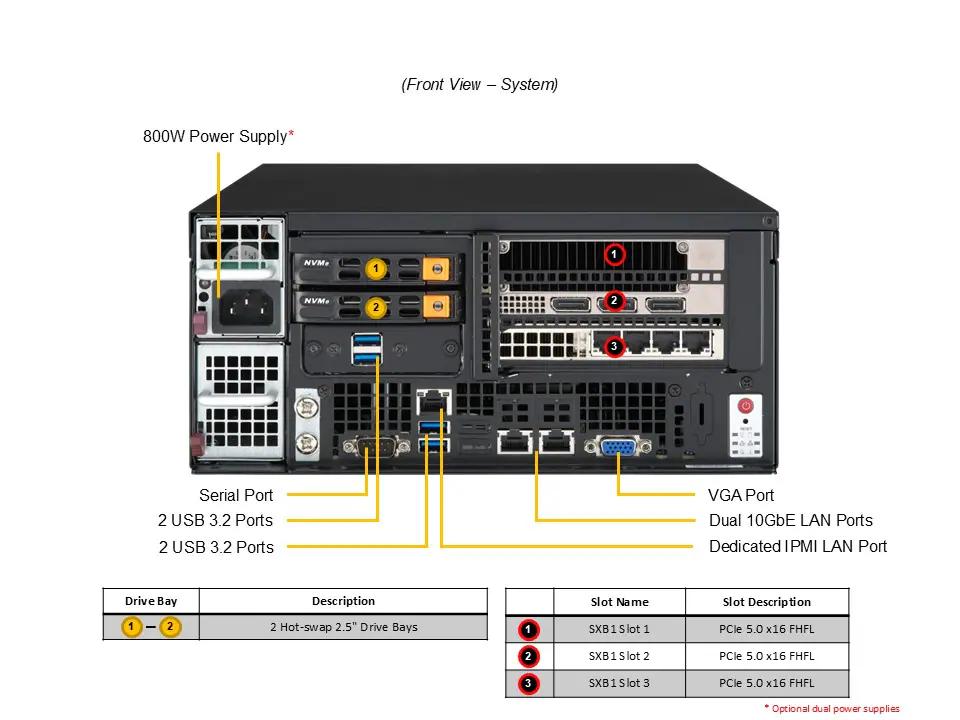

https://safeconsulting.no/web/image/product.template/12863/image_1920?unique=9fe4ff9

kr 14 898,64 14898.64 NOK kr 14 898,64 Ekskl. mva

kr 14 898,64 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Featuring Intel Xeon 6700 processors, this server supports 1TB DDR5 memory and multiple PCIe slots for optimized industrial automation and AI applications. Includes advanced Ethernet connectivity and robust power management.

    Nøkkelfunksjoner

    • Single Intel® Xeon® 6 6700 series processors with E-cores up to 300W with air cooling
    • Up to 8 DIMMs supporting up to 1TB DDR5-6400 RDIMM
    • 2 RJ45 10GBASE-T + 1 RJ45 1GbE
    • Up to 3 PCIe 5.0 x16 FHFL slots
    • Up to 2 front hot-swap 2.5" NVMe + 2 internal fixed 2.5" SATA drive bays
    • 1 Redundant 800W Platinum Level power supply
    • Fan-based Embedded chassis with 16" (406.4mm) depth

    Viktige bruksområder

    • Multi-Access Edge Computing (MEC)
    • Universal Customer Premise Equipment (uCPE)
    • Industrial Automation
    • Artificial Intelligence (AI) on Edge
    • Machine Learning (ML)
    • Smart Retail/Medical Expert Systems

    Beskrivelse

    The SuperServer SYS-E403-14B-FRN2T features a single Intel Xeon 6 6700 series processor, supporting up to 1TB DDR5 memory. It includes up to 3 PCIe 5.0 x16 FHFL slots, front hot-swap NVMe, and internal fixed SATA drive bays, all powered by a redundant 800W Platinum Level power supply for industrial and AI edge applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E403-14B-FRN2T
    Motherboard
    Installed Motherboard
    • Super X14SBW-TF
    Processor
    CPU
    • Single Socket E2 (LGA-4710)
    • Intel® Xeon® 6700 series processors with E-cores
    Core Count
    • Up to 144C/144T; Up to 108MB Cache
    Note
    • Supports up to 300W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: L40, RTX 6000 Ada Generation, L4, A2
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    • 1 RJ45 1GbE with ASPEED AST2600
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    • 2 RJ45 10 GbE LAN ports (Intel® X550)
    USB
    • 4 USB 3.2 Gen1 Type-A ports(Rear)
    Video
    • 1 VGA port(Rear)
    Serial
    • 1 COM port(Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E403BiF-000NDBP2
    Dimensions and Weight
    Height
    • 4.62" (117.348 mm)
    Width
    • 10.5" (266.7 mm)
    Depth
    • 16" (406.4 mm)
    Package
    • 10.4" (H) x 16.4" (W) x 26" (D)
    Weight
    • Gross Weight: 24.5 lbs (10.95 kg)
    • Net Weight: 18.5 lbs (8.16 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power status
    • reset status
    • System information
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 2 front hot-swap 2.5" NVMe drive bays
    • 2 internal fixed 2.5" SATA* drive bays

    • (*SATA support may require additional storage controller and/or cables)
    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 3x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s)
    Power Supply
    1x 800W Redundant Platinum Level (94%) power supply
    Dimension (WxHxL):
    • 54.5 x 40.25 x 220 mm

    Input:
    • 100-127Vac
    • 750W: 100-127Vac / 50-60Hz
    • 200-240Vac
    • 800W: 200-240Vac / 50-60Hz
    • 230-240Vdc
    • 800W: 230-240Vdc / 50-60Hz

    +12V:
    • Max: 62.5A / Min: 0.5A (100Vac-127Vac)
    • Max: 62.5A / Min: 0A (100Vac-127Vac)
    • Max: 66.6A / Min: 0.5A (200Vac-240Vac)
    • Max: 66.6A / Min: 0A (200Vac-240Vac)
    • Max: 66.6A / Min: 0.5A (230Vdc-240Vdc)
    • Max: 66.6A / Min: 0A (230Vdc-240Vdc)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    For internal U.2 drive cable
    CBL-MCIO-1245U2Y-E1MCIO x8 to 2x SFF-8639/U.2+Pwr,45cm,G5,RoHS
    Nvdia GPU rear-support bracket
    MCP-120-82906-0N1GPU bracket for SC829U,219U, Right (nVidia)
