CSE-E403iF-000NBP2 + X11SDW-16C-TP13F + PWS-804P-1R
SYS-E403-9D-16C-FRN13+
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-E403-9D-16C-FRN13+ is a powerful box PC equipped with an Intel® Xeon® D-2183IT Processor featuring 16 cores and 32 threads. It supports up to 512GB of ECC DDR4 memory across 4 DIMM slots.
Key Features
- Intel® Xeon® D-2183IT Processor, 16 Cores, 32 Threads, 2.2 GHz, 100W
- Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
- 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FHFL) slots
- 4 Internal 2.5" drive bays
- M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042
- 9 GbE (one for Ethernet management), 4x 10G SFP+, 1 Dedicated IPMI LAN port
- 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA via BMC
- 800W Redundant Power Supplies Platinum Level Certified
Key Applications
- Multi-Access Edge Computing (MEC) Universal Customer Premise Equipment (uCPE) Network Function Virtualization (NFV) Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Description

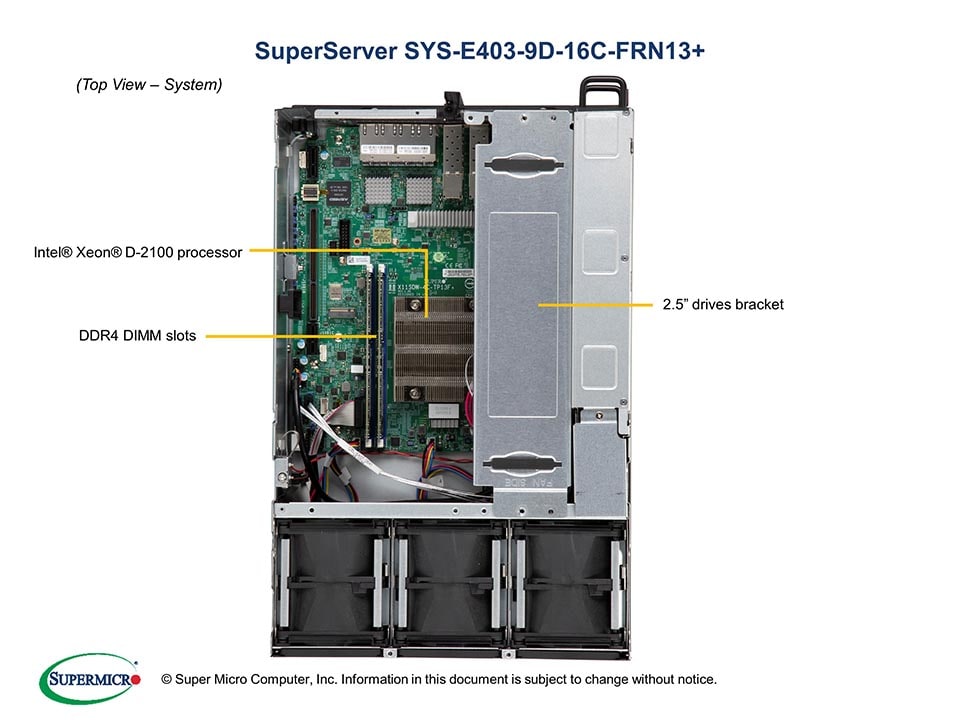

The Supermicro SYS-E403-9D-16C-FRN13+ is designed to meet the demands of edge computing, NFV, and MEC applications. Featuring the Intel® Xeon® D-2183IT Processor with 16 cores, support for up to 512GB ECC memory, dual PCI-E 3.0 slots, multiple GbE, and 10G SFP+ ports, this system ensures connectivity and performance for a wide range of network functions and edge applications. The compact, rugged chassis and redundant power supplies further enhance reliability and uptime, making it an ideal choice for various environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-E403-9D-16C-FRN13+ |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores / Cache |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| M.2 |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Certification |
|
| DC option for: (AC counter-part) |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11SDW-16C-TP13F+ | 1 | Super X11SDW-16C-TP13F+ Motherboard |
| CSE-E403iF-000NDBP2 | 1 | Black 2.5U Embedded redundant BOX for FlexATX MB, W/O PWS |
| Add-on Card / Module | ||
| AOM-SDW-B16X2-P | 1 | AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS |
| Cable 1 | ||
| CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| Cable 2 | ||
| CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS |
| Cable 3 | ||
| CBL-CUSB-0831 | 1 | [NR] USB2.0, 2 PORT,2x TYPE-A to 2X5/P2.54,63cm,26AWG,RoHS |
| Cable 4 | ||
| CBL-PWCD-0260-IS | 4 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH |
| Cable 5 | ||
| CBL-SAST-0641 | 4 | 45cm SATA Cable S-RA 30AWG,RoHS/REACH |
| FAN | ||
| FAN-0201L4 | 3 | 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan |
| Parts | ||
| MCP-260-00153-0B | 1 | 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black |
| Power Supply | ||
| PWS-804P-1R | 2 | 1U 800W 100-240VAC/50-60Hz, and DC240V input |
| Power Distributor | ||
| PDB-PT403-8824 | 1 | PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst |
