  2. [NR]A4SAP-H (Intel N97), CSE-E50, 5xLAN, RoHS

[NR]A4SAP-H (Intel N97), CSE-E50, 5xLAN, RoHS

SKU: SYS-E50-14AM-N5
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/13551/image_1920?unique=ee9bf52

kr 6 064,92 6064.92 NOK kr 6 064,92 Ekskl. mva

kr 6 064,92 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The [NR]A4SAP-H is designed for industrial and retail applications, powered by Intel N97 processor with comprehensive connectivity options. It features DDR5 memory support and multiple LAN ports in a compact fanless chassis. Ideal for digital signage and interactive kiosks.

    Nøkkelfunksjoner

    • Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
    • DDR5-4800MT/s 1 DIMM max 16GB
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042) 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    • 2 RJ45 2.5GbE and 3 RJ45 1GbE
    • Fanless Embedded chassis with 4.64" (118mm) depth
    • 2 USB 2.0 port(s) (front),2 USB 3.2 Gen2 Type-A port(s) (Rear),2 HDMI 1.4 port(s) (Rear)

    Viktige bruksområder

    • Industrial / Automation
    • Healthcare
    • Digital Signage Kiosk, Interactive info system
    • Retail

    Beskrivelse

    The [NR]A4SAP-H is a highly efficient fanless embedded system featuring the Intel Atom Alder Lake-N N97 processor, making it ideal for industrial and automation applications. Equipped with 2 RJ45 2.5GbE and 3 RJ45 1GbE LAN ports, this compact system ensures robust connectivity. The system supports DDR5-4800 memory and offers expansion options with M.2 PCIe slots. Its form factor and rugged design make it suitable for demanding environments, while its RoHS compliance underscores its environmental considerations. Enjoy secure, high-performance operations with cutting-edge management and security features.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SYS-E50-14AM-N5
    Motherboard
    Installed Motherboard
    • Super A4SAP-H
    Processor
    CPU
    • Intel® Processor N97
    Core Count
    • Up to 4C/12T; Up to 6MB Cache
    Note
    • Supports up to 7W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 1 DIMM slots/1 Channels
    • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 2.5GbE with Realtek
    • 3 RJ45 1GbE with Intel® I210-IT
    Input / Output
    LAN
    • 3 RJ45 1 GbE LAN ports (Intel® I210-IT)
    • 2 RJ45 2.5 GbE LAN ports
    USB
    • 2 USB 2.0 ports(front)
    • 2 USB 3.2 PCIe Gen. 2 Type-A ports(Rear)
    Video
    • 2 HDMI 1.4 ports(Rear)
    Serial
    • 1 COM port(Front)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • Supermicro SuperDoctor® 5 (SD5)
    Power configurations
    • ACPI Power Management
    • +12V DC Power Input
    • Control of power-on for recovery from AC power loss
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Secure Boot
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E50
    Dimensions and Weight
    Height
    • 1.72" (44 mm)
    Width
    • 5.82" (148 mm)
    Depth
    • 4.64" (118 mm)
    Package
    • 9.5" (H) x 5.5" (W) x 8" (D)
    Weight
    • No/A
    Available Color
    • Black

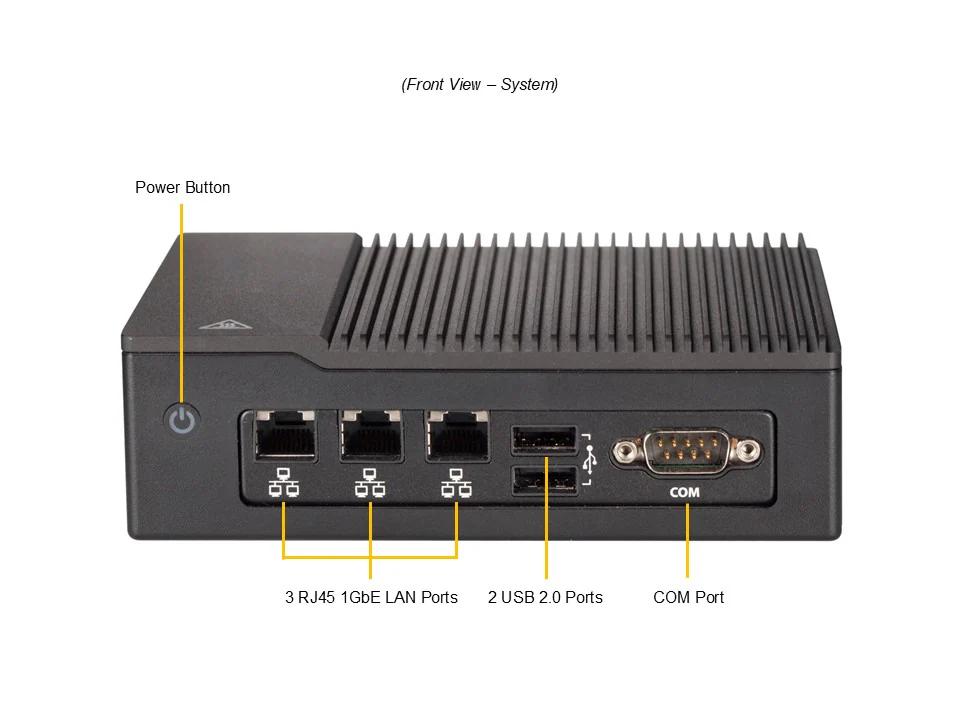

    Front Panel
    Buttons
    • Power On/Off
    LED
    • Power status
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230; USB 2.0)
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042; USB 3.0)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA drive bay

    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 40W power supply
    Dimension (WxHxL):
    • 110 x 32 x 50 mm

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) with 0.7 m/s airflow
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    Din Rail Kit
    MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
