  2. [NR]A4SAP-H (Intel N97), CSE-E50, Dual COM / Audio, RoHS

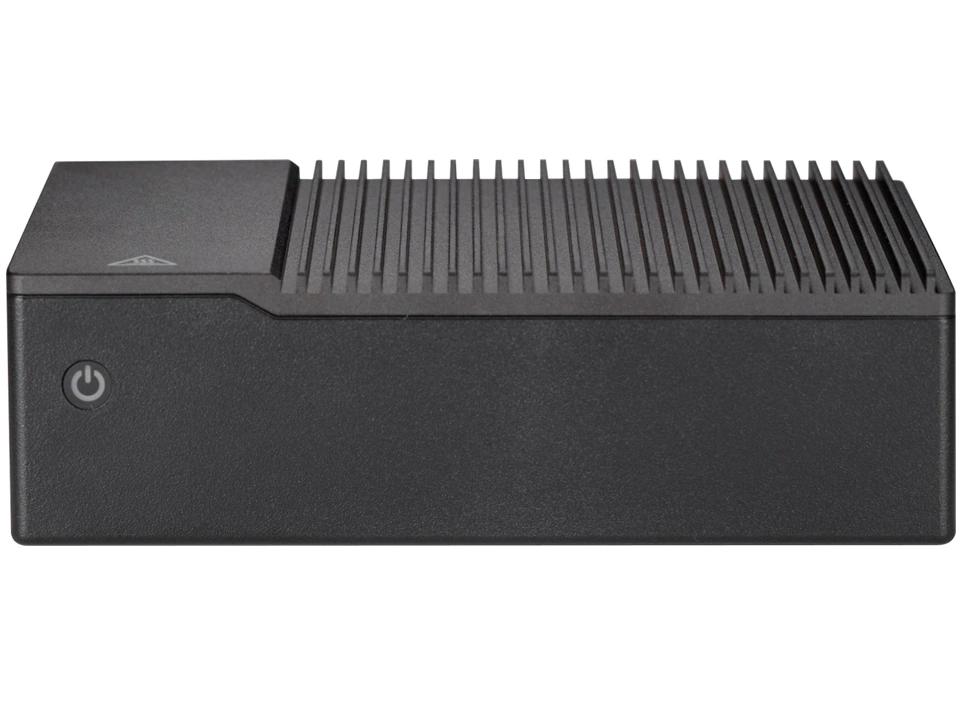

[NR]A4SAP-H (Intel N97), CSE-E50, Dual COM / Audio, RoHS

SKU: SYS-E50-14AM
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/13549/image_1920?unique=ee9bf52

kr 5 538,68 5538.68 NOK kr 5 538,68 Ekskl. mva

kr 5 538,68 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Supermicro [NR]A4SAP-H, powered by Intel N97, is designed for industrial settings, offering durability and efficient performance with plenty of connectivity and expansion options.

    Nøkkelfunksjoner

    • Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
    • DDR5-4800MT/s 1 DIMM max 16GB
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042) 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    • 2 RJ45 2.5GbE (Realtek)
    • Front IP 51 protection (Water/Dust proof)
    • Fanless Embedded chassis with 4.64" (118mm) depth
    • 2 USB 3.2 Gen2 Type-A port(s) (Rear), 1 HDMI 1.4 port(s) (Rear)

    Viktige bruksområder

    • Industrial / Automation
    • Healthcare
    • Digital Signage Kiosk, Interactive info system
    • Retail

    Beskrivelse

    The Supermicro [NR]A4SAP-H featuring Intel® Atom® N97 processor is a robust embedded server tailored for industrial automation, healthcare, and digital signage solutions. It supports DDR5-4800 memory, offers dual 2.5GbE network connectivity, and boasts a fanless chassis design with IP51 front protection. Expandable with M.2 slots, it ensures versatile storage options along with comprehensive power management features. Ideal for environments requiring compact, reliable, and low-power systems.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E50-14AM-L
    Motherboard
    Installed Motherboard
    • Super A4SAP-H
    Processor
    CPU
    • Intel® Processor N97
    Core Count
    • Up to 4C/12T; Up to 6MB Cache
    Note
    • Supports up to 7W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 1 DIMM slots/1 Channels
    • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 2.5GbE with Realtek
    Input / Output
    LAN
    • 2 RJ45 2.5 GbE LAN ports
    USB
    • 2 USB 3.2 PCIe Gen. 2 Type-A ports(Rear)
    Video
    • 1 HDMI 1.4 port(Rear)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • Supermicro SuperDoctor® 5 (SD5)
    Power configurations
    • ACPI Power Management
    • +12V DC Power Input
    • Control of power-on for recovery from AC power loss
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Secure Boot
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E50-L
    Dimensions and Weight
    Height
    • 1.72" (44 mm)
    Width
    • 5.82" (148 mm)
    Depth
    • 4.64" (118 mm)
    Package
    • 9.5" (H) x 5.5" (W) x 8" (D)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off
    LED
    • Power status
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    Drive Bays / Storage
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 40W power supply
    Dimension (WxHxL):
    • 110 x 32 x 50 mm

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) with 0.7 m/s airflow
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    Din Rail Kit
    MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
