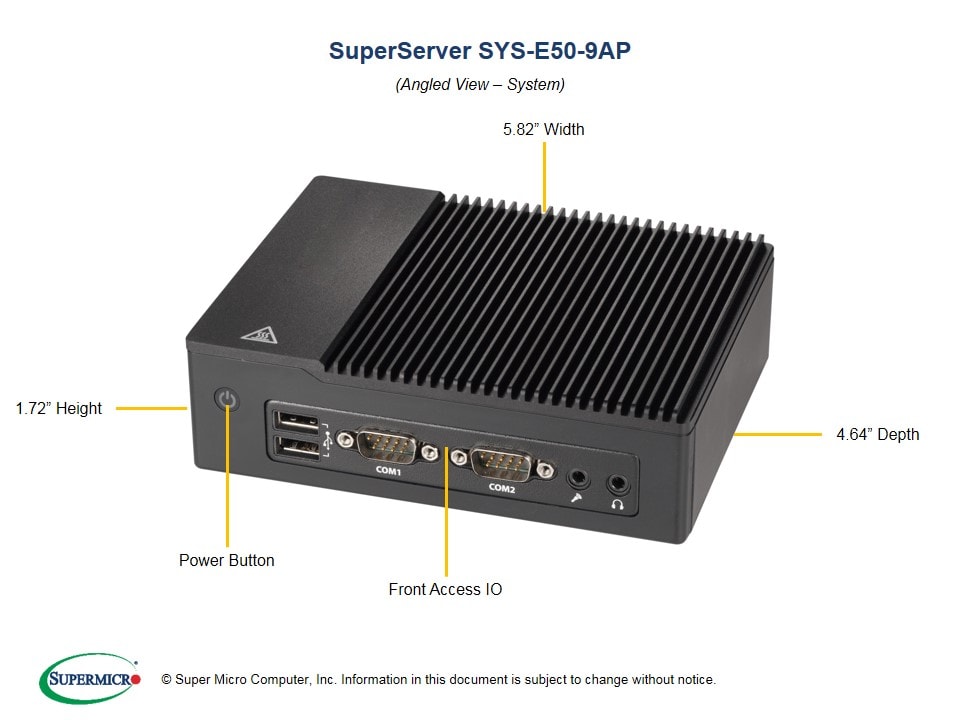

IP51 Embedded Fanless, A2SAP-H, ATOM E3940

SKU: SYS-E50-9AP
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10591/image_1920?unique=dea62d1

kr 4 639,00 4639.0 NOK kr 4 639,00 Ekskl. mva

kr 4 639,00 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Experience the power of the Supermicro SYS-E50-9AP, a robust IoT gateway designed for commercial applications. Equipped with an Intel Atom processor and a variety of connectivity options, it ensures reliable performance and protection against water and dust with its IP51-rated chassis.

    Nøkkelfunksjoner

    • IoT Gateway - Commercial Appliance - IP51 for water/dust proof
    • Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
    • System on Chip
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242/3042 for SATA SSD
    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • 1 Full size Mini-PCIe, 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
    • Dual LAN with Intel I210-IT
    • 2 USB 3.0, 2 USB 2.0, 2 COM (RS-232/422/485), 1 TPM 2.0 onboard
    • Fanless design
    • Lockable 12V DC 40W power adapter

    Viktige bruksområder

    • Industrial Automation
    • Smart Transportation
    • Retail Technology
    • Smart Agriculture

    Beskrivelse

    The Supermicro SYS-E50-9AP is an advanced IoT gateway tailored for commercial environments. Featuring an Intel Atom E3940 processor and up to 8GB of DDR3L memory, this system delivers robust performance and reliable connectivity with dual LAN ports, multiple USB and COM ports, and TPM 2.0 security. Its fanless design, combined with an IP51-rated chassis, ensures durability and silent operation. Ideal for applications requiring high performance and ruggedness, this gateway also supports a variety of expansion options including Mini-PCIe and M.2.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SYS-E50-9AP
    • SuperServer E50-9AP ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAP-H
    Processor/Cache
    CPU
    • Intel® Atom® processor E3940
    • Single socket FCBGA 1296
    • 9.5W, 4C
    System Memory
    Memory Capacity
    • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
    Memory Type
    • DDR3L up to 1866MHz
    DIMM Sizes
    • 8GB, 4GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-IT
    Audio
    • ALC 888S HD Audio
    Graphics
    • Intel® HD Graphics
    • HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports
    Video
    • 2 HDMI ports
    COM
    • 2 COM (RS-232/422/485)
    TPM
    • 1 TPM 2.0 onboard
    Chassis
    Form Factor
    • Proprietary
    Model
    • CSE-E50
    Dimensions
    Width
    • 5.82" (148mm)
    Height
    • 1.72" (44mm)
    Depth
    • 4.64" (118mm)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe
    • 1 Half size Mini-PCIe
    M.2
    • 1 M.2 B-Key 2242/3042 for storage
    • 1 M.2 E-Key 2230 for communication module
    Drive Bays / Storage
    Internal
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD OR1 M.2 B-Key 2242/3042 for SATA SSD
    System Cooling
    Fans
    • Fanless design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:-20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flowwith M.2 SATA SSD0°C to 40°C (32°F to 104°F)with HDD
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 40W lockable 12V DC power adapter

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAP-H1Super A2SAP-H Motherboard
    CSE-E501IP51 Fanless Chassis for 2.5" PICO
    Add-on Card / Module
    AOM-PICO-01-P1Add-on I/O Module for Pico-ITX A2SAP and embedded IoT system
    Cable 1
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Parts
    MCP-210-05001-0B1Front IO for CSE-E50 with 2xUSB2.0, 2xCOM
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
