  2. IP51 Embedded PC w/wifi, A2SAP,HF,RoHS

IP51 Embedded PC w/wifi, A2SAP,HF,RoHS

SKU: SYS-E50-9AP-WIFI
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10590/image_1920?unique=ad0c029

kr 4 385,30 4385.3 NOK kr 4 385,30 Ekskl. mva

kr 4 385,30 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-E50-9AP-WIFI is a robust and compact solution designed for industrial applications. It features a fanless and cable-less design with IP51 rated chassis, providing protection against water and dust. Powered by the Intel Atom E3940 processor, it ensures reliable performance with minimal maintenance.

    Nøkkelfunksjoner

    • Built-in Wifi Module and Antenna - IP51 with plastic chassis design for water/dust proof - Cable-less design for easy maintenance - Fanless design with palm-size dimension
    • Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
    • System on Chip
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242/3042 for SATA SSD
    • Up to 8GB unbuffered non-ECC SO- DIMM, DDR3L-1866MHz, in 1 socket
    • 1 Full size Mini-PCIe, 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042
    • Dual LAN with Intel I210-IT; Dual Band Wireless and Bluetooth 4.2
    • 2 USB 3.0, 2 USB 2.0, 2 COM (RS-232/422/485), 1 TPM 2.0 onboard
    • Fanless design
    • Lockable 12V DC 40W power adapter

    Viktige bruksområder

    • Industrial automation
    • Digital signage
    • IoT gateway
    • Edge computing
    • Remote monitoring
    • Network security

    Beskrivelse

    The Supermicro SYS-E50-9AP-WIFI offers an efficient and reliable solution for industrial computing needs. This compact system incorporates a fanless and cable-less design, minimizing maintenance and ensuring durability. It comes equipped with an Intel Atom processor, dual LAN, WiFi, Bluetooth, and multiple I/O ports, making it versatile for various applications. The IP51-rated chassis provides protection against water and dust, ensuring the system's longevity in harsh environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SYS-E50-9AP-Wifi
    • SuperServer E50-9AP-Wifi ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SAP-H
    Processor/Cache
    CPU
    • Intel® Atom® processor E3940
    • Single socket FCBGA 1296
    • 9.5W, 4C
    System Memory
    Memory Capacity
    • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
    Memory Type
    • DDR3L up to 1866MHz
    DIMM Sizes
    • 8GB, 4GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-IT
    Audio
    • ALC 888S HD Audio
    Graphics
    • Intel® HD Graphics
    • HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    Wifi
    • Dual Band Wireless and Bluetooth 4.2 (FCC ID in US and CE in Europe)
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports
    Video
    • 2 HDMI ports
    COM
    • 2 COM (RS-232/422/485)
    TPM
    • 1 TPM 2.0 onboard
    Chassis
    Form Factor
    • Proprietary
    Model
    • CSE-E50
    Dimensions
    Width
    • 5.82" (148mm)
    Height
    • 1.72" (44mm)
    Depth
    • 4.64" (118mm)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Colors
    • Black

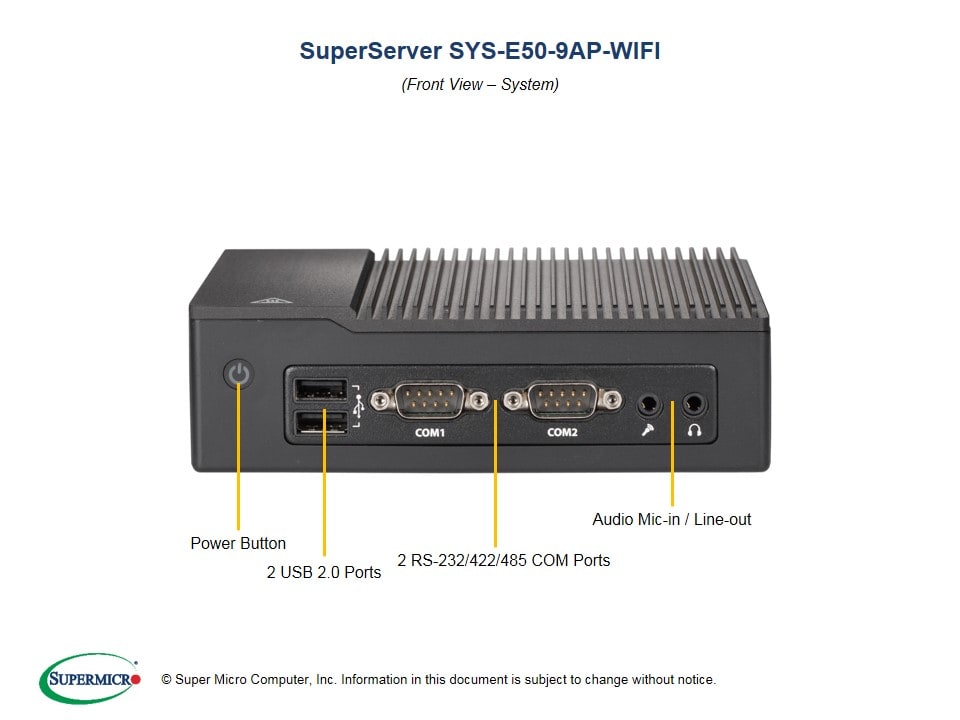

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe
    • 1 Half size Mini-PCIe
    M.2
    • 1 M.2 B-Key 2242/3042 for storage
    Drive Bays / Storage
    Internal
    • 1 SATA 3.0 for 7mm 2.5" SATA SSD OR1 M.2 B-Key 2242/3042 for SATA SSD
    System Cooling
    Fans
    • Fanless design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 50°C (32°F to 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 40W lockable 12V DC power adapter

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SAP-H1Super A2SAP-H Motherboard
    CSE-E501IP51 Fanless Chassis for 2.5" PICO
    Add-on Card / Module
    AOC-WLAN-8265NGWMG1Intel Dual Band Wireless AC 8265, HF, RoHS
    AOM-PICO-01-P1Add-on I/O Module for Pico-ITX A2SAP and embedded IoT system
    Cable 1
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Parts
    MCP-210-05001-0B1Front IO for CSE-E50 with 2xUSB2.0, 2xCOM
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
