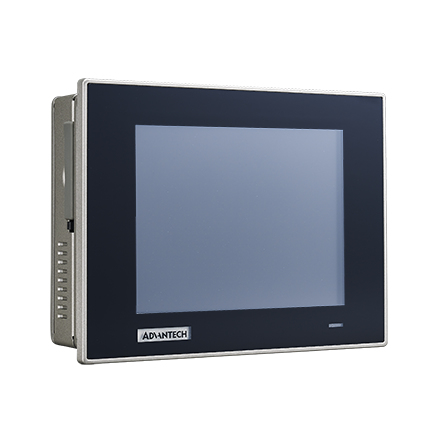

5.7" QVGA, TI AM3517 600MHz,256MB with WinCE 6.0

SKU: TPC-61T-E3AE
GTIN (EAN/UPC): 4719896001775
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13093/image_1920?unique=7b4a84b

kr 7 353,44 7353.4400000000005 NOK kr 7 353,44 Ekskl. mva

kr 7 353,44 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    Advantech TPC-61T-E3AE. Display diagonal: 14.5 cm (5.7"), Display resolution: 640 x 480 pixels, Touchscreen. Processor family: Intel Atom®, Processor frequency: 1.75 GHz. Internal memory: 4 GB, Internal memory type: DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics. Operating system installed: Windows CE. Product colour: Black

    Nøkkelfunksjoner

    • Black
    • Intel Atom® E3827 1.75 GHz
    • Touchscreen 14.5 cm (5.7") 640 x 480
    • 4 GB DDR3L-SDRAM 1 x 4 GB
    • Card reader integrated
    • Intel® HD Graphics
    • Ethernet LAN
    • Windows CE

    Viktige bruksområder

    • Industrial Automation
    • Human Machine Interfaces
    • Web-Browser Terminal
    • Environmental Monitoring Systems
    • Data Acquisition Systems
    • Machine Control
    • Process Visualization
    • Embedded Computing Applications
    • Factory Data Collection
    • Remote Control Stations

    Beskrivelse

    The TPC-651T thin client terminal with a 5.7"/6.5" VGA LCD, low power embedded Intel® Atom™ E3827 1.75 GHz Dual-core Processor and 4GB DDR3L SDRAM provides computing performance in a compact fanless system. To enhance its durability, the TPC-651T is true-flat touch screen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C and includes full size mini-PCIe slot to extend the functionality and meet a variety of automation applications needs. Through the Mini-PCIe slot, Advantech iDoor technology (optional) can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and Battery-backup MRAM.

    Produktspesifikasjoner

    Specification Details
    Display
    Display diagonal
    • 5.7
    Display resolution
    • 640 x 480
    Touchscreen
    • Yes
    Display brightness
    • 550
    Contrast ratio (typical)
    • 800:1
    Display number of colours
    • 262144 colours
    Processor
    Processor manufacturer
    • Intel
    Processor family
    • Intel Atom
    Processor model
    • E3827
    Processor cores
    • 2
    Processor threads
    • 2
    Processor frequency
    • 1.75
    Processor cache
    • 1
    Processor cache type
    • L2
    Thermal Design Power (TDP)
    • 8
    L2 cache
    • 1
    PCI Express slots version
    • 2.0
    Processor socket
    • BGA 1170
    Processor lithography
    • 22
    Processor operating modes
    • 32-bit,64-bit
    Stepping
    • D0
    Processor codename
    • Bay Trail
    FSB Parity
    • No
    Maximum number of PCI Express lanes
    • 4
    PCI Express configurations
    • 1x1,1x4,2x1
    Processor code
    • SR1X7
    Tjunction
    • 110
    Maximum internal memory supported by processor
    • 8
    Conflict-Free processor
    • Yes
    Memory types supported by processor
    • DDR3L-SDRAM
    Memory clock speeds supported by processor
    • 1333
    Memory
    Internal memory
    • 4
    Internal memory type
    • DDR3L-SDRAM
    Maximum internal memory
    • 8
    Memory slots
    • 1x SO-DIMM
    Memory layout (slots x size)
    • 1 x 4
    Storage
    Card reader integrated
    • Yes
    Compatible memory cards
    • CFast
    Graphics
    On-board graphics card model
    • Intel HD Graphics
    On-board graphics card base frequency
    • 542
    On-board graphics card burst frequency
    • 792
    Number of displays supported (on-board graphics)
    • 2
    Network
    Wi-Fi
    • No
    Ethernet LAN
    • Yes
    Ports & interfaces
    Ethernet LAN (RJ-45) ports
    • 2
    USB 2.0 ports quantity
    • 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    • 1
    Design
    Product colour
    • Black
    VESA mounting
    • Yes
    Software
    Operating system installed
    • Windows CE
    Processor special features
    Intel® Turbo Boost Technology
    • No
    Intel® Hyper Threading Technology (Intel® HT Technology)
    • No
    Intel® My WiFi Technology (Intel® MWT)
    • No
    Intel® Anti-Theft Technology (Intel® AT)
    • No
    Intel® Wireless Display (Intel® WiDi)
    • No
    Intel® High Definition Audio (Intel® HD Audio)
    • Yes
    Enhanced Intel SpeedStep Technology
    • Yes
    Intel® Quick Sync Video Technology
    • Yes
    Intel® Clear Video HD Technology (Intel® CVT HD)
    • No
    Intel Clear Video Technology
    • No
    Intel® Insider™
    • No
    Intel® InTru™ 3D Technology
    • No
    Intel Flex Memory Access
    • No
    Intel® AES New Instructions (Intel® AES-NI)
    • Yes
    Intel Trusted Execution Technology
    • No
    Intel Enhanced Halt State
    • No
    Intel VT-x with Extended Page Tables (EPT)
    • Yes
    Intel Demand Based Switching
    • No
    Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
    • No
    Intel 64
    • Yes
    Execute Disable Bit
    • Yes
    Thermal Monitoring Technologies
    • No
    Processor package size
    • 25 x 27
    CPU configuration (max)
    • 1
    Embedded options available
    • Yes
    Graphics & IMC lithography
    • 22
    Intel Virtualization Technology for Directed I/O (VT-d)
    • No
    Intel Virtualization Technology (VT-x)
    • Yes
    Intel Dual Display Capable Technology
    • No
    Intel FDI Technology
    • No
    Intel Rapid Storage Technology
    • No
    Intel Fast Memory Access
    • No
    Processor ARK ID
    • 78478
    Power
    Power consumption (typical)
    • 19.2
    Weight & dimensions
    Width (with stand)
    • 199
    Depth (with stand)
    • 152
    Height (with stand)
    • 58.9
    Weight (with stand)
    • 1500
    Operational conditions
    Operating temperature (T-T)
    • -20 - 60
    Storage temperature (T-T)
    • -30 - 70
    Operating relative humidity (H-H)
    • 10 - 95
    Certificates
    Certification
    • BSMI, CCC, CE, FCC Class A, UL, EAC
    Other features
    Cabling technology
    • 10/100/1000Base-T(X)
    Display included
    • Yes
