Beskrivelsesammendrag
Teltonika TRB140. Product colour: Grey. Antenna connector type: SMA. Processor frequency: 1200 MHz, Internal memory: 128 MB, Flash memory: 512 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cable types supported: Cat6. SIM card type: MiniSIM
Product Highlights
- 10,100,1000 Mbit/s
- Built-in processor 1200 MHz 128 MB 512 MB
- SMA
- Grey
Beskrivelse

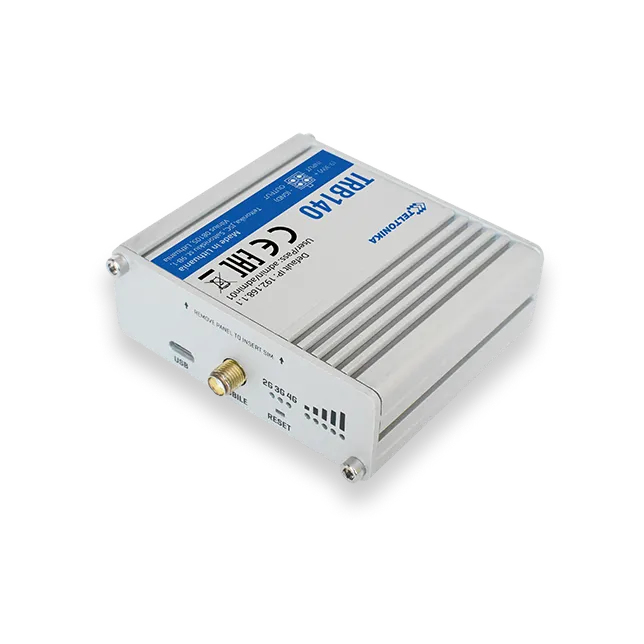

TRB140
Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Produktspesifikasjoner
Design
| Specification | Details |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
Features
| Specification | Details |
|---|---|
| Antenna connector type | SMA |
Performance
| Specification | Details |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
Network
| Specification | Details |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cable types supported | Cat6 |
Security
| Specification | Details |
|---|---|
| Firewall security | Yes |
Ports & interfaces
| Specification | Details |
|---|---|
| USB 2.0 ports quantity | 1 |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital output ports quantity | 2 |
Management features
| Specification | Details |
|---|---|
| Reset button | Yes |
Power
| Specification | Details |
|---|---|
| DC input voltage | 9 - 30 V |
Weight & dimensions
| Specification | Details |
|---|---|
| Width | 60 mm |
| Depth | 70 mm |
| Height | 18 mm |
| Weight | 155.8 g |
Operational conditions
| Specification | Details |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
