  2. 4-ch UI and 2-ch DO IoT Wireless I/O Module

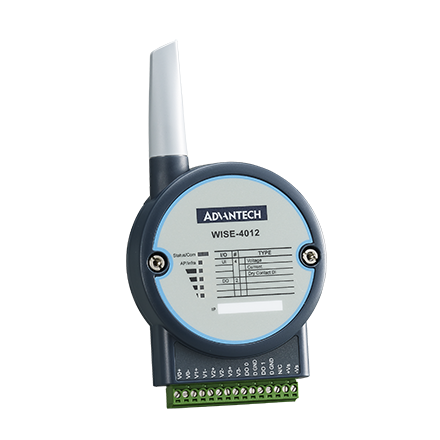

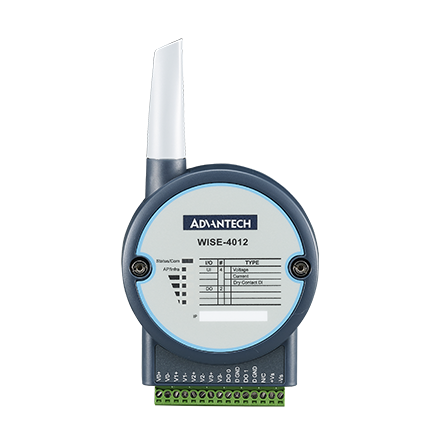

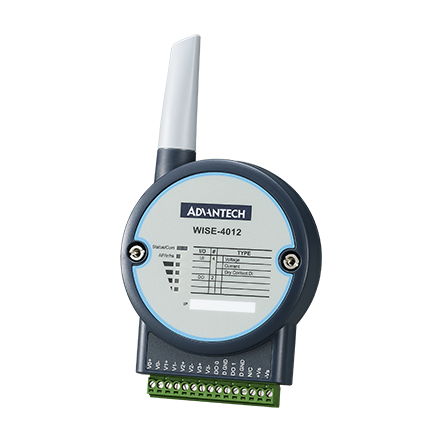

4-ch UI and 2-ch DO IoT Wireless I/O Module

SKU: WISE-4012-AE
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13198/image_1920?unique=e08d79a

kr 2 124,78 2124.78 NOK kr 2 124,78 Ekskl. mva

kr 2 124,78 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The WISE-4012-AE is a versatile IoT Wireless I/O Module featuring 4-ch UI and 2-ch DO. Supports various protocols including Modbus/TCP and MQTT for comprehensive IoT integration.

    Nøkkelfunksjoner

    • 2.4 GHz Wi-Fi Connectivity
    • Supports RESTful APIs
    • 3000 Vrms Isolation
    • JSON Format Data Exchange

    Viktige bruksområder

    • Industrial Automation
    • IoT Data Logging
    • Wireless Monitoring
    • Smart Buildings

    Beskrivelse

    Featuring a 2.4 GHz IEEE 802.11b/g/n WLAN, the WISE-4012-AE offers both wireless client and server modes without AP/router dependency. Supports mobile device web configuration with HTML5 and provides file-based cloud storage and local logging. Equipped with 3000 Vrms isolation protection and supports a wider range of inputs and protocols for enhanced IoT integration.

    Produktspesifikasjoner

    Specification Details
    Analog Input
    Burn-out Detection
    • Yes
    Channels
    • 4
    Input Range
    • ±150 mV to ±10 V, 0~20 mA
    Isolation Protection
    • 4,200 VDC
    Input Type
    • V, A, Dry contact DI
    Resolution
    • 16-bit
    Sampling Rates
    • 10/100 Hz (sum)
    General
    Connectors
    • 1 x Plug-in screw terminal
    Humidity (Operating)
    • 20~95% RH (non-condensing)
    Humidity (Storage)
    • 0~95% RH (non-condensing)
    Protocol
    • Modbus/TCP
    • TCP/IP
    • UDP
    • HTTP
    • DHCP
    • MQTT
    Hardware
    Certification
    • CE
    • FCC Class A
    • R&TTE
    • NCC
    • SRRC
    • RoHS
    • KC
    LED Indicators
    • Status
    • Communication (TX/RX)
    • AP/Infra
    • Signal Strength
    Power Consumption
    • 2.5 W @ 24 VDC
    Power Input
    • 10~30 VDC
    Watchdog Timer
    • 1.6 s
    Digital Input
    Channels
    • 4 (TTL)
    Input Voltage
    • Dry Contact, Logic level 0: open, Logic level 1: close to Iso.GND
    Isolation Protection
    • 4,200 VDC
    Digital Output
    Channels
    • 2 (TTL)
    Isolation Protection
    • 4,200 VDC
    Environment
    Operating Temperature
    • -25~70 °C (-13~158 °F)
    Relative Humidity
    • 20~95% RH (non-condensing)
    Storage Humidity
    • 0~95% RH (non-condensing)
    Storage Temperature
    • -40~85 °C (-40~185 °F)
    Power Requirements
    Input Voltage
    • 10~30 VDC
    Mechanical
    Dimension (W x H x D)
    • 80 x 148 x 25 mm
    Enclosure
    • PC
    Mounting
    • DIN-rail, Wall, Stack
    Weight (Net)
    • 0.15 kg
    Wireless Communication
    Frequency Band
    • IEEE 802.11 b/g/n 2.4 (GHz)
    Standard (Technology)
    • WIFI
