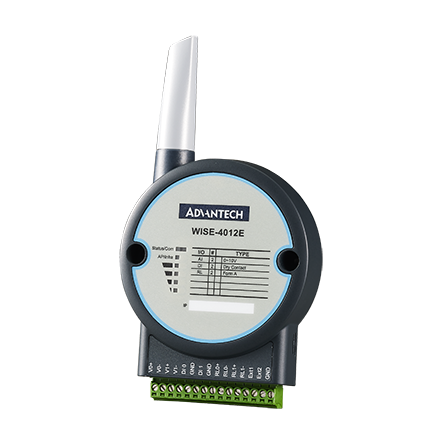

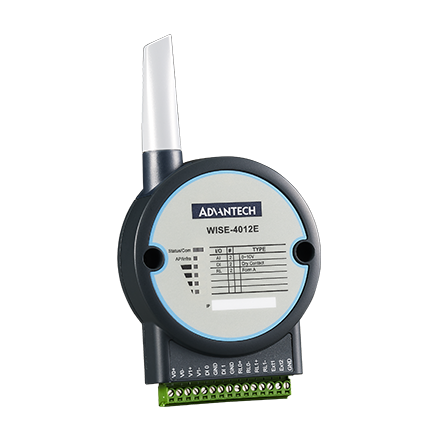

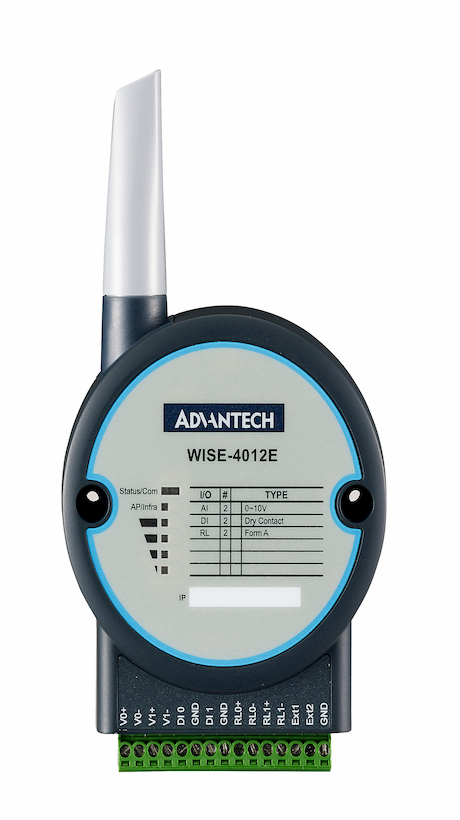

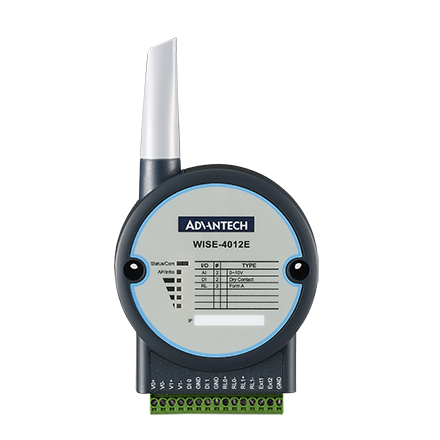

WISE-4012E IoT Developer Kit with WebAccess

SKU: WISE-4012E-AE-WA
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13199/image_1920?unique=832ddf4

kr 1 857,23 1857.23 NOK kr 1 857,23 Ekskl. mva

kr 1 857,23 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    WISE-4012E IoT Developer Kit features WebAccess/SCADA, offering 4-channel UI and 2-channel DO capabilities with wireless connectivity.

    Nøkkelfunksjoner

    • 2.4 GHz IEEE 802.11b/g/n WLAN
    • 2-ch DI and 2-ch Relay Output
    • Supports Modbus/TCP and RESTful web service
    • Mobile web configuration with HTML5
    • Includes WebAccess/SCADA demo

    Viktige bruksområder

    • IoT Wireless I/O Development
    • Wireless Sensor Connectivity
    • Remote Data Acquisition
    • Home Automation Systems
    • Industrial Monitoring

    Beskrivelse

    Offering a 2.4 GHz IEEE 802.11b/g/n WLAN, the WISE-4012E IoT Developer Kit includes 2-ch 0~10V Input, 2-ch DI, and 2-ch Relay Output, with WebAccess/SCADA demo project and extension board. Supporting mobile device web configuration with HTML5, it also supports Modbus/TCP with RESTful web service, cloud storage, and local logging. Includes micro USB cable for power input.

    Produktspesifikasjoner

    Specification Details
    Analog Input
    Channels
    • 2
    Input Range
    • 0~10 V
    Resolution(Bits)
    • 12-bit
    Sampling Rates(S/s)
    • 10 Hz (sum)
    General
    Connectors
    • 1 x Plug-in screw terminal, 1 x Micro USB
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
    Hardware
    Certification
    • CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, ANATEL
    LED Indicators
    • Status/Com, AP/Infra, Signal Strength
    Power Consumption
    • 1.5 W @ 5 VDC
    Power Input
    • 5 VDC
    Watchdog Timer
    • 1.6 s
    Digital Input
    Channels
    • 2 (TTL)
    Input Voltage
    • Dry Contact Logic level 0: open Logic level 1: close to Iso.GND
    Environment
    Operating Temperature
    • -25~70 °C (-13~158 °F)
    Relative Humidity
    • 20~95% RH (non-condensing)
    Storage Humidity
    • 0~95% RH (non-condensing)
    Storage Temperature
    • -40~85 °C (-40~185 °F)
    Relay Output
    Channels
    • 2 Form A
    Contact Rating (Resistive)
    • 1 A @ 30 VDC
    Relay Type
    • 2 x Form A
    Resistance
    • Min. 1 GΩ min.
    Power Requirements
    Input Voltage
    • 5 VDC
    Mechanical
    Dimension (W x H x D)
    • 80 x 139 x 25 mm
    Enclosure
    • PC
    Weight (Net)
    • 0.16 kg
    Wireless Communication
    Frequency Band
    • IEEE 802.11 b/g/n 2.4 (GHz)
    Standard (Technology)
    • WIFI
