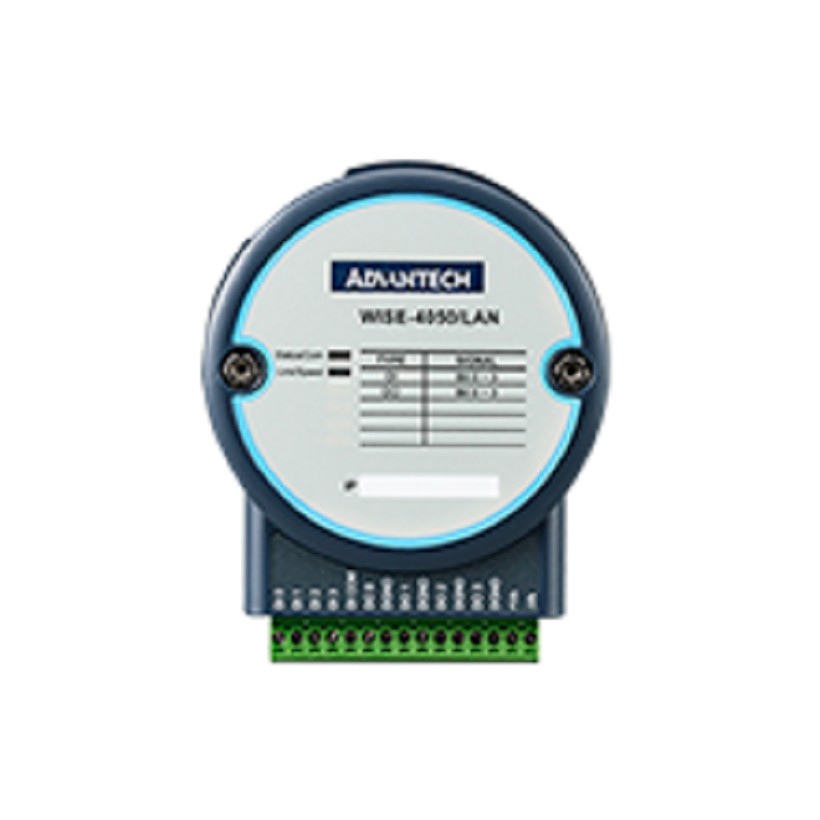

4-ch DI and 4-ch DO IoT Ethernet I/O Module

SKU: WISE-4050LAN-B
GTIN (EAN/UPC): 4719879824926
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13043/image_1920?unique=1b7ede1

kr 1 899,82 1899.82 NOK kr 1 899,82 Ekskl. mva

kr 1 899,82 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The WISE-4050LAN-B is a 4-channel DI and 4-channel DO IoT Ethernet I/O module supporting Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, and MQTT. It offers local logging with RTC timestamps and is suitable for mobile web configuration.

    Nøkkelfunksjoner

    • Supports Modbus/TCP and MQTT protocols
    • Local logging with RTC timestamps
    • Compatible with HTML5 web configurations
    • Reliable 10~30VDC power input
    • High isolation protection

    Viktige bruksområder

    • Industrial Automation
    • Remote Monitoring Systems
    • Building Management Systems
    • Smart Metering
    • IoT Data Logging

    Beskrivelse

    This IoT Ethernet I/O Module comes with 4 DI and 4 DO channels, offering versatile connectivity with 1 x RJ45 and a 15-pin plug-in screw terminal. It supports a broad range of protocols and can operate in harsh environmental conditions with temperature tolerance from -40 to 70°C.

    Produktspesifikasjoner

    Specification Details
    General
    Connectors
    • 1 x RJ45, 1 x 15-pin plug-in screw terminal
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
    Communications
    Interface
    • Ethernet
    Isolated Digital Input
    Channels
    • 4
    Input Voltage
    • Dry Contact: Logic level 1: close to DI COM, Logic level 0: open; Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
    Isolation Protection
    • 3000 Vrms
    Environment
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Storage Humidity
    • 0~95% RH (non-condensing)
    Storage Temperature
    • -40~85 °C (-40~185 °F)
    Isolated Digital Output
    Channels
    • 4
    Isolation Protection
    • 3000 Vrms
    Output Type
    • Sink
    Output Voltage
    • 0~30 VDC
    Sink Current
    • 500 mA max./channel
    Power Requirements
    Input Voltage
    • 10~30 VDC
