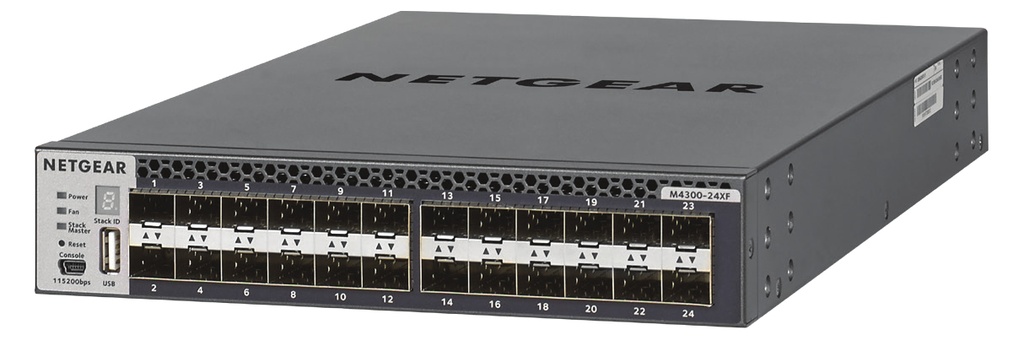

Netgear XSM4324FS-100NES

SKU:

XSM4324FS-100NES

kr 25 707,65 25707.65 NOK kr 25 707,65

kr 25 707,65

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

NETGEAR M4300-24XF. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Nøkkelfunksjoner

Managed L3
Quality of Service (QoS) support
Console port: RJ-45/Mini-USB
10G support 10GBASE-T
MAC address table: 16000 entries Switching capacity: 480 Gbit/s
64 Access Control List (ACL)
1U Rack mounting Stackable
Power supply included

Viktige bruksområder

Server Aggregation
Wireless Access
Unified Communications
Video-over-IP
Enterprise Edge Networking
SMB Core Infrastructure
Data Center Connectivity
Network Backbone
IPTV Support
Advanced Routing Services

Beskrivelse

The M4300 Stackable L3 Managed Switch Series comes with 40G, 10G and 1G models in a variety of form factors including PoE+ full provisioning. M4300 Switch Series delivers IPv4/IPv6 rich services for mid-enterprise edge and SMB core with mixed stacking between 40-, 10- and 1-Gigabit models. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing. M4300 is ideal for server aggregation, wireless access, unified communications and Video-over-IP.

Produktspesifikasjoner

Specification	Details
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP+ module slots quantity	24
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Network
Networking standards	IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10GBASE-T
Port mirroring	Yes
Full duplex	Yes
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Auto-sensing	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4093
Optical fiber
Fiber ethernet cabling technology	10GBASE-X
Data transmission
Switching capacity	480
Throughput	357
MAC address table	16000
Store-and-forward	Yes
Latency (1 Gbps)	2.333
Latency (10 Gbps)	1.323
Number of queues	8
Static route	Yes
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	32
Security
DHCP features	DHCP client,DHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 relay,DHCPv6 snooping
Access Control List (ACL)	Yes
Access Control List (ACL) rules	64
IGMP snooping	Yes
BPDU filtering/protection	Yes
Multicast features
Multicast support	Yes
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPF,OSPFv3,RIP,RIP-1,RIP-2
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black,Grey
Airflow direction	Front-to-back airflow
Performance
Physical stacking (units)	8
Built-in processor	Yes
Processor frequency	800
Internal memory	1024
Flash memory	256
Noise level	39.7
Mean time between failures (MTBF)	968447
Power
Power supply included	Yes
Number of power supply units	1
Power consumption (max)	87.2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Heat dissipation	330.6
Weight & dimensions
Width	212
Depth	345
Height	44
Weight	3560
Logistics data
Harmonized System (HS) code	85176990
