Rome 7302 DP/UP 16C/32T 3.0G 128M 155W 4094, HF, RoHS
100-000000043
Summary Description

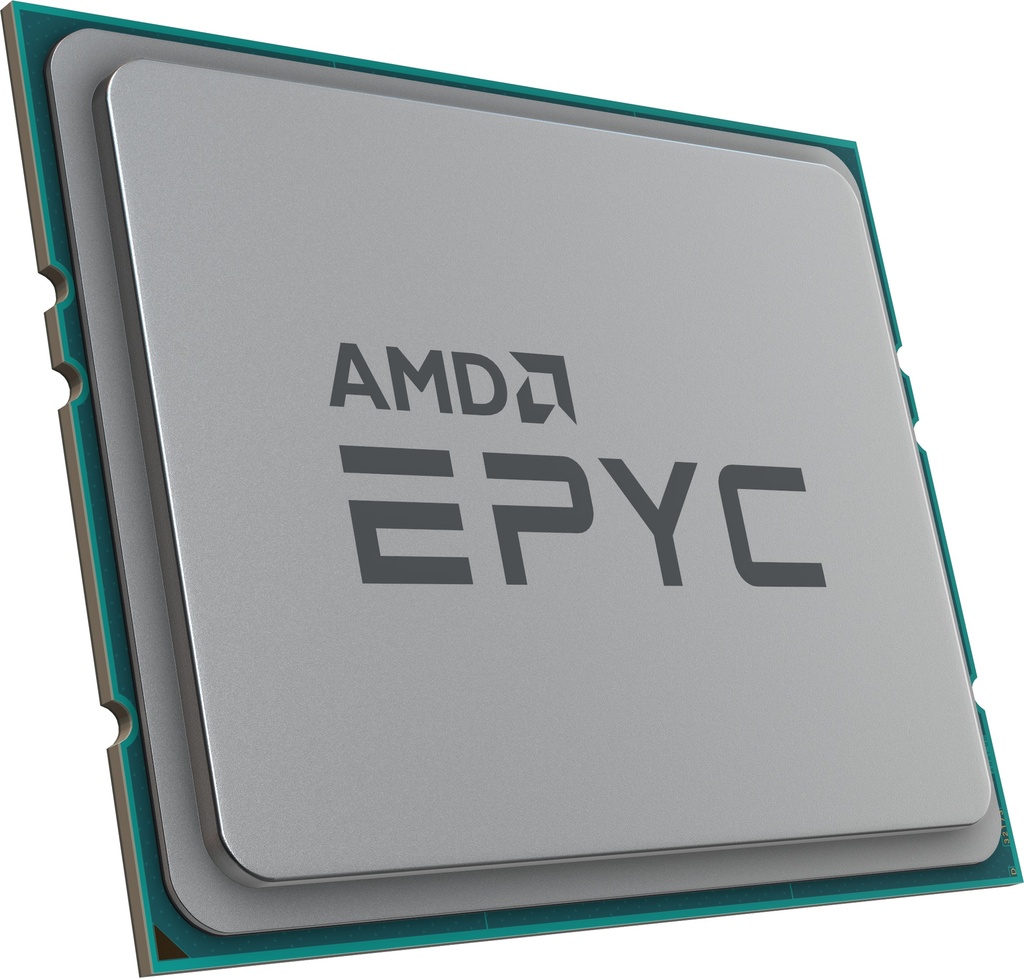

AMD EPYC 7302 processor. AMD EPYC family, Socket SP3, 7 nm lithography. Supports DDR4-SDRAM and 3200 MHz memory clock speeds with octa-channel memory. Market segment: Server.
Key Features
- 16 cores and 32 threads
- Base frequency: 3 GHz
- Boost frequency: 3.3 GHz
- 128 MB L3 Cache
- Supports DDR4-SDRAM
- 7nm process technology
- Socket SP3
- TDP: 155W
- PCIe 4.0 support
- Octa-channel memory support
Key Applications
- Enterprise applications
- Virtualized environments
- Cloud computing
- Software-defined infrastructure
- High-performance computing
- Data analytics
- In-memory databases
- Production rendering
- Big data analytics
- Oil and gas exploration
Description
The 2nd Gen AMD EPYC 7302 delivers groundbreaking performance and security for data centers. With 16 cores and 32 threads, it’s built on a 7nm process and provides 128 MB of L3 cache. This processor supports DDR4-SDRAM at 3200 MHz and PCIe 4.0 for high-speed data transfer. Enabling secure and efficient operations, it’s ideal for enterprise applications, virtualized environments, and high-performance computing. Featuring 'Hardened at the Core' protection, it includes Secure Boot, SME, and SEV features to safeguard data integrity.
Product Specifications
| Specification | Details |
|---|---|
| Processor | |
| Processor Manufacturer |
|
| Processor Model |
|
| Processor Base Frequency |
|
| Processor Family |
|
| Processor Cores |
|
| Processor Socket |
|
| Component For |
|
| Processor Lithography |
|
| Processor Threads |
|
| Processor Operating Modes |
|
| Processor Boost Frequency |
|
| Processor Cache |
|
| Processor Cache Type |
|
| Thermal Design Power (TDP) |
|
| Box |
|
| Cooler Included |
|
| Memory | |
| Memory Types Supported By Processor |
|
| Memory Clock Speeds Supported By Processor |
|
| Memory Channels |
|
| Memory Bandwidth (Max) |
|
| Graphics | |
| On-Board Graphics Card |
|
| Discrete Graphics Card |
|
| On-Board Graphics Card Model |
|
| Discrete Graphics Card Model |
|
| Features | |
| Market Segment |
|
| Maximum Number of PCI Express Lanes |
|
| PCI Express Slots Version |
|
| Logistics Data | |
| Harmonized System (HS) Code |
|
