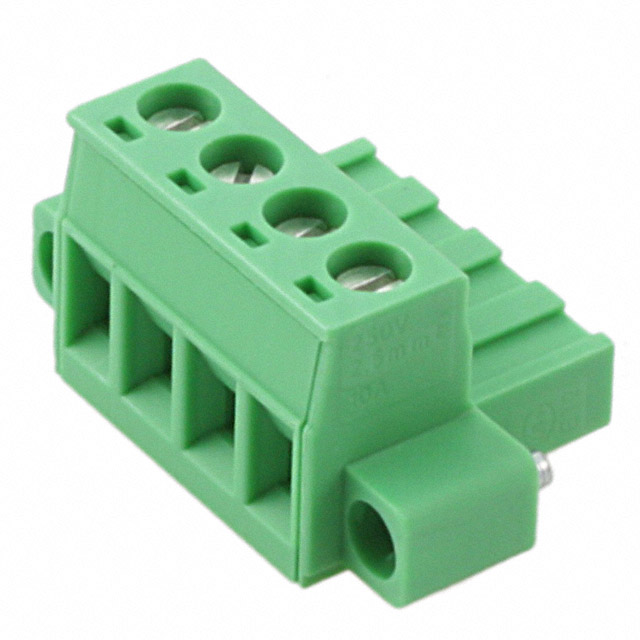

POWER CONNECTOR FOR ADVANTEC MIC7500 PC

1652003234
https://safeconsulting.no/web/image/product.template/7454/image_1920?unique=8d6572e

kr 12.23 12.23 NOK kr 12.23

kr 12.23

Not Available For Sale

    This combination does not exist.

    Summary Description

    This is a durable power connector suitable for various industrial applications. It features a plug with female sockets and a screw termination style.

    Key Features

    • Plug and play design
    • Robust screw termination
    • High current and voltage rating
    • Durable polyamide housing
    • 180° wire entry orientation

    Key Applications

    • Industrial machinery connectivity
    • Control panels
    • Power distribution units
    • Automation systems
    • Instrumentation

    Description

    The POWER CONNECTOR FOR ADVANTEC MIC7500 PC is designed for industrial applications, providing reliable connectivity with a screw termination style. It features a 4-position plug with female sockets, free hanging mounting type, and 180° wire entry orientation. The product is built to handle up to 15 A current and 300 V voltage (UL-rated), with a robust polyamide (PA) nylon housing.

    Product Specifications

    Specification Details
    General
    Type
    • Plug, Female Sockets
    Number of Positions
    • 4
    Positions Per Level
    • 4
    Number of Levels
    • 1
    Pitch
    • 0.197" (5.00mm)
    Plug Wire Entry
    • 180°
    Termination Style
    • Screw - Rising Cage Clamp
    Mounting Type
    • Free Hanging (In-Line)
    Current - IEC
    • 12A
    Voltage - IEC
    • 630 V
    Current - UL
    • 15 A
    Voltage - UL
    • 300 V
    Wire Gauge or Range - AWG
    • 12-30 AWG
    Wire Gauge or Range - mm²
    • 0.2-2.5mm²
    Color
    • Green
    Material Flammability Rating
    • UL94 V-0
    Screw Size
    • M3
    Torque - Screw
    • 0.5-0.6 Nm (4.4-5.3 Lb-In)
    Wire Strip Length
    • 7mm
    Housing Material
    • Polyamide (PA), Nylon
