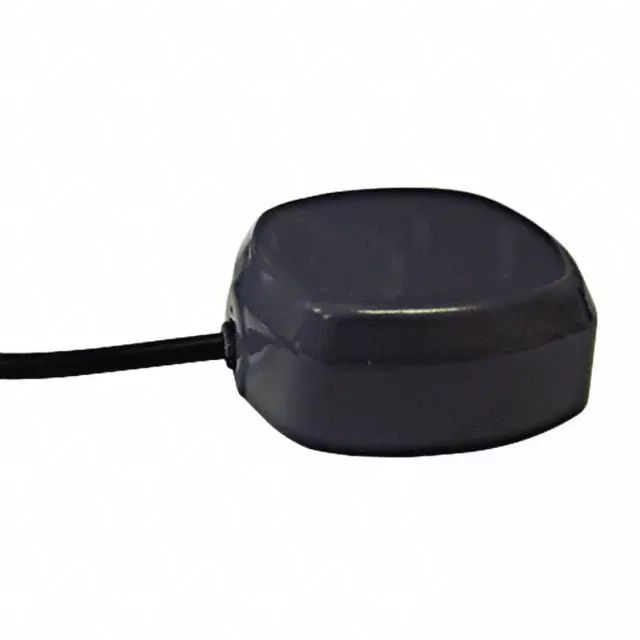

ANT L1/G1/B1/E1 SMA 3M CABLE

33-4721-00-3000
https://safeconsulting.no/web/image/product.template/6814/image_1920?unique=8d6572e

kr 563.98 563.98 NOK kr 563.98

kr 563.98

Not Available For Sale

    This combination does not exist.

    Summary Description

    This RF antenna module is optimized for use in navigation systems like BeiDou, Galileo, Glonass, and GPS. It features a frequency range of 1,559GHz to 1,606GHz and provides a 4.5dBic gain with reliable IP67 protection.

    Key Features

    • Enhanced signal gain of 4.5dBic
    • Operates in UHF band (1GHz – 2GHz)
    • Wide frequency range (1,559GHz – 1,606GHz)
    • Durable IP67 protection
    • Adhesive and magnetic mounting options

    Key Applications

    • BeiDou navigation systems
    • Galileo navigation systems
    • Glonass navigation systems
    • GPS navigation systems

    Description

    The ANT L1/G1/B1/E1 SMA 3M Cable is an RF antenna module ideal for use with BeiDou, Galileo, Glonass, and GPS systems. It operates in the UHF band range of 1,561GHz to 1,602GHz with a frequency range of 1,559GHz to 1,606GHz, providing a gain of 4.5dBic. Designed with an IP67 rating, this antenna offers both adhesive and magnetic mounting options.

    Product Specifications

    Specification Details
    General Specifications
    Manufacturer
    • Calian
    Series
    • Accutenna®
    Operating Status
    • Active
    Packaging
    • Bulk
    RF Specifications
    RF Family/Standard
    • Navigation
    Frequency Group
    • UHF (1GHz – 2GHz)
    Frequency (Center/Band)
    • 1,561GHz, 1,575GHz, 1,59GHz, 1,602GHz
    Frequency Range
    • 1,559GHz – 1,606GHz
    Return Loss
    • -
    VSWR
    • 1.5
    Antenna Specifications
    Type
    • Module
    Number of Bands
    • 2
    Gain
    • 4.5dBic
    Features
    • Cable - 3m, LNA, Filter
    Mechanical Specifications
    Termination Style
    • SMA male
    Mounting Type
    • Adhesive, Magnetic
    Height (Max)
    • 0.563" (14.30mm)
    Ingress Protection
    • IP67
    Application
    Key Applications
    • BeiDou, Galileo, Glonass, GPS
