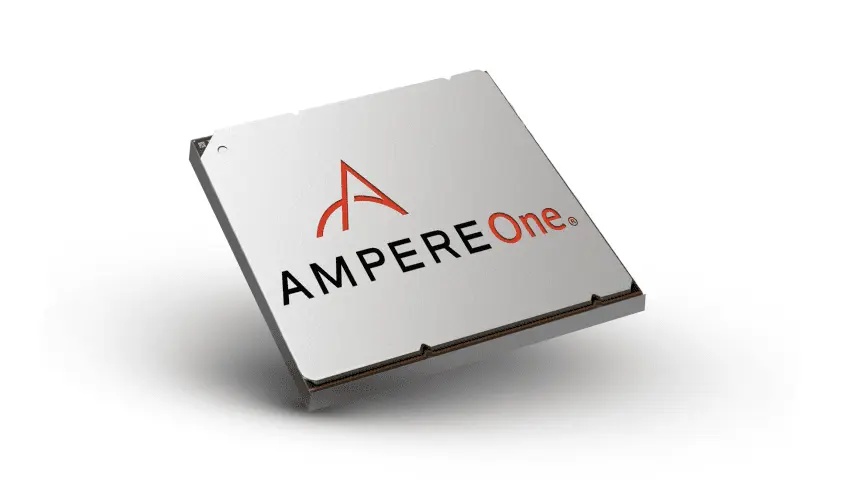

AmpereOne, A128-34X, 3.4GHz, 128C, 64MB, 390W, FCLGA5964

SKU:

A128-34X,AC-30165

kr 26,978.34 26978.34 NOK kr 26,978.34 VAT Excluded

kr 26,978.34 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

AmpereOne A128-34X is a high-performance processor with 128 cores running at 3.4GHz. Featuring advanced virtualization, it supports up to 8TB DDR5 memory, making it suitable for demanding enterprise and cloud applications.

Key Features

128 high-performance cores
Base frequency of 3.4GHz
Advanced virtualization support
8-channel DDR5 memory support
Enterprise-grade RAS features

Key Applications

Data Centers
Cloud Computing
Enterprise Servers
High-Performance Computing

Description

The AmpereOne A128-34X processor offers unmatched performance with 128 cores and a base frequency of 3.4GHz. With 64MB cache, it handles the most demanding workloads. With advanced virtualization capabilities and enterprise-grade RAS features, it ensures reliable operation in mission-critical environments. The processor supports up to 8TB of DDR5 memory, delivering optimum performance for data-intensive applications.

Product Specifications

Specification	Details
Processor Specifications
Custom Core Count	96 cores - 192 cores
Private Caches	L2: 2 MB per Core L1: 16 KB Instruction and 64 KB Data per Core
System Level Cache	64 MB
Memory	8 Channel DDR5 with ECC Up to 16 DIMMs (2DPC) and 4 TB per socket for a total of 8 TB on a two socket system
Connectivity	128 Lanes PCIe PCIe Gen. 5 (optional 64 lane CCIX for multi-socket support) 32 Controllers Bifurcation to x4
System Features	- Interrupt Virtualization - IO Virtualization - Enterprise RAS: Memory - SECDED and Symbol Based ECC protected; other memory SECDED ECC protected throughout - Coherent Mesh Interconnect with distributed snoop filtering
Cloud Native Features
Core Features	Single Threaded Cores Consistent Freq up to 3.7 GHz 2x128b Vector Units: FP16, Bfloat16, Int8 and Int16
Scalable Management
Management Features	Fine Grained Power Mgmt Advanced Droop Detection Process Aging Monitors
Security
Security Features	Secure Virtualization Single-Key Memory Encryption Memory Tagging
Performance Consistency
Performance Features	Mesh Congestion Mgmt Memory/SLC QoS Enforcement Nested Virtualization
Other Specifications
Instruction Set Compatibility	Armv8.6+, SBSA 5
Independent System and Power Controllers	SECpro and Mpro
PCBA System Support	I2C GPIO QSPI and GPI Interrupt Support System and Watchdog Timer Support
Operating Temperature Range	5°C ambient to +105°C TJ
Process	TSMC 5 nm
Socket Compatible Packages	5964-Pin FCLGA
