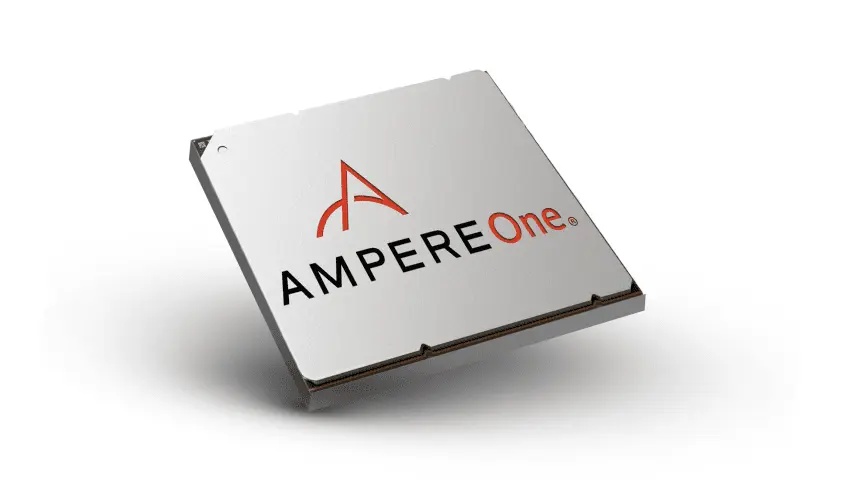

AmpereOne, A144-26X, 2.6GHz, 144C, 64MB, 350W, FCLGA5964

SKU:

A144-26X,AC-30163

kr 24,138.52 24138.52 NOK kr 24,138.52 VAT Excluded

kr 24,138.52 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The AmpereOne A144-26X processor offers robust performance with 144 cores and 64MB cache. It supports extensive memory capacity and PCIe Gen5 connectivity for high-demand applications, combined with advanced security and power management features for enterprise deployment.

Key Features

Supports up to 8TB ECC DDR5 memory
144 high-performance cores
128 lanes of PCIe Gen5
Advanced power and process management
Secure virtualization technology

Key Applications

Cloud-native computing
Enterprise data centers
High-performance computing
Virtualization platforms
AI and machine learning workloads

Description

The AmpereOne A144-26X processor features 144 high-performance cores and supports up to 8TB of DDR5 memory with ECC support, making it ideal for cloud-native and enterprise environments. With 128 PCIe Gen5 lanes and optional CCIX lanes for multi-socket support, it ensures robust connectivity. The processor also includes advanced security features and fine-grained power management to optimize performance. Operating temperature ranges from 5°C ambient to +105°C TJ, powered by TSMC's 5nm process.

Product Specifications

Specification	Details
Core Features
Custom Core Count	96 cores - 192 cores
Private Caches	L2: 2 MB per Core, L1: 16 KB Instruction and 64 KB Data per Core
System Level Cache	64 MB
Memory	8 Channel DDR5 with ECC, Up to 16 DIMMs (2DPC) and 4 TB per socket for a total of 8 TB on a two socket system
Connectivity	128 Lanes PCIe PCIe Gen. 5 (optional 64 lane CCIX for multi-socket support), 32 Controllers Bifurcation to x4
System Features	Interrupt Virtualization IO Virtualization Enterprise RAS: Memory - SECDED and Symbol Based ECC protected; other memory SECDED ECC protected throughout Coherent Mesh Interconnect with distributed snoop filtering
Cloud Native Features
Consistent Frequency	Up to 3.7 GHz
Vector Units	2x128b Vector Units: FP16, Bfloat16, Int8 and Int16
Scalable Management
Power Management	Fine Grained Power Management
Detection	Advanced Droop Detection
Monitors	Process Aging Monitors
Performance Consistency
Management	Mesh Congestion Management
QoS Enforcement	Memory/SLC QoS Enforcement
Virtualization	Nested Virtualization
Other Specifications
Instruction Set Compatibility	Armv8.6+, SBSA 5
Controllers	Independent System and Power Controllers (SECpro and Mpro)
System Support	PCBA System Support: I2C, GPIO, QSPI and GPI Interrupt Support, System and Watchdog Timer Support
Operating Temperature Range	5°C ambient to +105°C TJ
Process	TSMC 5 nm
Socket	5964-Pin FCLGA
