Summary Description

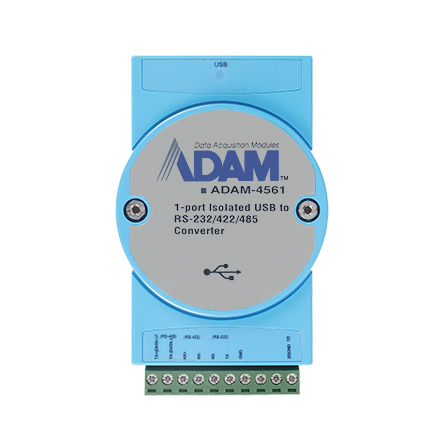

The ADAM-4561-CE is a 1-port isolated converter providing USB to RS-232/422/485 connectivity with plug and play installation. It supports data rates up to 115.2 kbps.
Key Features
- Compliance with USB V1.1
- Supports RS-232/422/485
- Transmission speeds up to 115.2 kbps
- Isolation protection 3000 VDC
- Plug & Play installation
- Automatic RS-485 data flow control
- No external power required
- Wide operating temperature range
- Multiple mounting options
Key Applications
- Industrial Automation
- Device Connectivity
- Data Acquisition
- Field Applications
- Serial to USB Conversion
Description
ADAM-4561-CE facilitates RS-232/422/485 communication with a single isolated port, ideal for industrial settings. It supports automatic data flow control, removing the need for external power supplies, and upholds a 3000 VDC isolation protection. Equipped with various mounting options, it handles temperatures from -10 to 70°C.
Product Specifications
| Specification | Details |
|---|---|
| Communication | |
| Inputs |
|
| Outputs |
|
| Communication Baud Rate |
|
| Communication Distance | RS-232:
RS-422/485:
|
| Asynchronous Data Format | Parity Bit:
Data Bit:
Stop Bit:
|
| Automatic Data Flow Control |
|
| Isolation Protection |
|
| Environment | |
| Input Connector |
|
| Output Connector |
|
| Power Input |
|
| Power Reversal Protection |
|
| Power Consumption |
|
| Dimension |
|
| Mounting |
|
| Operating Temperature |
|
| Storage Temperature |
|
| Operating Humidity |
|
| General | |
| Connectors |
|
| Communications | |
| Converter/Repeater |
|
| Serial Communication | Baud Rate (bps):
|
| Power Requirements | |
| Input Voltage |
|
