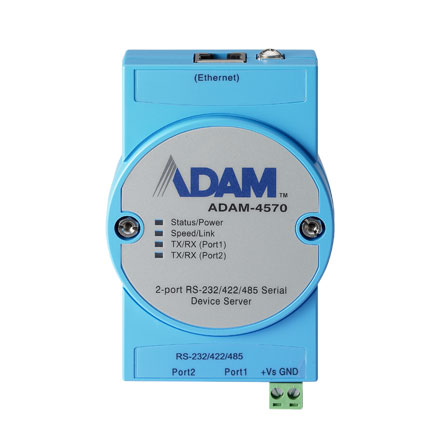

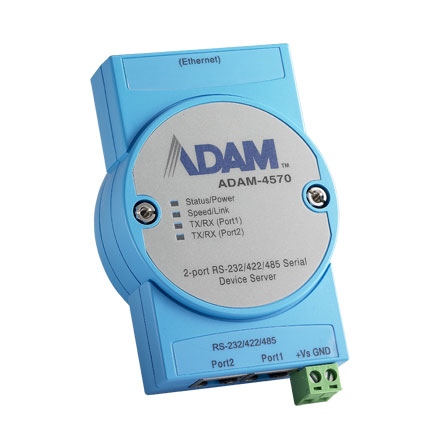

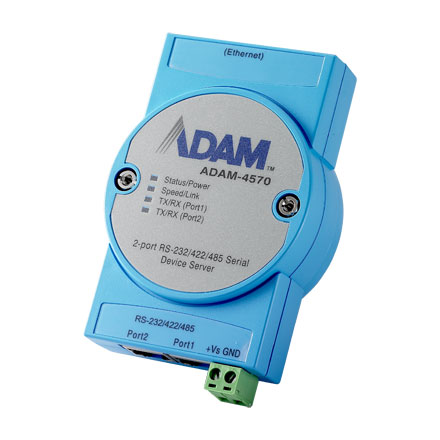

2-port RS-232/422/485 Serial Device Server

SKU: ADAM-4570-CE
GTIN (EAN/UPC): 4719896000846
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13066/image_1920?unique=35ab79b

kr 2,947.32 2947.32 NOK kr 2,947.32 VAT Excluded

kr 2,947.32 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ADAM-4570-CE is a 2-port serial device server supporting RS-232/422/485, with auto-sensing Ethernet capabilities. It ensures fast data transfer up to 921.6 kbps and allows multiple hosts to access serial ports. Ideal for network device integration.

    Key Features

    • Supports RS-232/422/485 communications
    • 10/100 Mbps Ethernet port
    • High-speed baud rate up to 921.6 kbps
    • Virtual COM, TCP/UDP operation modes
    • Access by multiple hosts
    • Auto re-connection function
    • Supports Windows OS drivers

    Key Applications

    • Industrial Automation
    • Networking Integration
    • Remote Device Management
    • Data Acquisition
    • SCADA Systems
    • Distributed Control Systems
    • Building Automation
    • IoT Applications

    Description

    The ADAM-4570-CE serial device server features two serial ports supporting RS-232/422/485 communication, equipped with a flexible 10/100 Mbps Ethernet interface. Offering virtual COM, TCP, and UDP operation modes, it ensures efficient data transfer for industrial applications. The device supports up to 16 TCP clients and provides stable connection with auto-reconnection capabilities. It’s designed for environments requiring robust connectivity solutions with a broad operating temperature and convenient mounting options.

    Product Specifications

    Specification Details
    General
    Ethernet Port Count
    • 1
    Mounting
    • DIN, Panel
    Power
    • 10-30VDC
    Serial Port Count
    • 2
    Serial Type
    • RS-232/422/485
    Temperature
    • -10 to 60C
    Power
    Power Consumption
    • 2.5W
    Power Input (DC)
    • 10 ~ 30 VDC
    Power Operating Current
    • 0.3A @ 12 V
    Serial Communication
    Baud Rate
    • 50 ~ 921.6 Kbps
    RS-232
    • Yes
    RS-422
    • Yes
    RS-485
    • Yes
    Serial Port Connector Type
    • RJ48
    Serial Port Number
    • 2
    Software
    Configuration
    • Windows utility, Web Browser
    Driver
    • Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
    Operation Mode
    • Virtual COM, TCP/UDP server TCP/UDP client
    Environment
    Operating Humidity
    • 5~95% RH
    Operating Temperature
    • -10 ~ 60°C (14 ~ 140°F)
    Storage Temperature
    • -20 ~ 80°C (-4 ~ 176°F)
    Mechanism
    Dimensions (W x H x D)
    • 70 x 112 x 25 mm
    Enclosure (Plastic)
    • Yes
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Mounting (Wall)
    • Yes
    Weight
    • 125 g
    Ethernet Communication
    Ethernet Standard
    • IEEE 802.3 , 802.3u
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 1
    RJ-45 Transmission Speed
    • 10/100 Mbps
    Certification
    EMC
    • CE, FCC
    EMI
    • EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
    EMS
    • EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
    Warranty
    Warranty Period
    • 5 years
