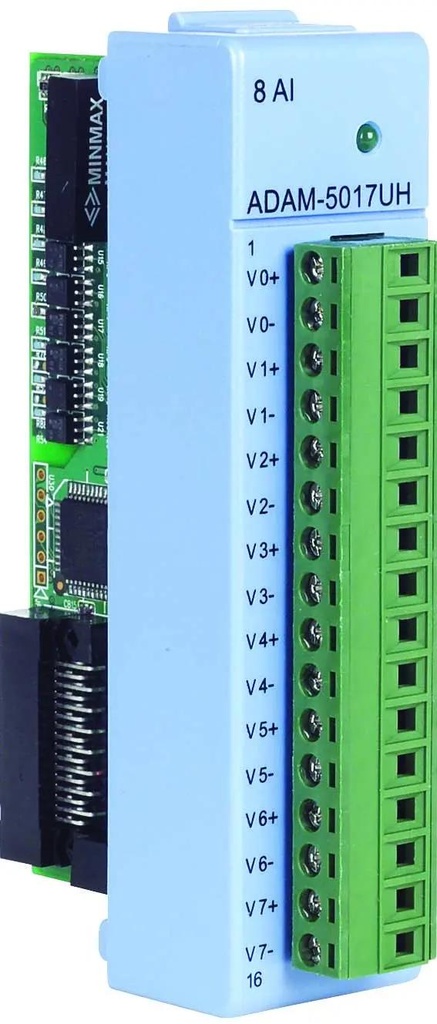

8-channel Ultrahigh Speed Analog Input Module

SKU: ADAM-5017UH-A1E
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13120/image_1920?unique=7c77042

kr 4,838.20 4838.2 NOK kr 4,838.20 VAT Excluded

kr 4,838.20 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The ADAM-5017UH is a 12-bit, 8-channel ultra high-speed analog input module with programmable input ranges. It supports differential inputs and offers isolation voltage up to 3000 VDC.

    Key Features

    • 12-bit Resolution
    • 3000 VDC Isolation
    • 50K Sampling Rate
    • High Accuracy
    • Fault Protection

    Description

    ADAM-5017UH features high accuracy of ±0.1%, effective 12-bit resolution, and input ranges of ±10 V, +0~+10 V, +0~+20 mA, and +4~+20 mA. It includes a 3000 VDC isolation voltage, 50K sampling rate for 8 channels, and fault and overvoltage protection up to ±35 V.

    Product Specifications

    Specification Details
    General Specifications
    Channels
    • 8 Differential
    Accuracy
    • ±0.1% or Better
    Effective Resolution
    • 12-bit
    Input Type
    • mV, V, mA
    Isolation Voltage
    • 3000 VDC
    Sampling Rate
    • 50K Samples Per Second
    Input Range
    Voltage
    • ±10 V, +0 ~ +10 V
    Current
    • +0 ~ +20 mA, +4 ~ +20 mA
    Protection
    Fault/Overvoltage Protection
    • Withstands Overvoltage up to ±35 V
    Physical Characteristics
    Weight
    • 1 kg
    Dimensions
    • 150 × 73 × 50 cm
