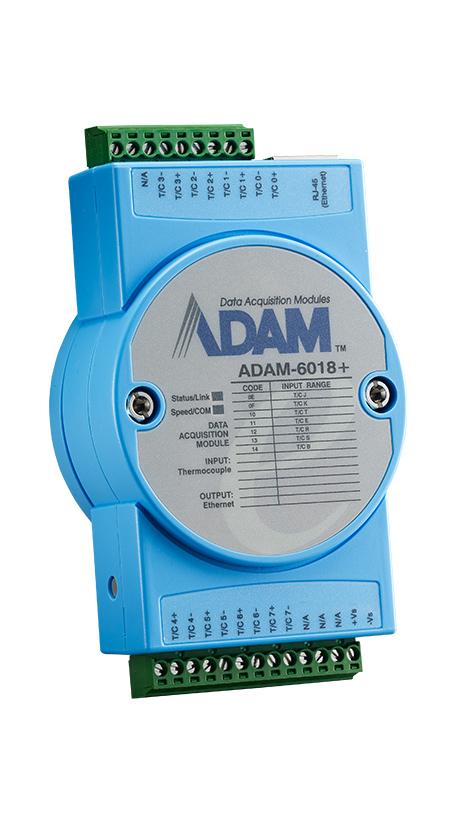

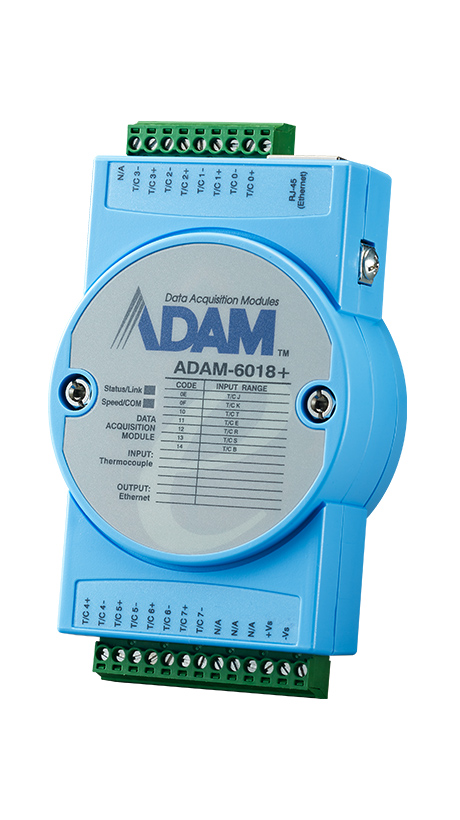

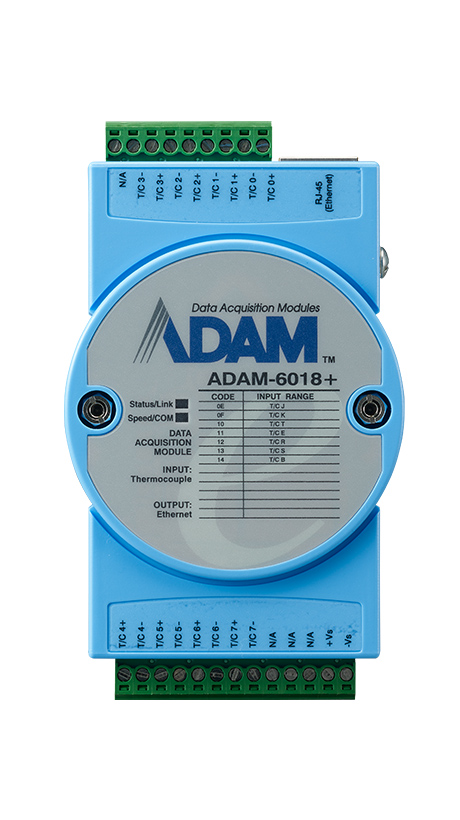

8-ch Isolated Thermocouple Input Module

SKU:	ADAM-6018+-D
GTIN (EAN/UPC):	4719879821000
Brand:	Advantech

kr 4,325.38 4325.38 NOK kr 4,325.38 VAT Excluded

kr 4,325.38 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The ADAM-6018+-D is an 8-channel isolated thermocouple input module featuring MQTT, SNMP, Modbus TCP, and RESTful protocols, offering robust communication capabilities for IoT applications.

Key Features

8ch thermocouple
Supports MQTT, SNMP, Modbus
Peer-to-Peer Function
Watchdog Timer

Key Applications

Industrial Automation
Remote Monitoring
IoT Applications
Environmental Monitoring

Description

The ADAM-6018+-D from Advantech is engineered for precision thermocouple input applications with eight isolated channels. It supports a variety of protocols, including MQTT and Modbus TCP, ensuring versatile integration into IoT systems. With features like a watchdog timer and peer-to-peer mapping, it guarantees reliability and performance across diverse environments. The module also boasts wide operating temperatures and voltage isolation, making it suitable for challenging conditions where standard devices might fail.

Product Specifications

Specification	Details
General
Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Power Requirements
Input Voltage	10~30 VDC
Thermocouple Input
Channels	8
Sample Range	10 S/s (sum)
Temperature Range	Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C)
