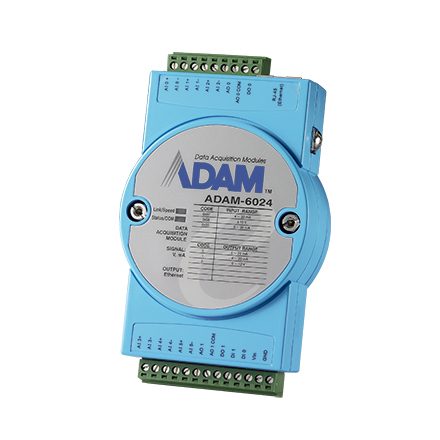

12-ch Isolated Universal I/O Module

SKU: ADAM-6024-D
GTIN (EAN/UPC): 4719879820997
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12881/image_1920?unique=9fe4ff9

kr 6,599.83 6599.83 NOK kr 6,599.83 VAT Excluded

kr 6,599.83 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ADAM-6024-D is a versatile module offering multiple analog and digital I/O channels for IoT applications, supporting various protocols like MQTT and Modbus TCP. It features isolation protection and basic logic control via GCL.

    Key Features

    • 6ch analog input/2ch analog output
    • 2ch digital input/2ch digital output
    • Supports MQTT, SNMP, Modbus TCP
    • Isolation protection of 2000VDC
    • Watchdog timer for system recovery
    • GCL for logic control rules

    Key Applications

    • IoT Connectivity
    • Industrial Automation
    • Remote Monitoring
    • Smart Metering
    • Building Management
    • Control Systems

    Description

    The ADAM-6024-D is a 12-channel isolated universal I/O module, perfect for IoT applications requiring diverse analog and digital input/output options. It supports popular protocols such as MQTT, SNMP, and Modbus TCP, ensuring seamless integration into industrial systems. This module also includes a watchdog timer for system recovery and offers robust isolation protection up to 2000VDC. The built-in GCL function allows the execution of basic logic control tasks.

    Product Specifications

    Specification Details
    Analog Input
    Channels
    • 6
    Input Range
    • ±10 V, 0~20 mA, 4~20 mA
    Input Type
    • V, mA
    Resolution(Bits)
    • 16-bit
    Sampling Rates(S/s)
    • 10 S/s (sum)
    Analog Output
    Channels
    • 2
    Output Ranges
    • 0~10 V, 0~20 mA, 4~20 mA
    Output Type
    • V, mA
    Resolution
    • 12-bit
    General
    Connectors
    • 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
    Communications
    Interface
    • Ethernet
    Isolated Digital Input
    Channels
    • 2
    Input Voltage
    • Dry Contact: Logic level 0: close to GND, Logic level 1: open
    • Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
    Environment
    Isolation Voltage
    • 2,000 VDC
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Isolated Digital Output
    Channels
    • 2
    Output Type
    • Sink
    Output Voltage
    • 0~40 VDC
    Sink Current
    • 100 mA max./channel
    Power Requirements
    Input Voltage
    • 10~30 VDC
