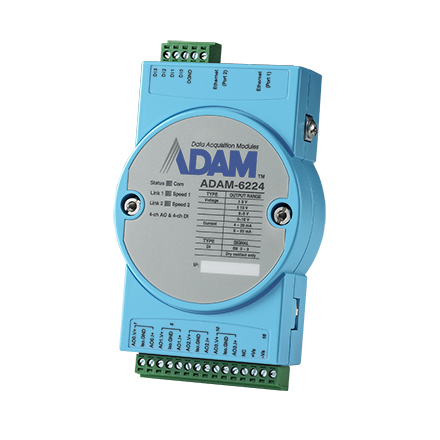

4-ch Isolated Analog Output Modbus TCP Module

SKU:	ADAM-6224-B
GTIN (EAN/UPC):	4719879821055
Brand:	Advantech

kr 5,238.84 5238.84 NOK kr 5,238.84 VAT Excluded

kr 5,238.84 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The ADAM-6224-B is a versatile 4-channel isolated analog output module that supports Modbus TCP. It features daisy chain connection and remote monitoring. Optimized for flexible configuration and multiple protocols.

Key Features

4-ch AO, 4-ch DI, 2-port Ethernet
Daisy chain with auto-bypass
Mobile remote monitoring
User-defined Modbus address
Supports Modbus TCP, TCP/IP

Description

ADAM-6224-B is a 4-channel isolated analog output module ideal for industrial applications. It supports Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, with flexible user-defined Modbus address. Features include intelligent control by Peer-to-Peer and GCL function, web support for XML, HTML 5, and Java Script, and a range of output options. Its robust design ensures reliable performance in harsh environments.

Product Specifications

Specification	Details
Analog Output
Channels	4
Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Output Type	V, mA
Resolution	12-bit
General
Connectors	2 x RJ45, 1 x 15-pin screw terminal, 1 x 5-pin screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Digital Input
Channels	4
Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: open
Environment
Isolation Voltage	2,500 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Power Requirements
Input Voltage	10~30 VDC
