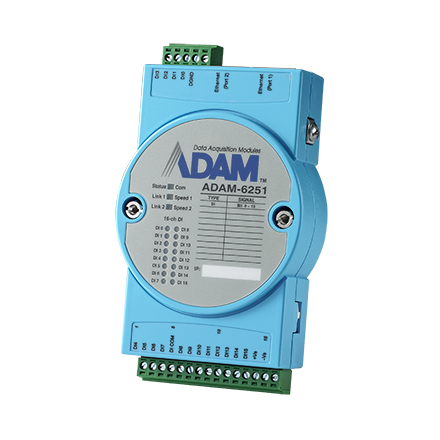

16-ch Isolated Digital Input Modbus TCP Module

SKU: ADAM-6251-B
GTIN (EAN/UPC): 4719879821017
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12883/image_1920?unique=1b7ede1

kr 3,165.80 3165.8 NOK kr 3,165.80 VAT Excluded

kr 3,165.80 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ADAM-6251-B is a versatile and reliable Ethernet I/O module. It enables flexible and easy remote monitoring. Supports multiple protocols for seamless integration.

    Key Features

    • 16-ch DI, 2-port Ethernet
    • Auto-bypass protection
    • Flexible Modbus address
    • Supports Modbus/TCP, UDP, MQTT
    • Web language support

    Description

    The ADAM-6251-B offers an efficient solution for industrial applications, providing 16 isolated digital input channels. With dual Ethernet ports, daisy chain networking, and auto-bypass for network resilience, it supports protocols like Modbus/TCP, MQTT, and SNMP. It's designed to operate under harsh temperatures from -40 to 70 °C.

    Product Specifications

    Specification Details
    General
    Connectors
    • 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
    Protocol
    • Modbus/TCP
    • TCP/IP
    • UDP
    • HTTP
    • DHCP
    • MQTT
    • SNMP
    • ASCII command
    Communications
    Interface
    • Ethernet
    Counter/Encoder Input
    Channels
    • 16
    Max. Input Frequency
    • 3 kHz
    Isolated Digital Input
    Channels
    • 16
    Input Voltage
    • Dry Contact Logic level 1: close to GND Logic level 0: open Wet Contact Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC
    Environment
    Isolation Voltage
    • 2,500 VDC
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Power Requirements
    Input Voltage
    • 10~30 VDC
