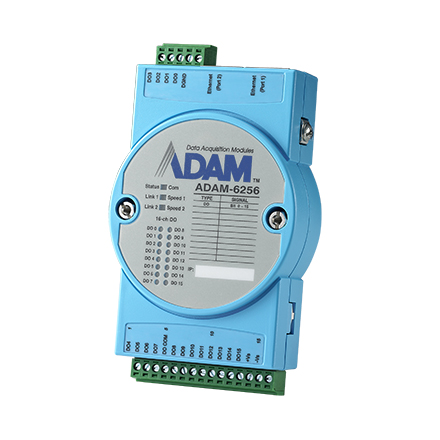

16-ch Isolated Digital Output Modbus TCP Module

SKU: ADAM-6256-B
GTIN (EAN/UPC): 4719879821048
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12886/image_1920?unique=1b7ede1

kr 3,165.80 3165.8 NOK kr 3,165.80 VAT Excluded

kr 3,165.80 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ADAM-6256-B is a 16-channel digital output module with Modbus TCP support. It offers daisy chain connection with auto-bypass protection and supports remote monitoring with mobile devices. Ideal for flexible and intelligent control, it supports multiple protocols including Modbus/TCP, TCP/IP, and MQTT.

    Key Features

    • 16-ch DO, 2-port Ethernet
    • Daisy chain connection
    • Remote monitoring and control
    • User-defined Modbus address
    • Supports Modbus/TCP, TCP/IP, MQTT

    Key Applications

    • Remote Monitoring
    • Control Systems
    • IoT Integrations
    • Industrial Automation
    • Edge Computing

    Description

    The ADAM-6256-B module provides 16 isolated digital outputs with support for Modbus TCP. It facilitates daisy chain networking and includes auto-bypass protection. Designed for remote monitoring and control applications, this module supports flexible user-defined Modbus addresses and intelligent control via Peer-to-Peer and GCL functions. Multiple communication protocols enhance its integration into IoT systems.

    Product Specifications

    Specification Details
    General
    Connectors
    • 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
    Communications
    Interface
    • Ethernet
    Environment
    Isolation Voltage
    • 2,500 VDC
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Isolated Digital Output
    Channels
    • 16
    Output Type
    • Sink
    Output Voltage
    • 10~30 VDC
    Sink Current
    • 100 mA max./channel
    Power Requirements
    Input Voltage
    • 10~30 VDC
