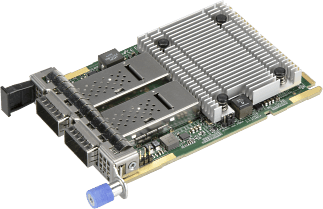

AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508

AOC-A100G-B2CM-O
https://safeconsulting.no/web/image/product.template/12309/image_1920?unique=5e77b27

kr 6,795.05 6795.05 NOK kr 6,795.05

kr 6,795.05

Not Available For Sale

    This combination does not exist.

    Summary Description

    The AIOM Dual Port 100GbE QSFP28 Ethernet Adapter, based on Broadcom BCM57508, offers advanced network connectivity options with features like VXLAN, NVGRE, and RoCE. Ideal for enhancing data center and enterprise networking.

    Key Features

    • Advanced I/O Module (AIOM) Form Factor
    • Broadcom BCM57508 100GbE controller
    • Support for 100GbE, 50GbE and 40GbE
    • Dual QSFP28 connectors
    • RDMA over Converged Ethernet (RoCE)
    • VXLAN, NVGRE and Geneve
    • Broadcom TruFlow Flow Processing Engine
    • Asset Management with Thermal Sensor
    • NC-SI for Remote Management

    Key Applications

    • Data Centers
    • Enterprise Networking
    • High-performance Computing
    • Cloud Environments

    Description

    The AIOM Dual Port 100GbE QSFP28 Ethernet Adapter, utilizing the Broadcom BCM57508 controller, delivers high-density, low-power networking with features such as VXLAN, NVGRE, and RoCE. It enhances network connectivity in data centers and enterprise environments, ensuring robust performance and functionality.

    Product Specifications

    Specification Details
    Advanced I/O Module
    Form Factor
    • Advanced I/O Module (AIOM)
    Networking
    Controller
    • Broadcom BCM57508
    Ports
    • Dual QSFP28
    Speed
    • Support for 100GbE, 50GbE and 40GbE
    Physical
    Compliance
    • RoHS Compliant 6/6
    Power Consumption
    • Maximum 20W
    Dimensions
    • 76mm x 115mm (W x D)
    Storage Conditions
    Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Humidity
    • 90% non-condensing relative humidity at 35°C
    Virtualization Features
    SR-IOV
    • Up to 128 Virtual Functions (VFs)
    Overlay Networks
    • VXLAN, NVGRE, and Geneve
    Flow Processing
    Processing
    • Exact/Wildcard Match Flow Lookup
    Power Savings
    ACPI
    • ACPI compliant power management
    PCI Express
    • Active State Power Management (ASPM)
    Compliance
    Certifications
    • IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Qbb, IEEE 802.1Qaz
