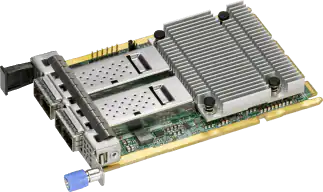

AIOM 2-port 200G QSFP112 based on Broadcom BCM57600,RoHS

AOC-A200G-B2CM-O
https://safeconsulting.no/web/image/product.template/12851/image_1920?unique=c1c7326

kr 12,455.31 12455.31 NOK kr 12,455.31

kr 12,455.31

Not Available For Sale

    This combination does not exist.

    Summary Description

    The AOC-A200G-B2CM is a high-performance, dual-port AIOM network adapter designed to lower data center TCO while offering advanced RoCEv2 support and security features.

    Key Features

    • Broadcom BCM57608 2x200GbE Controller
    • PCIe Gen 5.0 x16 Support
    • Dual QSFP112 Connector
    • Low Power Consumption Design
    • Advanced RoCEv2 Support
    • TruFlow Engine for Flow Processing
    • NC-SI for Remote Management

    Key Applications

    • Data Center Servers
    • Cloud Infrastructure
    • AI and ML Clusters
    • NVMe Storage Solutions
    • 5G Wireless RAN
    • NFV Applications
    • Mobile Edge Computing
    • HPC Environments

    Description

    The Supermicro AOC-A200G-B2CM is a versatile 2-port 200Gb Ethernet adapter with Broadcom BCM57608 technology. It offers advanced features like RoCEv2, TruFlow processing, and high-level security in AIOM form factor, ideal for data centers, cloud environments, and beyond. Designed for low power consumption, this adapter ensures efficient performance for a wide range of professional applications.

    Product Specifications

    Specification Details
    Compliance
    RoHS
    • RoHS Compliant 6/6
    Networking Features
    SerDes
    • 8 SerDes Capable of 100/50G PAM4 and 25G NRZ
    Connectors
    • QSFP112
    Mode Support
    • 2x200GbE, 100/50/25GbE
    Conformance
    • IEEE-1588v2
    • IEEE 802.3x Flow Control
    • IEEE 802.3ad Link Aggregation
    • 802.1Q VLAN Tagging
    Boot Options
    • UEFI Boot
    • iSCSI Boot
    Platform Security Features
    Security
    • HW Secure Boot (RoT)
    • Attestation (SPDM)
    Manageability Features
    Interfaces
    • NC-SI (Not supported in Standby by default)
    • PLDM for Monitoring and FW Update
    Stateless Offload Features
    Offloads
    • TCP, UDP, and IP Checksum Offloads
    • IPv4 and IPv6 Offloads
    Enhancements
    • Receive Segment Coalescing
    • TCP Segmentation Offload
    • Large Receive and Send Offload
    • Receive and Transmit Side Scaling
    NIC Partitioning (NPAR)
    Functions
    • 16 Physical Functions
    Features
    • QoS per Partition
    • Up to 64 MAC/VLAN Filter per Partition
    • Per Partition Statistics Support
    Virtualization Features
    Queues
    • NetQueue
    • VMQueue
    • Multi-Queue
    Support
    • SR-IOV with up to 128 VFs
    • VXLAN, NVGRE, GRE, Geneve, and IP-in-IP
    RDMA over Converged Ethernet (RoCE)
    Protocols
    • RoCEv1
    • RoCEv2
    TruFlow™ Flow Processing
    Capabilities
    • Exact/Wildcard Match Flow Lookup
    • VLAN Insertion/Deletion
    • NAT/NAPT/Mirroring
    Data Center Bridging
    Standards
    • Priority-based Flow Control (PFC; IEEE 802.1Qbb)
    • Enhanced Transmission Selection (ETS; IEEE 802.1Qau)
    • Quantized Congestion Notification (QCN; IEEE 802.1Qau)
    • Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)
    Power Savings
    Management
    • ACPI Compliant Power Management
    • Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
    Power Consumption
    Maximum
    • 19W
    Environmental Conditions
    Temperature
    • Storage: -40°C to 70°C (-40°F to 158°F)
    Humidity
    • 90% Non-Condensing Relative Humidity at 35°C
    Physical Dimensions
    Dimensions
    • 76mm (2.99in) x 115mm (4.52in) (W x D)
