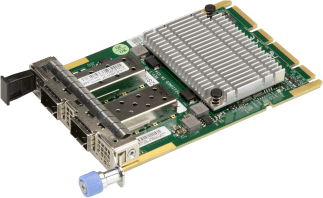

AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS

AOC-A25G-B2S-O
https://safeconsulting.no/web/image/product.template/12252/image_1920?unique=c235eef

kr 2,337.39 2337.39 NOK kr 2,337.39

kr 2,337.39

Not Available For Sale

    This combination does not exist.

    Summary Description

    The AIOM 2-port 25GbE SFP28 adapter, powered by Broadcom BCM57414, offers exceptional network connectivity and low power consumption. It supports advanced features such as VXLAN, NVGRE, and NIC Partitioning, making it perfect for data centers and enterprise environments.

    Key Features

    • Broadcom BCM57414 25GbE controller
    • Advanced I/O Module (AIOM) Form Factor
    • Support for 25GbE and 10GbE Speed
    • Dual SFP28 connectors
    • vSAN/RDMA
    • VXLAN, NVGRE, and Geneve
    • NIC Partitioning (NPAR)
    • Thermal sensor for asset management
    • NC-SI for Remote Management
    • RoHS compliant 6/6

    Key Applications

    • Data Centers
    • Enterprise Networking
    • Advanced I/O Modules
    • High-Performance Networking

    Description

    The AIOM 2-port 25GbE SFP28 adapter from Supermicro features Broadcom BCM57414 for low-power, high-performance networking. Designed for data centers and enterprise environments, this adapter supports VXLAN, NVGRE, and NIC Partitioning, providing unparalleled performance and functionality. Ideal for enhancing network connectivity.

    Product Specifications

    Specification Details
    Specifications
    General
    • Advanced I/O Module (AIOM) Form Factor, Broadcom BCM57414 25GbE controller, 2 SFP28 ports
    Networking Features
    • Jumbo frames (up to 9.6 KB), IEEE 802.3x flow control, IEEE 1588 and Time Sync, IEEE 802.3ad Link Aggregation, Virtual LANs- 802.1q VLAN tagging, Configurable Flow Acceleration, PXE, UEFI, and iSCSI remote boot, vSAN/RDMA
    Stateless Offload Features
    • TCP, UDP and IP checksum offloads, IPv4 and IPv6 offloads, Large Send Offload, Receive Segment Coalescing, TCP Segmentation Offload, Large Receive Offload, Receive Side Scaling (RSS), Transmit Side Scaling (TSS), Accelerate Received Flow Steering (RFS), NIC Partitioning (NPAR): 16 Physical Functions, QoS per partition, Partitioning control via sideband communication, Up to 64 MAC/VLAN filter per partition, Per partition statistics support, Stateless offloads configuration per partition, VEB/VEPA support
    Virtualization Features
    • NetQueue, VMQueue, and Multiqueue, SR-IOV with up to 128 Virtual Functions (VFs), VXLAN, NVGRE, and Geneve
    Flow Processing
    • Exact/Wildcard Match Flow Lookup, VLAN insertion/deletion, NAT/NAPT/Mirroring
    Data Center Bridging
    • Priority-based flow control (PFC; IEEE 802.1Qbb), Enhanced transmission selection (ETS; IEEE 802.1Qau), Quantized Congestion Notification (QCN; IEEE 802.1Qau), Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz), 8 traffic classes per port; fully DCB compliant per 802.1Qbb
    Power Savings
    • ACPI compliant power management, PCI Express Active State Power Management (ASPM), Ultra-low-power mode
    Power Consumption
    • Maximum: 7.7W
    Operating Conditions
    • Storage temperature: -40°C to 70°C (-40°F to 158°F), Storage humidity: 90% non-condensing relative humidity at 35°C
    Physical Dimensions
    • Card PCB dimensions: 76mm x 115mm (W x D)
    Compliance
    • RoHS compliant 6/6
    Available SKUs
    • AOC-A25G-b2S: with 1U height bracket (for Embedded Edge system only), AOC-A25G-b2SM: with 0.5U height pull-tab bracket (for all other AIOM systems), AOC-A25G-b2SB: with 0.5U height internal lock bracket (for Blade system only), AOC-A25G-b2SG: with 0.5U height Narrow bracket (for GrandTwin front IO system only)
