  2. AIOM 2Port 25GbE SFP28,Broadcom BCM57414 W/ 0.5U Bracket

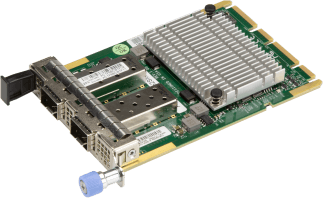

AIOM 2Port 25GbE SFP28,Broadcom BCM57414 W/ 0.5U Bracket

AOC-A25G-B2SM-O
https://safeconsulting.no/web/image/product.template/12251/image_1920?unique=cd75146

kr 2,193.36 2193.36 NOK kr 2,193.36

kr 2,193.36

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The AOC-A25G-b2SM is a versatile 25GbE controller designed for high-density, energy-efficient networking in Data Centers and Enterprise environments. Manufactured by Supermicro with Broadcom® BCM57414 Ethernet controller, it supports advanced features like VXLAN and NIC Partitioning.

    Key Features

    • Advanced I/O Module (AIOM) Form Factor
    • Broadcom® BCM57414 25GbE controller
    • Support for 25GbE and 10GbE Speed
    • Dual SFP28 connectors
    • vSAN/RDMA
    • VXLAN, NVGRE and Geneve
    • NIC Partitioning (NPAR)
    • Broadcom® TruFlow™ flow processing engine
    • Asset Management Features with thermal sensor
    • NC-SI for Remote Management

    Key Applications

    • Data Centers
    • Enterprise Networks

    Description

    Advanced 25Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM). The AOC-A25G-b2S(M/B/G) is a feature-rich and low-power 25GbE controller with VXLAN, NVGRE, and NIC Partitioning for optimum network connectivity in Data Centers and Enterprise environments. Contact your distributor for more information.

    Product Specifications

    Specification Details
    General
    Compliance
    • RoHS, RoHS Compliant 6/6
    Networking Features
    Jumbo Frames
    • Up to 9.6 KB
    Flow Control
    • IEEE 802.3x
    Time Sync
    • IEEE 1588
    Link Aggregation
    • IEEE 802.3ad
    Virtual LANs
    • 802.1q VLAN tagging
    Remote Boot
    • PXE, UEFI, and iSCSI
    Vsan/rdma
    • Yes
    Stateless Offload Features
    Checksum Offloads
    • TCP, UDP and IP
    Offloads
    • IPv4 and IPv6
    Large Send Offload
    • Yes
    Receive Segment Coalescing
    • Yes
    TCP Segmentation Offload
    • Yes
    Large Receive Offload
    • Yes
    RSS
    • Yes
    TSS
    • Yes
    Accelerate Received Flow Steering
    • RFS
    NIC Partitioning
    • NPAR (16 Physical Functions)
    QoS
    • Per partition
    Partition Statistics
    • Yes
    VEB/VEPA Support
    • Yes
    Virtualization Features
    NetQueue
    • Yes
    VMQueue
    • Yes
    Multiqueue
    • Yes
    SR-IOV
    • Up to 128 Virtual Functions (VFs)
    Encapsulation
    • VXLAN, NVGRE, and Geneve
    Edge Virtual Bridging
    • EVB
    Flow Processing
    Flow Lookup
    • Exact/Wildcard Match
    VLAN
    • Insertion/Deletion
    NAT/Mirroring
    • Yes
    Data Center Bridging
    PFC
    • Priority-based flow control (IEEE 802.1Qbb)
    ETS
    • Enhanced transmission selection (IEEE 802.1Qaz)
    QCN
    • Quantized Congestion Notification (IEEE 802.1Qau)
    DCBX
    • Data Center Bridging Capability eXchange (IEEE 802.1Qaz)
    Power Savings
    Management
    • ACPI compliant power management
    PCI Express
    • Active State Power Management (ASPM)
    Ultra-low-power Mode
    • Yes
    Power Consumption
    Maximum
    • 7.7W
    Operating Conditions
    Storage Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Storage Humidity
    • 90% non-condensing relative humidity at 35°C
    Physical Dimensions
    Card PCB Dimensions
    • 76mm x 115mm (W x D)
