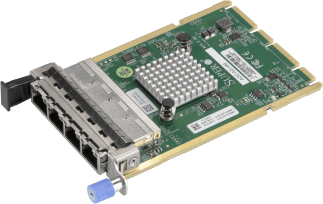

AIOM Quad-Port 1GbE RJ45,based on i350-AM4 W/0.5U Bracke

AOC-AG-I4M-O
https://safeconsulting.no/web/image/product.template/12310/image_1920?unique=cd75146

kr 1,301.02 1301.02 NOK kr 1,301.02

kr 1,301.02

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro AIOM Quad-Port 1GbE RJ45 Adapter is based on the Intel i350 controller, featuring 4 RJ45 ports. It is optimized for datacenter use, offering advanced performance and power management, including NC-SI for secure remote management.

    Key Features

    • Advanced I/O Module Form Factor
    • 4x 1Gbps Ports with RJ45 Connectors
    • Intel i350 GbE Controller
    • Energy Efficient Ethernet
    • Asset Management Features with Thermal Sensor
    • NC-SI for Remote Management

    Key Applications

    • Data Centers
    • Server Remote Management

    Description

    The Supermicro AIOM Quad-Port 1GbE RJ45 Adapter, based on the Intel i350 network controller, offers scalable and efficient networking solutions with 4 RJ45 ports. This adapter is designed for datacenters, providing enhanced performance features and power management technologies while reducing CPU utilization. It includes NC-SI for server remote management, making it a reliable choice for comprehensive networking.

    Product Specifications

    Specification Details
    Compliance
    RoHS
    • RoHS Compliant 6/6
    General
    Form Factor
    • Advanced I/O Module (AIOM)
    Controller
    • Intel i350 GbE
    Ports
    • 4x 1Gbps (4x RJ45 Connectors)
    Networking Features
    Auto-negotiation
    • IEEE 802.3
    Flow Control
    • IEEE 802.3x and 802.3z
    Cross-over Detection
    • Automatic (MDI/MDI-X)
    PHY Specifications
    • 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab Compliant
    Virtualization Features
    SR-IOV
    • PC-SIG
    Packet Forwarding
    • VM to VM Packet Loopback
    Port Partitioning
    • Flexible
    VLAN Support
    • IEEE 802.1q
    Packet Filtering
    • IEEE 802.1q Advanced
    Jumbo Frames
    • Supported
    Power Management and Efficiency
    Energy Efficient Ethernet
    • Supported
    DMA Coalescing
    • Reduces platform power consumption
    ASPM
    • PCI Express Active State Power Management
    LAN Disable Function
    • Supported
    Link Speed Control
    • Low Power Link Up
    Performance Features
    Checksum Offloads
    • TCP/UDP, IPv4 and IPv6
    Interrupts
    • Low Latency
    TCP Segmentation Offload
    • Tx (IPv4, IPv6)
    Receive Side Scaling
    • RSS for Windows, Scalable I/O for Linux
    Intelligent Interrupt Generation
    • Supported
    Management Features
    PXE Support
    • Preboot eXecution Environment
    Iscsi remote boot
    • Supported
    Asset Management
    • Supported on Supermicro platforms
    NC-SI
    • For Remote Management
    OS Support
    Windows Server
    • Supported
    RedHat Linux
    • Supported
    SUSE Linux
    • Supported
    FreeBSD
    • Supported
    UEFI
    • Supported
    VMWare
    • Supported
    Power Consumption
    AOC-AG-i4(M)
    • 4.4W (Max)
    Operating Conditions
    Storage Temperature
    • -40°C to 70°C (-40°F to 158°F)
    Storage Humidity
    • 90% non-condensing at 35°C
    Physical Dimensions
    PCB Dimensions
    • 76mm x 115mm (W x D)
