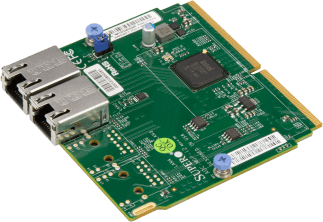

SIOM 2-port GbE RJ45, Intel i350 with 1U bracket (Retail)

AOC-MGP-I2M-O
https://safeconsulting.no/web/image/product.template/6501/image_1920?unique=a415753

kr 758.87 758.87 NOK kr 758.87

kr 758.87

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SIOM 2-Port GbE RJ45 Adapter with Intel i350 is a flexible and scalable networking solution designed for Supermicro servers. It offers enhanced performance and power management technologies, making it ideal for enterprise environments.

    Key Features

    • Intel i350 GbE Controller
    • Dual RJ45 Ports
    • Super I/O Module (SIOM) Form Factor
    • Energy Efficient Ethernet (EEE)
    • Low Power Link Up
    • Advanced Virtualization Features
    • Supports Multiple Operating Systems
    • Supports NC-SI for Remote Management

    Key Applications

    • Enterprise Networking
    • Data Centers
    • Cloud Computing
    • High-Performance Computing (HPC)

    Description

    The Ultimate Ethernet Controllers in Supermicro Super I/O Module Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MGP-i2 is the most flexible and scalable GbE SIOM controller. Based on Intel GbE network controller i350, it is designed with performance enhancing features and power management technologies. This product is only available through Supermicro.

    Product Specifications

    Specification Details
    Compliance
    RoHS Compliant
    • 6/6, Pb Free
    Compatibility Matrices
    Servers
    • Supermicro Servers with SIOM support
    Specifications
    General
    • Intel® i350 GbE Controller
    • Super I/O Module (SIOM) Form Factor
    • Dual RJ45 Ports
    • Intel® I/O Acceleration Technology (Intel® I/OAT)
    Ethernet Features
    • IEEE 802.3 auto-negotiation for speed, duplex, and flow control
    • IEEE 802.3x and 802.3z compliant flow control support
    • Automatic cross-over detection function (MDI/MDI-X)
    • 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant
    • IEEE 1588 protocol and 802.1AS implementation
    Power Management and Efficiency
    • Energy Efficient Ethernet (EEE)
    • DMA Coalescing reduces platform power consumption
    • Active State Power Management (ASPM) support
    • LAN disable function
    • MAC Power Management controls
    • Low Power Link Up
    • Link Speed Control
    Virtualization Features
    • PC-SIG SR-IOV support
    • VM to VM Packet forwarding (Packet Loopback)
    • Flexible Port Partitioning
    • IEEE 802.1q VLAN support
    • IEEE 802.1q advanced packet filtering
    • Jumbo Frames support
    Performance Features
    • TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage
    • Low Latency Interrupts
    • Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
    • Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
    • Intelligent interrupt generation
    Management Features
    • Preboot eXecution Environment (PXE) support
    • iSCSI Remote Boot Support
    • Asset Management support on Supermicro® platforms
    • Controller asset tags such as part number, revision, serial number, and MAC addresses
    • NC-SI for remote management
    OS Support
    • Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
    • Windows 8.1, 8, 7 (x64 Edition)
    • RedHat Linux
    • SUSE Linux
    • FreeBSD
    • UEFI
    • VMWare
    Cables Support
    • RJ45 Category 5/5e up to 100m
    Power Consumption
    • Typical 3W, Maximum 3.7W
    Operating Conditions
    • Operating temperature: 0°C to 55°C (32°F to 131°F)
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C
    Physical Dimensions
    • Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
    Supported Platforms
    • Supermicro® motherboards with Super I/O Module slot
    • Supermicro® server systems with Super I/O Module slot
    Available SKUs
    AOC-MGP-i2Bracket:
    • BKT-0086L

    Description:
    • 2-port Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)

    AOC-MGP-i2MBracket:
    • BKT-0085L

    Description:
    • 2-port Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)
