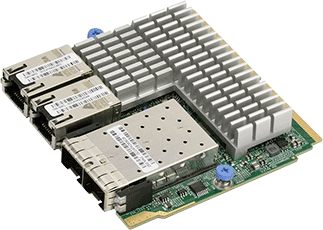

SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail)

Name: SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail)
Brand: supermicro
SKU: AOC-MH25G-M2S2T-O
Price: 3535.25 NOK
Availability: BackOrder

SKU:

AOC-MH25G-M2S2T-O

kr 3,535.25 3535.25 NOK kr 3,535.25

kr 3,535.25

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The AOC-MH25G-m2S2T by Supermicro is a versatile 25GbE controller with dual 25GbE SFP28 and dual 10GbE RJ45 ports. Based on Mellanox ConnectX-4 Lx EN, it is ideal for data centers and cloud deployments, offering cost-effective upgrades from 10GbE to 25GbE.

Key Features

Flexible Connectivity
25GbE SFP28 and 10GbE RJ45 Ports
Based on Mellanox ConnectX-4 Lx EN
Cost-Effective Upgrade from 10GbE
Supports NC-SI for Remote Management

Key Applications

Data Center Networking
Cloud Deployments
High-Speed Data Transfer
Server Networking

Description

The Supermicro AOC-MH25G-m2S2T is a feature-rich 25GbE controller based on Mellanox ConnectX-4 Lx EN. It provides flexible connectivity with 25GbE SFP28 and 10GbE RJ45 ports. Ideal for data centers and cloud deployments, it offers cost-effective upgrades from 10GbE to 25GbE. The controller also supports 10GbE RJ45 connectivity based on the Intel X550 controller, including NC-SI for Remote Management. Only available through Supermicro.

Product Specifications

Specification	Details
Controller Specifications
General	Super I/O Module (SIOM) Form Factor; Mellanox® ConnectX-4 Lx EN 25GbE controller
Ports	Dual SFP28 connectors with speed up to 25Gbps per port; Dual RJ45 connectors with speed up to 10Gbps per port
Cables Support	25GbE SFP28: Direct attach copper cables and Fiber-optic cables (with required optional transceivers); 10GbE RJ45: RJ-45 Category-6 up to 55m; Category-6A up to 100m
Power Consumption	Maximum 25W
Operating Conditions	Operating temperature: 0°C to 55°C (32°F to 131°F); Storage temperature: -40°C to 70°C (-40°F to 158°F); Storage humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions	Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
Supported Platforms	Supermicro® motherboards with SIOM slot; Supermicro® server systems with SIOM slot
Compliance
Regulations	RoHS; RoHS Compliant 6/6, Pb Free
25GbE SFP28 Specifications
Ethernet	25GbE / 10GbE / 1GbE; IEEE 802.3ad, 802.1AX Link Aggregation; IEEE 802.1Q, 802.1P VLAN tags and priority; IEEE 1588v2; Jumbo frames support (9.6KB)
10GbE RJ45 Specifications
I/O Features	MXI-X Support; Intel Flow Director; Low Latency; Multiple Queues; 64 Tx and Rx per Port; Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities; Tx TCP Segmentation Offload (IPv4, IPv6)
Network Features	Jumbo frames up to 15.5KB; IEEE 802.3az Energy Efficient Ethernet (EEE)
Available SKUs
SKU	AOC-MH25G-m2S2T
Description	2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)
Bracket	BKT-0112L
SKU	AOC-MH25G-m2S2TM
Description	2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)
Bracket	BKT-0113L
General
Compatibility Matrices	Supermicro Servers with SIOM support; Networking Cables & Transceivers

Optional Part List

Part Number	Quantity	Description
SFP28 Copper Cable
CBL-NTWK-0944-MS28C05M	-	0.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C10M	-	1m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C15M	-	1.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C20M	-	2m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C25M	-	2.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C30M	-	3m 25GbE SFP28 to SFP28, Passive
SFP28 Active Optical Cable
CBL-SFP28AOC-7M-EM	-	7m 25GbE SFP28 Active Optical Cable, Active, Pull
CBL-SFP28AOC-10M-EM	-	10m 25GbE SFP28 Active Optical Cable, Active, Pull
SFP28 Transceiver Module
AOM-SFP28-25GbE-SR-1-MLN	-	SFP28 Transceiver module 25G, 850nm, MMF, LC
